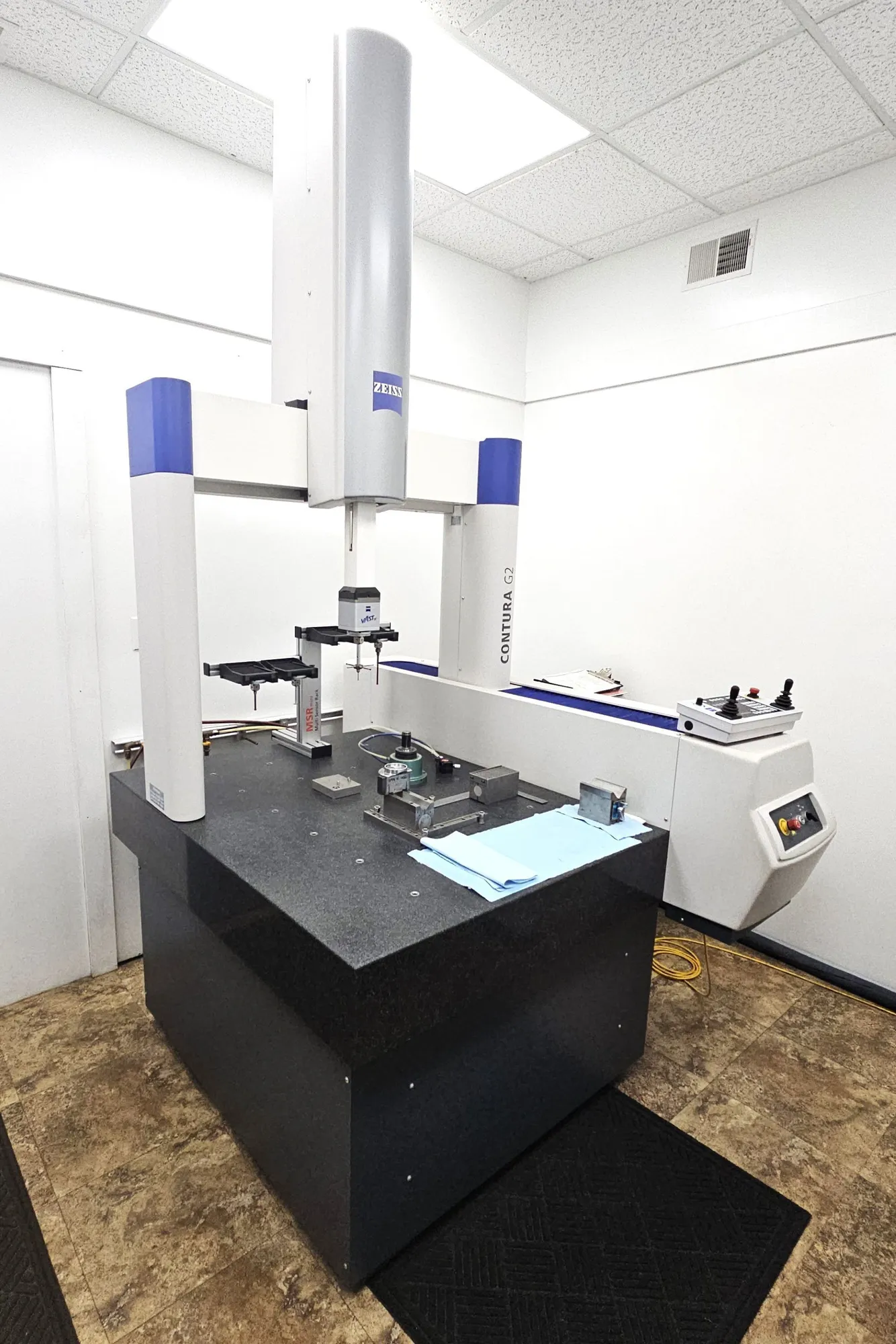

USED 2009 ZEISS 7/10/6

The Zeiss Contura G2 is a Coordinate Measuring Machine (CMM) used for measuring complex features and parts with multiple angles that require very small stylus. The machine has a scanning measuring rate of up to 200 points/s. The measuring range is 700x700x600 mm. The maximum stylus length is 500 mm, maximum weight is 500 g including stylus adapter, and minimum stylus tip diameter is 0.5 mm. The machine weighs 1278 Kg and can handle a maximum workpiece weight of 560 Kg.

CONTURA G2 RDS VAST XXT is optimally used for measuring complex features and parts with multiple angles that require very small stylus, as ZEISS RDS articulating probe holder can r…

Dynamic ZEISS RDS articulating unit for optical and contact sensors. Front-to-back and lateral tilt range of ±180°, large measuring range, rotation increments of 2.5°, CAA correction for automatic qualification of all …
