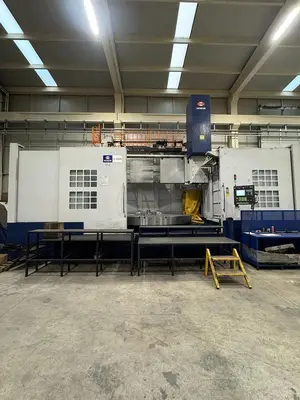

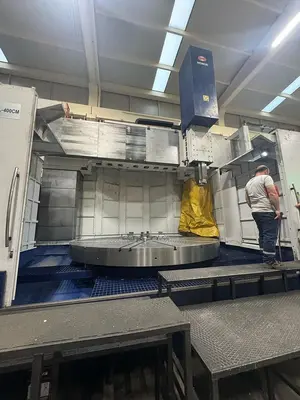

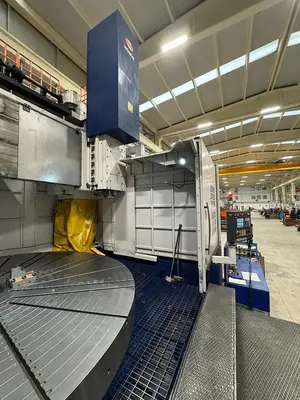

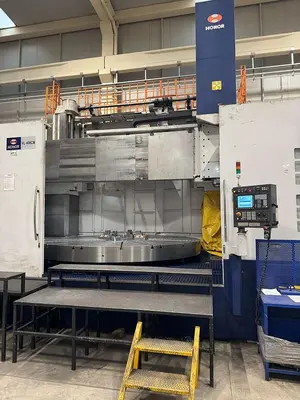

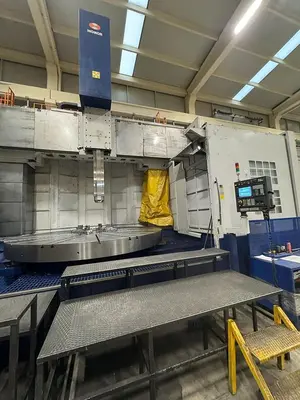

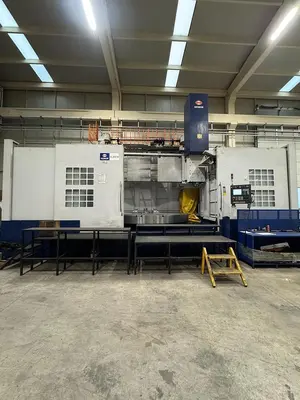

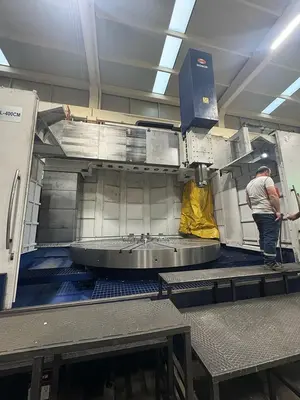

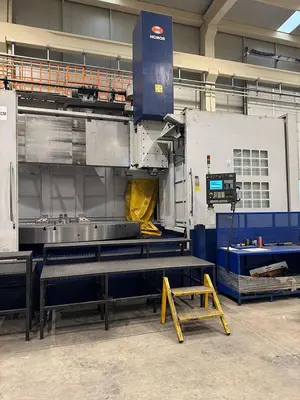

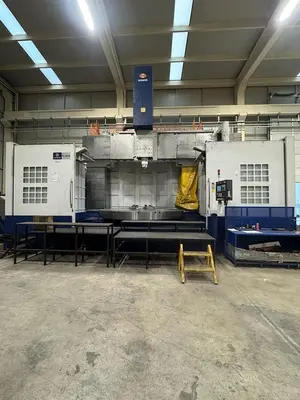

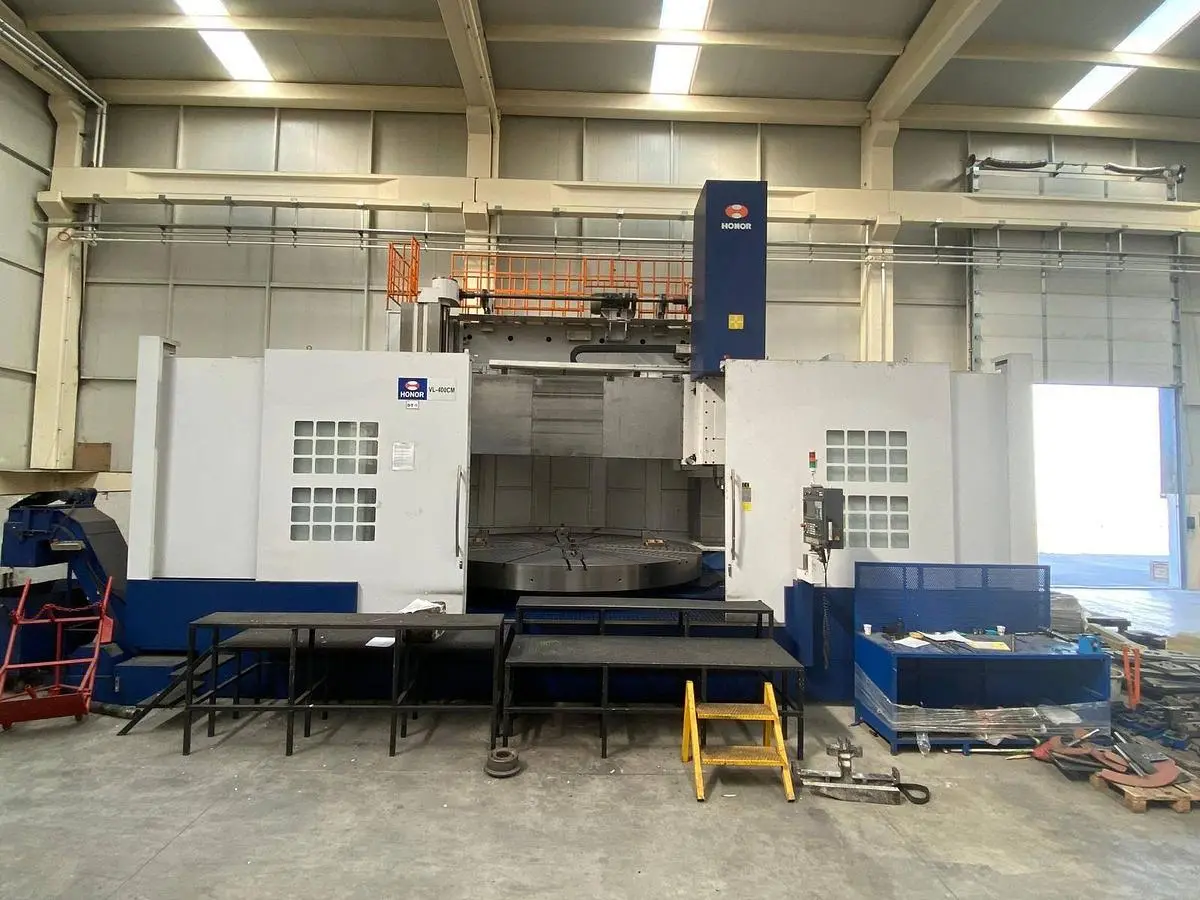

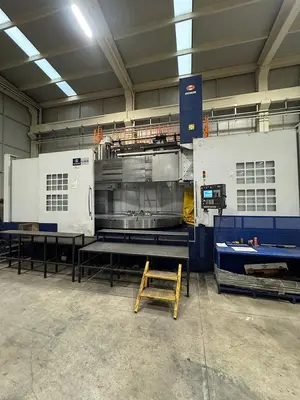

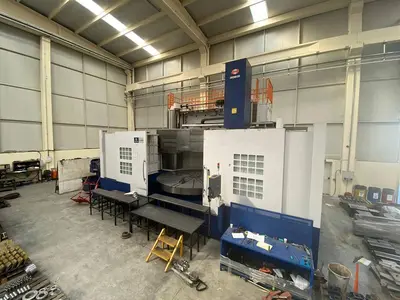

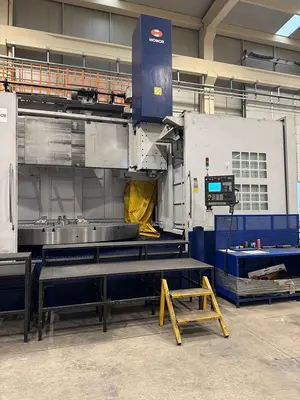

USED 2018 HONOR SEIKI VL400CM
Overview
Description

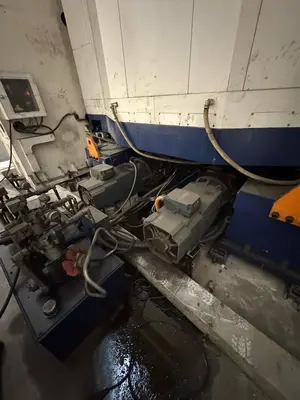

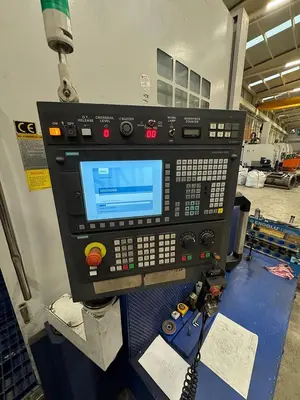

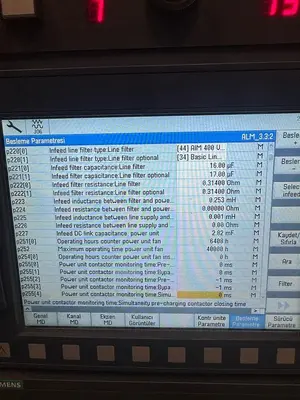

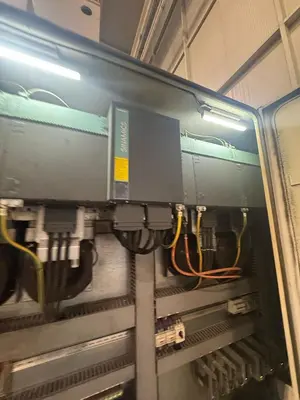

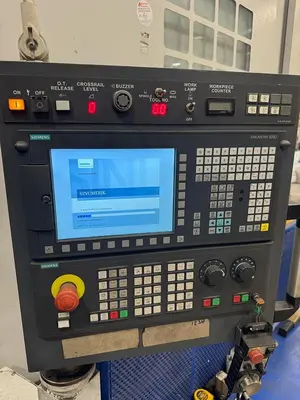

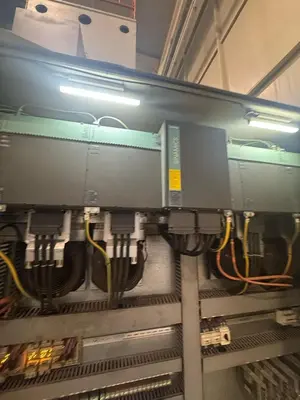

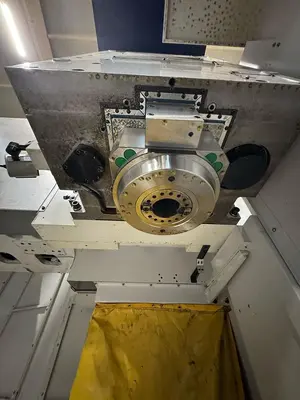

Siemens SINUMERIK 840DLive Spindle & Table C-AxisATC (Automatic tool change)Chip ConveyorComplete Splash GuardCoolant System with TankHigh Pressure Coolant Through Spindle, 10 barAuto Lubrication for all Slides and Ball ScrewsAuto Lubrication Chiller for Gear & BearingAir Conditioner for Electrical CabinetHydraulic Unit (Air Cooling )Work LightWarning Light(R/Y/G)Linear Scale of X - axis (Heidenheim)Linear Scale of Z - axis, travel 1500 (Heidenheim)
Specifications
Manufacturer: Honor Seiki
Model: VL-400CM
Year: 2018
Condition: Used
Stock Number: 11208

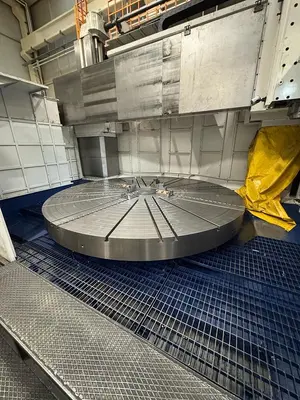

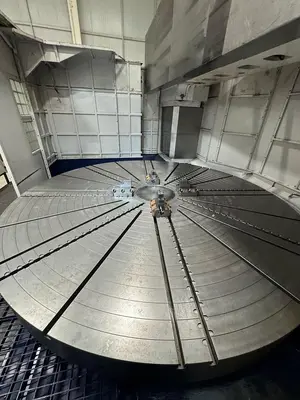

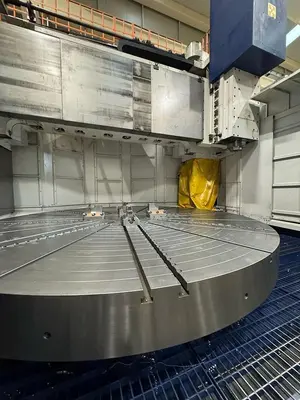

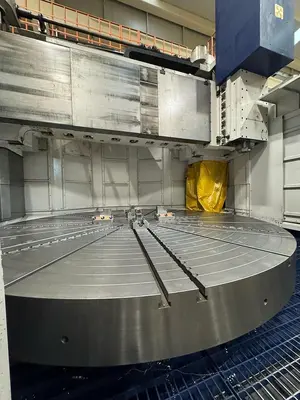

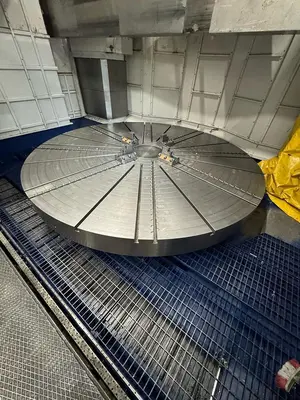

Table diameter: 4,000 mm
Swing: 4,500 mm
Turning height: 3,000 mm
Table capacity: 35 Ton
Table turn speed: 85 rpm
Live spindle speed: 2,250 rpm
Distance faceplate crossbeam support: 820 - 3,320 mm
Rapid traverse X/Z: 10 m/min
Spindle motor drive - AC: 60/75/100 kW
Crossbar adjustment: 300 x 300 mm
Machine dimensions: 9,500 x 7,000 mm
Machine height: 8,000/9,100 mm
Machine weight: 115 Ton
