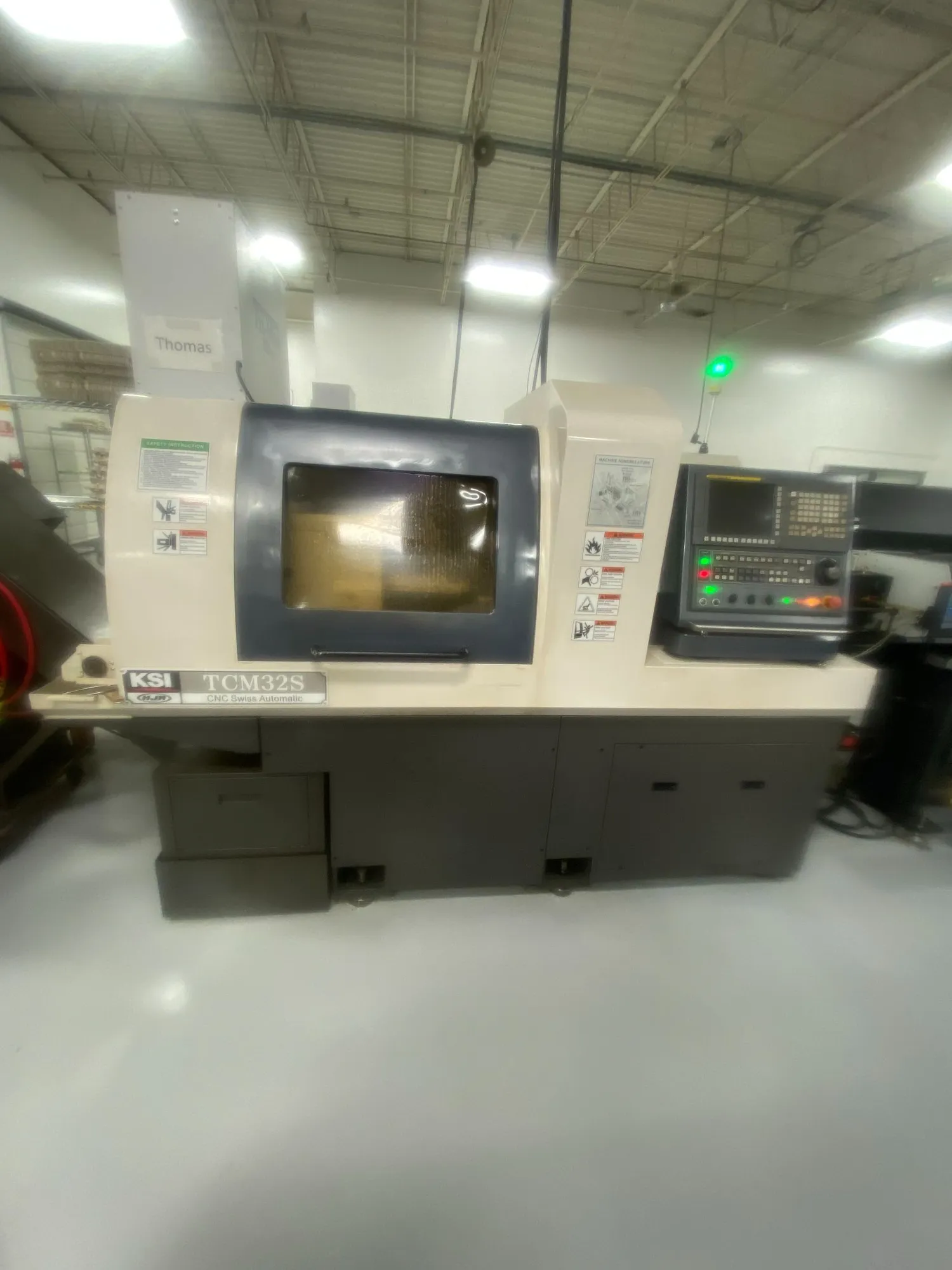

KSI TCM 32S CNC Swiss Lathe, New in 2018
| Capacity | 1.25" | 31.75 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # Axis | 7 | 7 |
| Swiss, Chucker or Convertible? | Swiss | Swiss |
| Control | CNC (Fanuc Oi-TF) | CNC (Fanuc Oi-TF) |
| Dimensions | 118" x 57" x 70" | 118" x 57" x 70" |
| Weight | 7,716 lbs | 7,716 lbs |
General Specifications:
Machining Diameter (Main/Sub): 1.25 (32mm)

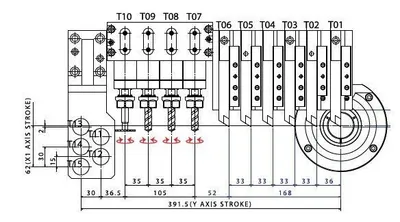

Tools
Number of ID Tools: 6 (ER16)
Number of OD Tools: 4 (ER16)
Number of Front Tools: 5
Number of Back End Tools: 4 (ER16 / 2 Fixed / 2 Live)
Main Drill/Tap: 10mm / M8
Cross
Drilling: 8mm (ER16)
Tapping: M6 (ER16)
Slotting: Width 1.5mm x Depth 4mm

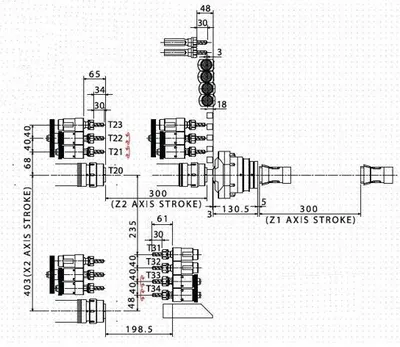

Back End
Drilling (Fixed/Live): 10mm / 8mm (ER16)
Tapping (Fixed/Live): M8 / M6 (ER16)
Main Spindle Speed: 10,000 RPM
Main Spindle Motor: 4.9 HP
Sub-Spindle Speed: 8,000 RPM
Sub-Spindle Motor: 2.9 HP
Cross Motor Speed: 8,000 RPM
Cross Motor Power: 1.34 HP
Back End Motor Speed: 5,000 RPM
Back End Motor Power: 1.34 HP
Machine Dimensions: 118" x 57" x 70"
Machine Weight: 7,716 lbs
Fanuc Oi-TF CNC Control
Vito "BLoader" Magazine Barfeed
LNS Turbo MH250 Chip Conveyor
MP System V2 (4 Port) High Pressure System
Tri-Mist 850 G2 Mist Collector
KSI Installation Available - Includes 2-Day Install and 3-Day Training - POR
1-Year Fanuc Warranty Available - POR
