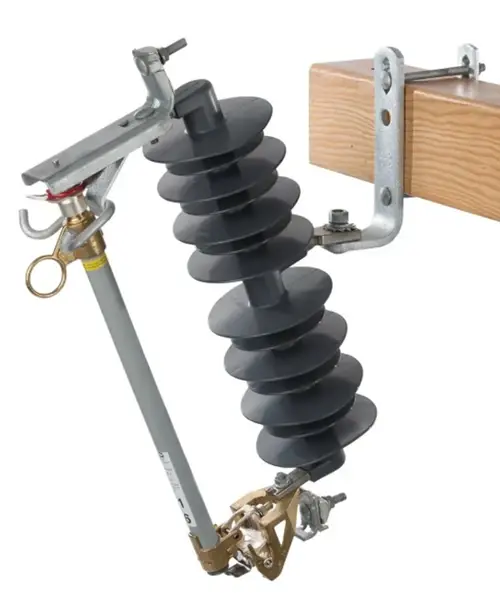

Chance Hubbell CP710112PB Type C Standard Cutout, 15 kV Operating, 100 A [New]

15 kV, 110 kV BIL, Standard Type C Polymer Cutout with a 100A, 10kAIC fuseholder, parallel-groove connector and a NEMA "B" crossarm bracket.

Protect your distribution system or other items such as transformers and capacitor banks with Chance Type C Polymer Standard Cutouts. Chance Type C Polymer Standard cutouts are available for application on system voltages up to 36kV and 170kV BIL. Chance Type C Polymer Standard Cutouts can be fused up to 200A and use Universal Style fuse links so Coordination with other devices is easily achievable. ChanceType C Polymer Standard Cutouts can also be a sectionalizing device and function much like a disconnect switch when fitted with a 300A disconnect blade. Chance Type C Polymer Standard Cutouts are interchangeable with S&C(MPS ) Type XS and ABB Type ICX cutouts within the same voltage class. Chance Type C Polymer Standard Cutouts use ESP Enhanced Silicone Polymer as insulating material and use a synthetic fuse holder liner material for consistent arc quenching during fault current interruption or load breaking. Chance: The Brand and Quality You Can Trust!!

Fully Compliant with ANSI/IEEE C37.41 & C37.42 - 2016

Interchangeable with ABB Type ICX & S&C(MPS) Type XS

Single Vent Solid Cap Design

Uses Universal Style Fuse Links

Synthetic Arc Quenching Fuse Holder Liner Material

ESP ( Enhanced Silicone Polymer ) Insulating Material

TDG ( Thermal Diffusion Galvanization ) Insulator Assembly Castings. Chance. Hubbell. CP710112PB.
