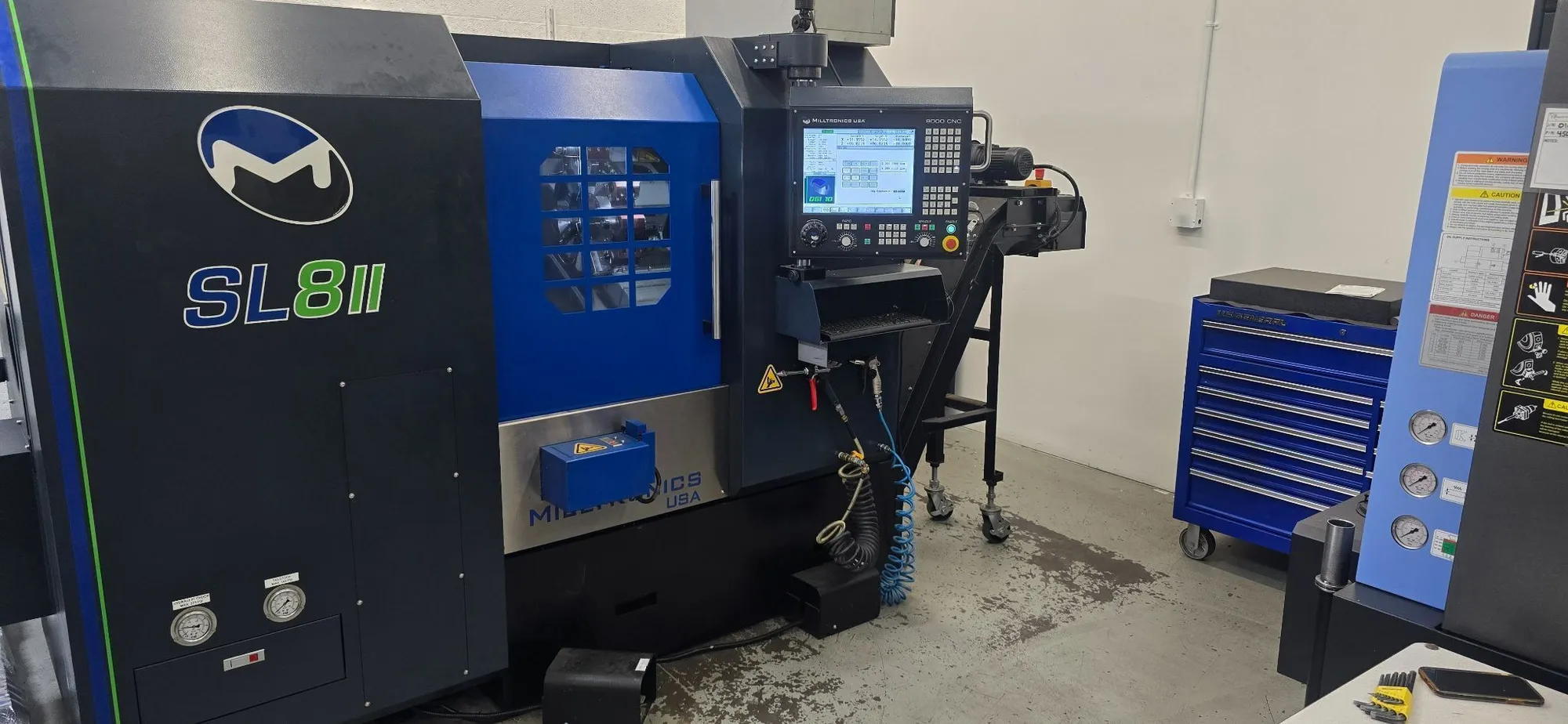

2019 Milltronics SL8-II CNC Turning Center with PC-9000 Control, 8" Chuck, Tool Setter, Programmable Tailstock, Parts Catcher, Mist Collector, and Chip Conveyor.
| Swing | 21.7" | 551.18 mm |
| Machining Length | 21" | 533.4 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 14" | 355.6 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Milltronics PC-900) | CNC (Milltronics PC-900) |
| Dimensions | 143" x 99" x 84" | 143" x 99" x 84" |
| Weight | 8,885 LBS | 8,885 LBS |
Swing Over Bed.....................21.7"
Swing Over Cross...................11.8"
Max. Turning Diameter..............14"
Max. Turning Length................21"
X-Axis Travel......................8"
Z-Axis Travel......................21"
Spindle Motor......................30 HP
Spindle Nose.......................A2-6
Draw Tube Diameter.................2.54"
Spindle Speed......................4,000 RPM
Spindle Torque.....................161 ft-lbs
Rapid Traverse Rate................1182 IPM
Tool Capacity......................12
Tooling Size.......................1"
Boring Bar Capacity................1.5"
Tailstock Quill Travel.............3.46"
Tailstock Quill Diameter...........2.28"
Tailstock Quill Taper..............MT4
Electrics..........................208-240 Volts / 3 Phase
Operating Footprint................143" x 99" x 84"
Machine Weight.....................8,885 LBS
Milltronics PC-9000 CNC Control
8" 3-Jaw Chuck
Tool Presetter
Programmable Tailstock
Parts Catcher
Mist Collector
Chip Conveyor
**ONLY 432 MACHINE HOURS**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
