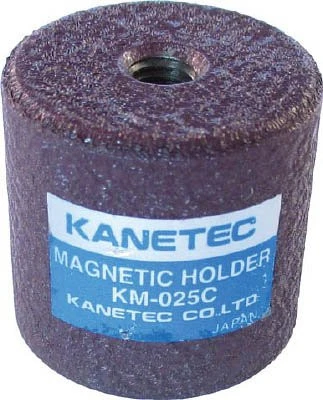

Kanetec KM-025C KM Type Permanent Magnet Holder, 26mm OD x 25mm H [New]

Screw Hole for Mounting: M6 Depth 8 Pitch 1.0. Shape: Round. Attraction Froce (Range)(N): 90.1~100.0. Attraction Force (Specify)(N): 100. Magnet Type (Material): Neodymium Magnet. Can be used for a wide range of applications, such as embedment in press tools and metal molds, mounting on jigs, and holding of works. Selectable from five different specifications for the following five aspects according to applications: outer diameter tolerance, plating, painting, outer knurls, and stainless steel. Standardized specifications for outer diameter tolerance h allows the holder to be used for metal molds. The screw holes made on the back widen the range of its applications. SPECIFICATIONS: Shape: Round. Attraction Froce (Range)(N): 90.1~100.0. Attraction Force (Specify)(N): 100. Magnet Type (Material): Neodymium Magnet. O.D.(mm): 26. Height(mm): 25. Screw Hole for Mounting: M6 Depth 8 Pitch 1.0. Holder Specifications: Coating Specifications.. Kanetec. Kanetec. KM025C.
