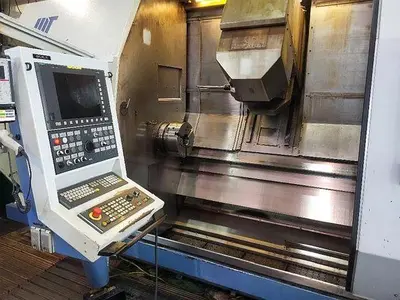

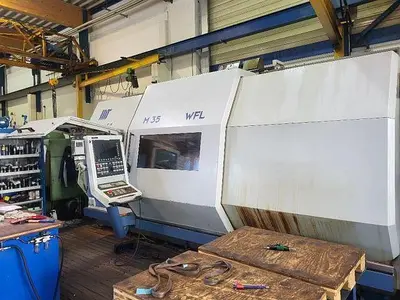

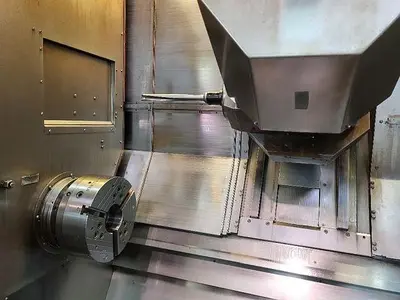

USED 2008 WFL MILLTURN M 35
Overview
SIEMENS 840D SL CNC Control
Updates to Machine:
2023 B-axis overhauled

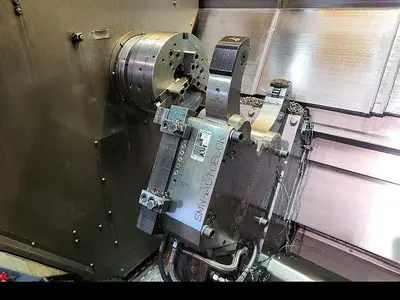

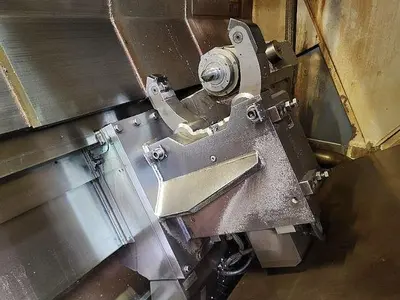

2024 SMW steady rest SR5-ZSW
2025 Rotary union replaced

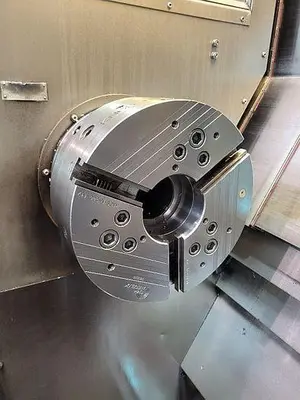

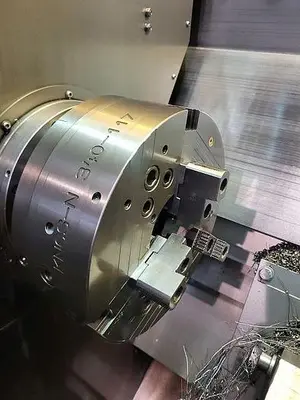

3-Jaw Autoblok 340-117 chuck
Steady Design - Offen
Steady Diameter (min/max) - 45 / 310 mm

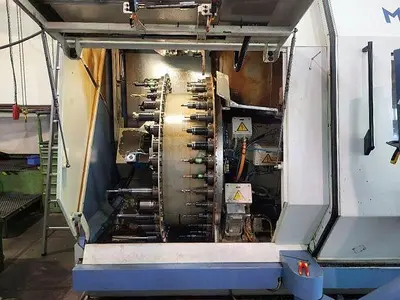

80 Position Automatic Tool Changer - Live Positions
ATTACHMENTS (TURNING)
self-centering chuck 1
clamping diameter 340 mm
tailstock optional
steadies (number) 1
chip conveyor yes
coolant unit yes

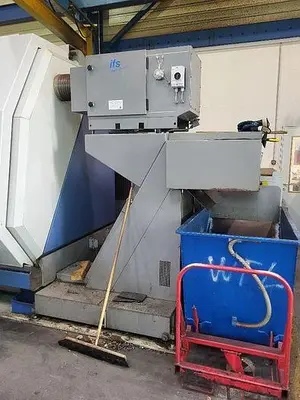

aspiration unit yes
hydraulic system yes
European CE standards yes
number of spindles 1
live positions yes
number of c-axes 1
number of y-axes 1
number of b-axes 1
Operating hours:
NC program runs: 28,620h
Spindle running: 21,900h
Specs
Manufacturer: WFL
Model: MillTurn M 35
Year: 2008
Condition: Used
Stock Number: 11199
Between centers: 2,000 mm
Swing diameter: 520 mm
Bar diameter: 77 mm
Workpiece length: 2,000 mm
Workpiece weight: 1,000 kg
Main spindle speeds: 4,000 rpm
Spindle drive power S6 40%: 33 kW
Spindle drive power S1 100%: 45 kW
Spindle torque S6 40%: 630 Nm
C-axis: Yes
X axis travel: 600 mm
Y axis travel: 250 mm
Rotating range B-axis up to: 220°
Rapid traverse z axis: 40 m/min
Rapid traverse x axis: 30 m/min
Rapid traverse y axis: 15 m/min

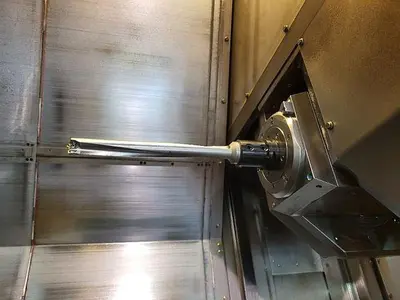

Tool fixture: Milling Spindle
Number of tool positions (total): 80
Number of live positions: 80
Rotation speed, max: 9,000 rpm
Electrics: 400 V / 50 Hz
Machine dimensions: 7,700 x 4,200 x 3,300 mm
Machine weight: 17,000 kg
