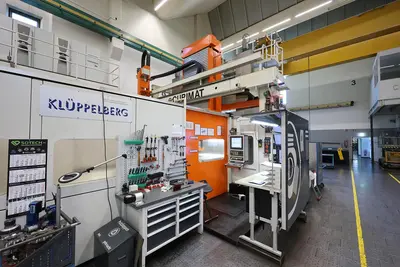

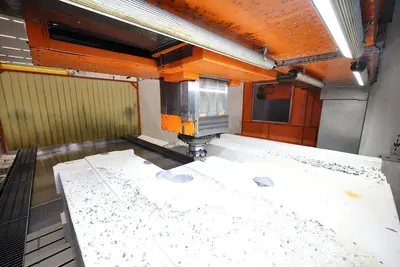

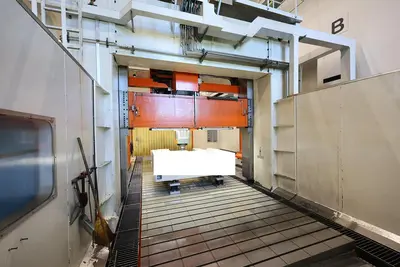

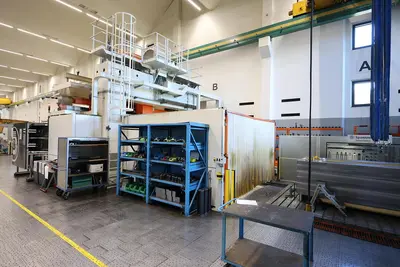

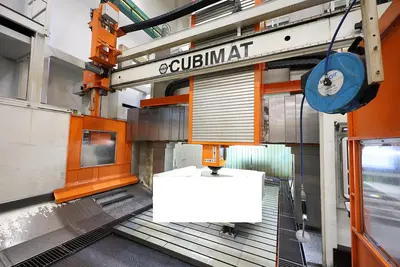

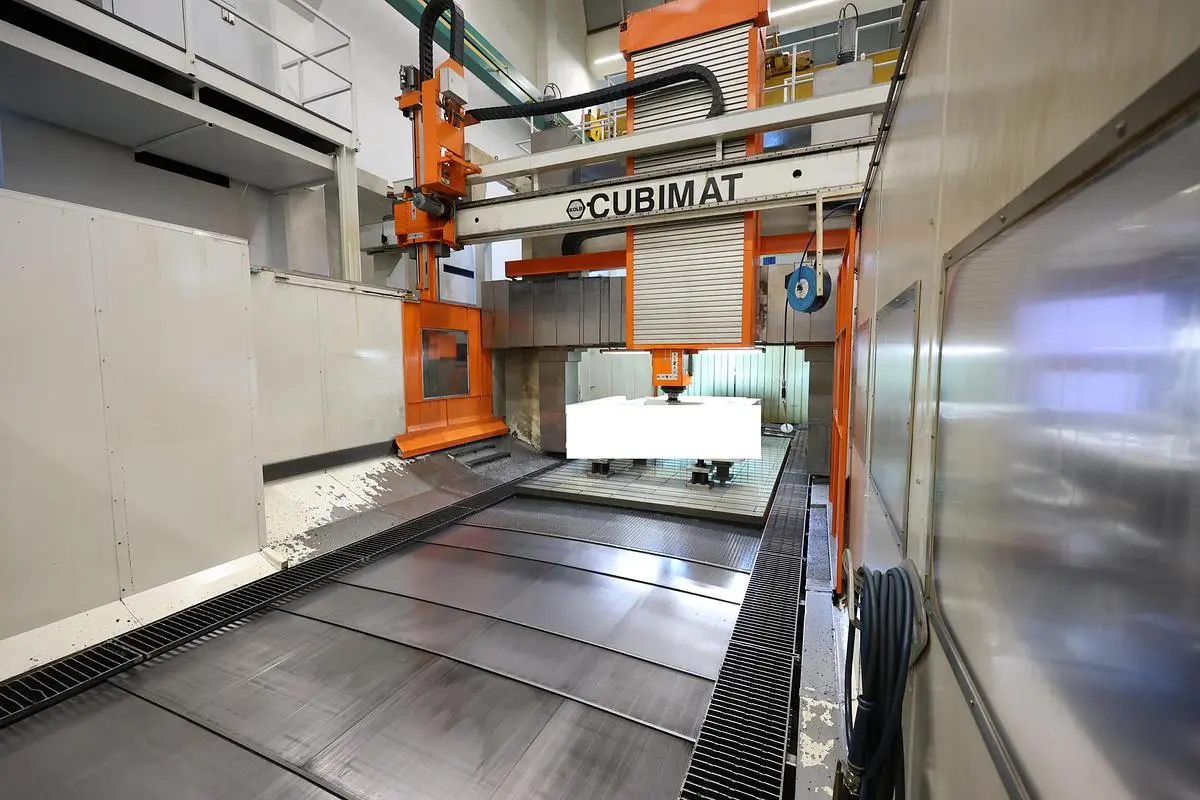

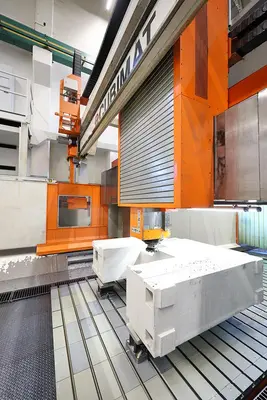

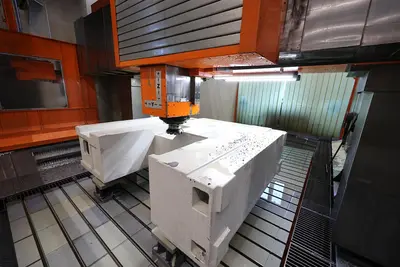

USED 2020 KOLB CUBIMAT VD
Overview
In Almost NEW Condition
Complete Rebuild & Retrofit in 2020 - Fully Modernized

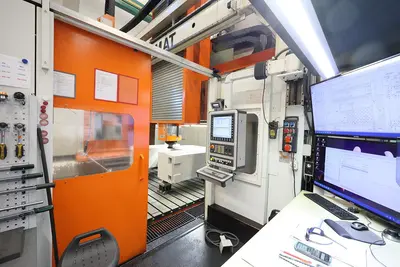

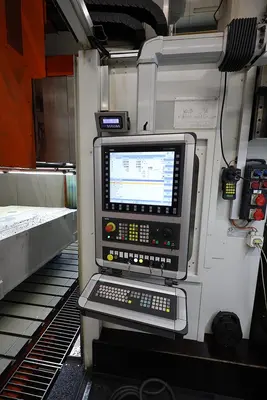

Siemens Sinumerik 840D CNC Control

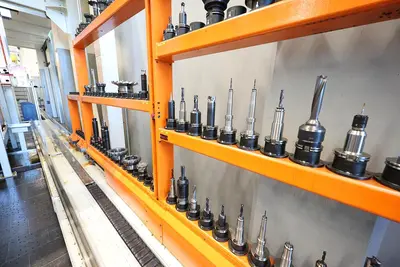

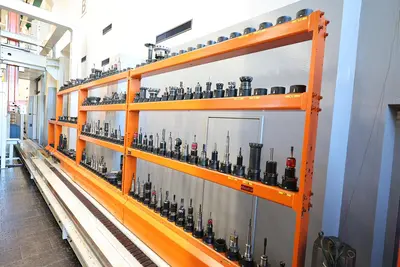

153 Position Automatic Tool Changer

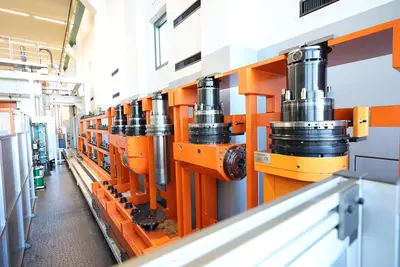

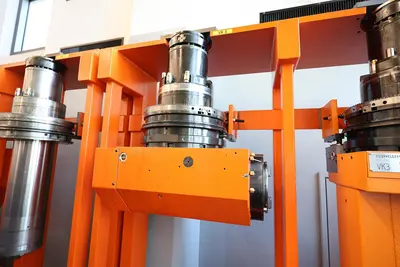

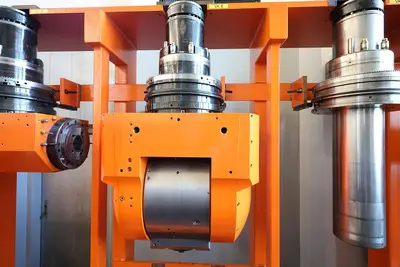

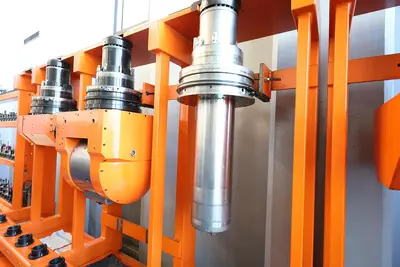

Automatic Milling Head for 6 Milling Heads:

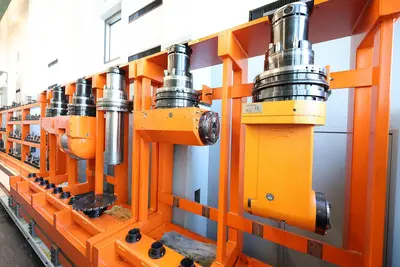

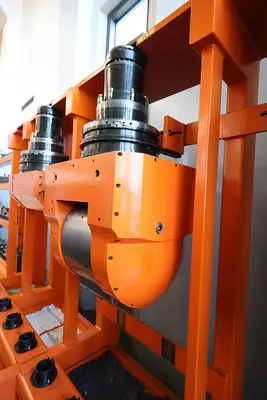

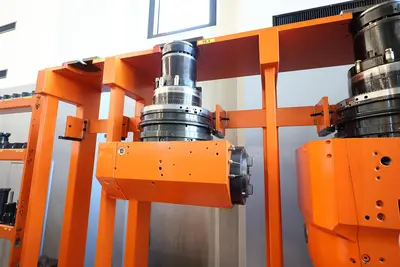

Machining Modules/Milling Heads Included:
1. machining module -straight - straight long -
2. machining module -standard angle - 4000 rpm, 144 x 2.5°, ISO 50
3. machining module -narrow angle extended -40 kW, 4000 rpm, 1800 Nm, 144 x 2.5°, ISO 50
4. machining module -2-Axis Sweep Type Universal - 40 kW, 4000 rpm, 2100 Nm, C-axis 144 x 2.5°, B-axis +/- 44 x 2.5°, ISO 50
Coolant Unit
Chip Conveyor
Technical Documentation
Specs
Manufacturer: Kolb
Model: CUBIMAT VD
Year: 2020
Condition: Used
Stock Number: 11202
Between columns: 3,500 mm
Spindle speeds: 4,000 rpm
Spindle nose to table: 3,000 mm
X axis travel: 13,150 mm
Y axis travel: 4,000 mm
Z axis travel: 1,250 mm

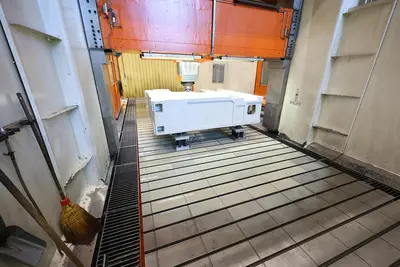

Table size: 5,500 / 12,150 x 3,000 mm
Table capacity: 70 / 105 Ton
W axis travel: 2,250 mm
Z + w axis (ram + crossrail): 3,500 mm
Ram dimensions: 480 x 510 mm
Spindle drive motor: 63 kW
Spindle taper: ISO 50 DIN 3987` AD
Spindle torque: 3,300 Nm
Feed speed X/Y/Z: 24,000 mm/min
Total power requirement: 120 kVA
Machine weight: 245 Ton
Machine dimensions: 29 x 7.7 x 8.1 m
