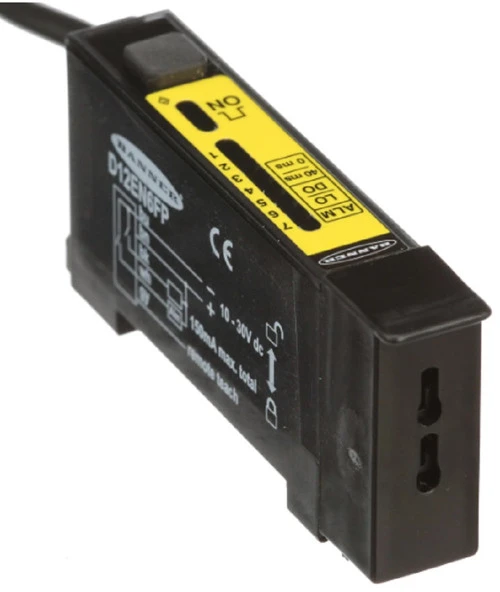

Banner D12EP6FP 41965 D12 Expert Plastic Fiber Optic Sensor, Output SPST PNP [New]

Banner Engineering D12EP6FP 41965 D12 Expert Series Plastic Fiber Optic Sensor, Range Depends on Fiber, Input 10-30 V dc, Output SPST PNP, 2 m (6.5 ft) Cable

Cable Length (m) 2
Accepts Fiber Termination Type Unterminated Plastic Fibers or T5 Termination
Power DC
IP Rating IP11
Housing Style DIN Rail
Primary Housing Material Thermoplastic
Input Output Discrete
Color LED - Amplifiers Red
Fiber Type Plastic and Glass
Output PNP
Connection Cable
Output Type (Specific) Single Discrete
Repeatability (??s) 66
Number of Pins 5
NEMA Rating NEMA 2
Max Op. Temperature (??C) 70
Min Op. Temperature (??C) -20
Max Op. Relative Humidity (%) 90% @ 50??C
Special Feature: Remote Teach Yes
Intrinsically Safe No
Adjustments Teach Button
Power Supply/Supply Voltage 10-30 V dc
Delay at Power-up (ms) 100
Indicator Display Type Bargraph
Minimum response time (ms) .2
Special Feature: Bussable Power No
Feature: Audible No
Feature: Health/ Marginal Signal Output Yes
Application: Object Counting Yes
Housing Material Thermoplastic. Banner. Banner Engineering. D12EP6FP.
