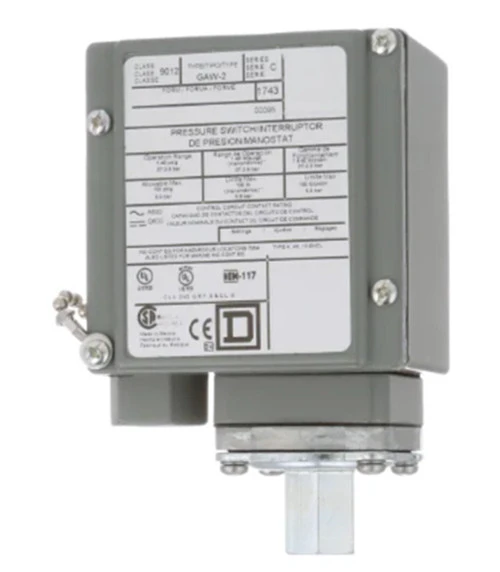

Square D 9012GAW2 Industrial Vacuum Pressure Switch, Class 9012, Type GAW-2 [New]

Pressure Switch, (1) Port, 1/4-18 in FNPT, SPDT, 1 to 40 psi, Standard Action

Function: Fluid Pressure
Measurement Range: 1.0-40.0 psi
Mounting Type: .25" NPTF
Operating Fluid: Air ; Hydraulic Oil ; Non-corrosive Gases ; Non-corrosive Fluid
Output: SPDT
Port Size: 0.25 in
Primary Type: Pressure Switch
Sensing Mode: Diaphragm (Low Pressure)
Series: 9012 Series
Supply Voltage: 600 VAC
Switching Current: 10 A
Termination: NPT Port
Type: Diaphragm (Low Pressure)
UPC Code: 785901000952. Square D. Schneider Electric. 9012GAW2.
