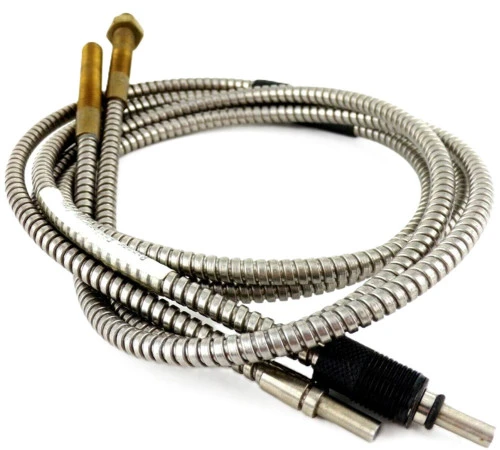

Banner DBT23S 17813 High Temperature Fiber Optic, Opposed, Reflective [New]

Banner Engineering DBT23S 17813 High Temperature Fiber Optic, Opposed, Reflective

Housing Style Round
Quantity Included 1
Fiber Optic Type Glass
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Reflective
Beam Exit In-line
Sensing End Material (Specific) Brass
Fiber Sheathing Material (Jacket) Stainless Steel Monocoil
Fiber Sensing End Tip Thread
Fiber Length (m) 0.914
Fiber Sensing End Size #5/16-24 thread
Sensing End Segment 1 Dual
Sensing End Segment 2 Thread
Retractile No
Flex Relief No
Core Diameter (mm) 3.2
Minimum Bend Radius (mm) 25
Termination Terminated
Max Temp ( ??C) 249
Integrated Lens No
Application: Liquid Level No
Application: Vacuum Feed Through None
Termination Type Glass Fiber Sensors
Tariff Fiber Meters (fbm) 6220.68
Fiber Sensing End Size - Mounting Area #5/16-24 thread. Banner. Banner Engineering. DBT23S.
