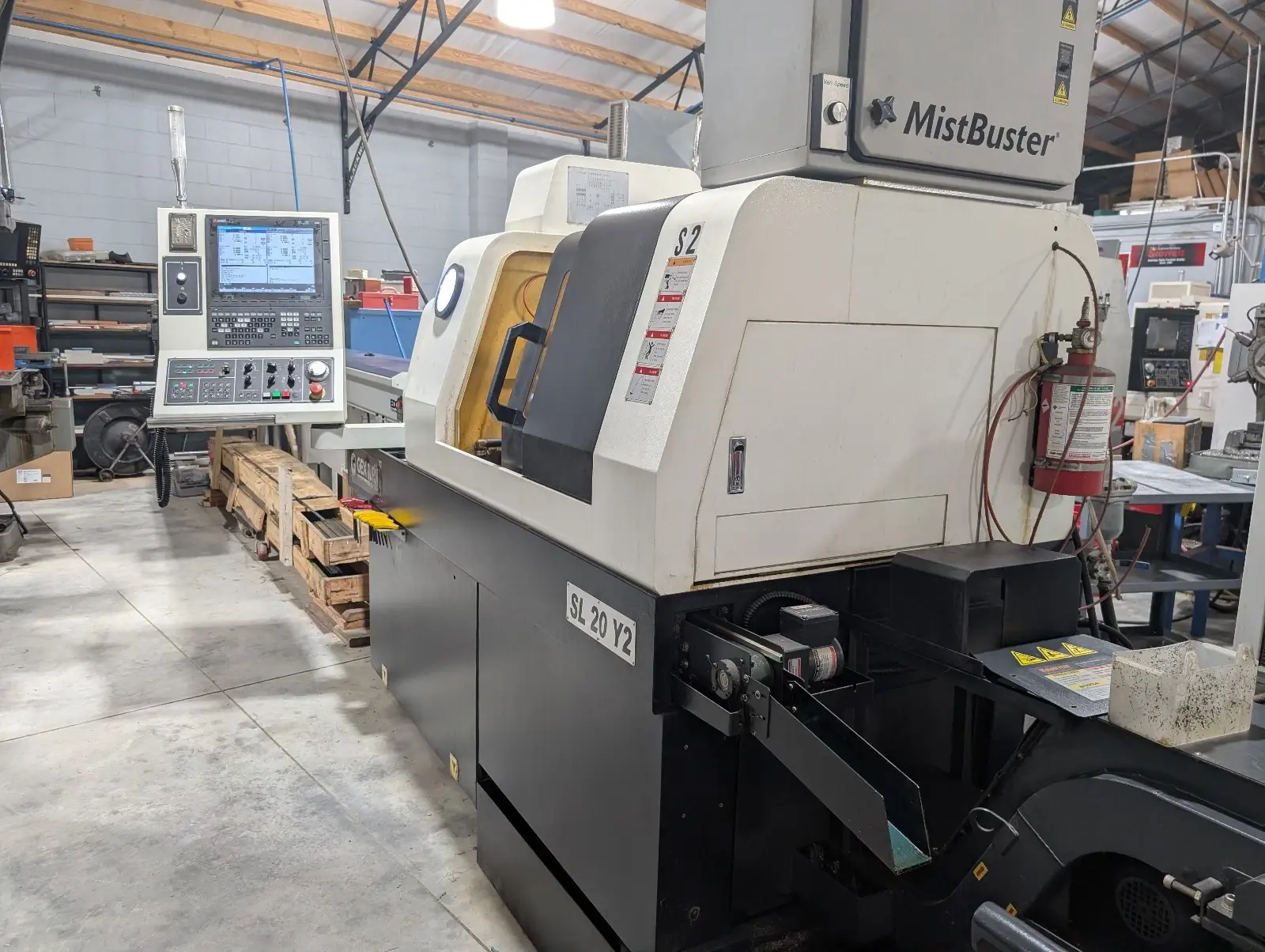

Used Swiss Type Automatic Screw Machine for sale. Features 8-axis control, max spindle speed of 10,000 RPM, and a bar capacity of 0.787″. Comes with Mitsubishi CNC control and Edge Scout 320 bar feeder. Dimensions: 118″ x 55″ x 78″.
| RPM | 10,000 RPM | 10,000 RPM |
| # Axis | 8 | 8 |
| Control | CNC (Mitsubishi) | CNC (Mitsubishi) |
| Dimensions | 118″ x 55″ x 78″ | 118″ x 55″ x 78″ |
| Weight | 5,954lbs | 5,954lbs |
Bar Capacity: 0.787″
Max Turning Length: 7.48″
Max Turning Diameter: 2.36″
X-Axis Travels: 6.3″
Y-Axis Travels: 7.8″
Z-Axis Travels: 8″
Max Spindle Speed: 10,000 RPM
Number of Axis: 8
Electrical: 220V, 3-Phase
Machine Dimensions: 118″ x 55″ x 78″
Machine Weight: 5,954lbs
Mitsubishi CNC Control
Edge Scout 320 Bar Feeder
