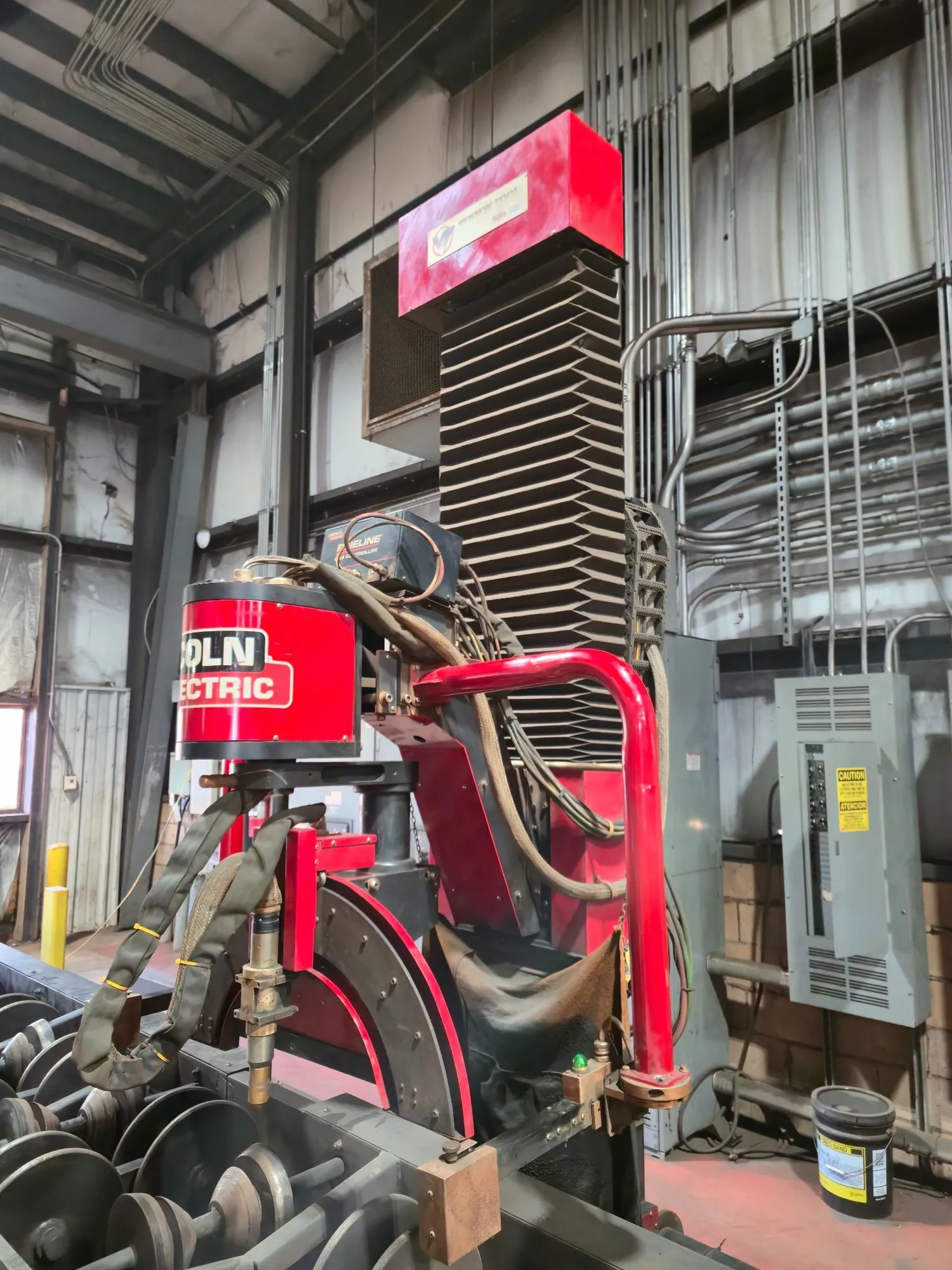

USED 2023 VERNON TOOL MPM5-0348

Available Immediately. This machine is currently under power and available for inspection. A factory-trained technician can be provided at extra cost for installation & operator training.

Please note: The machine is sold “as-is, where-is.” Pricing does not include decommissioning, loading, shipping, installation, training, taxes, or any other associated costs.

Machine hours: more or less 500 hours

Model MPM5-0348 — Machine Bed Specifications

Pipe Diameter Capacity: 6"–48"
Maximum Weight per Foot: 1,000 lb/ft (680 kg/m)
Maximum Total Load: 22,500 lb (10,200 kg)
Maximum Cutting Speed: 200 ipm (5 m/min)
Rotation Speed: 0–200 ipm (0–5 m/min)
Conveyor Rotation Speed: Up to 50 RPM

Profiler Specifications:

Axes: 5
Torch Travel: Up to 41 ft (12.5 m)
Torch Angle: ±70° (Oxy) / ±45° (Plasma)
Out-of-Round Compensation: Dual analog sensors
Cutting Angle Range: 1°–179°
5-Axis Head Rotation: ±360°

40’ machine bed w/5 axis profiler
Infeed and outfeed 40’ each/ non-tilting
Harris Oxy Fuel cutting package included
Lincoln Electric Fine Line 300 HD plasma
(1) seat Pype Server offline CAD/ CAM
Total hours: +/- 500 hours
