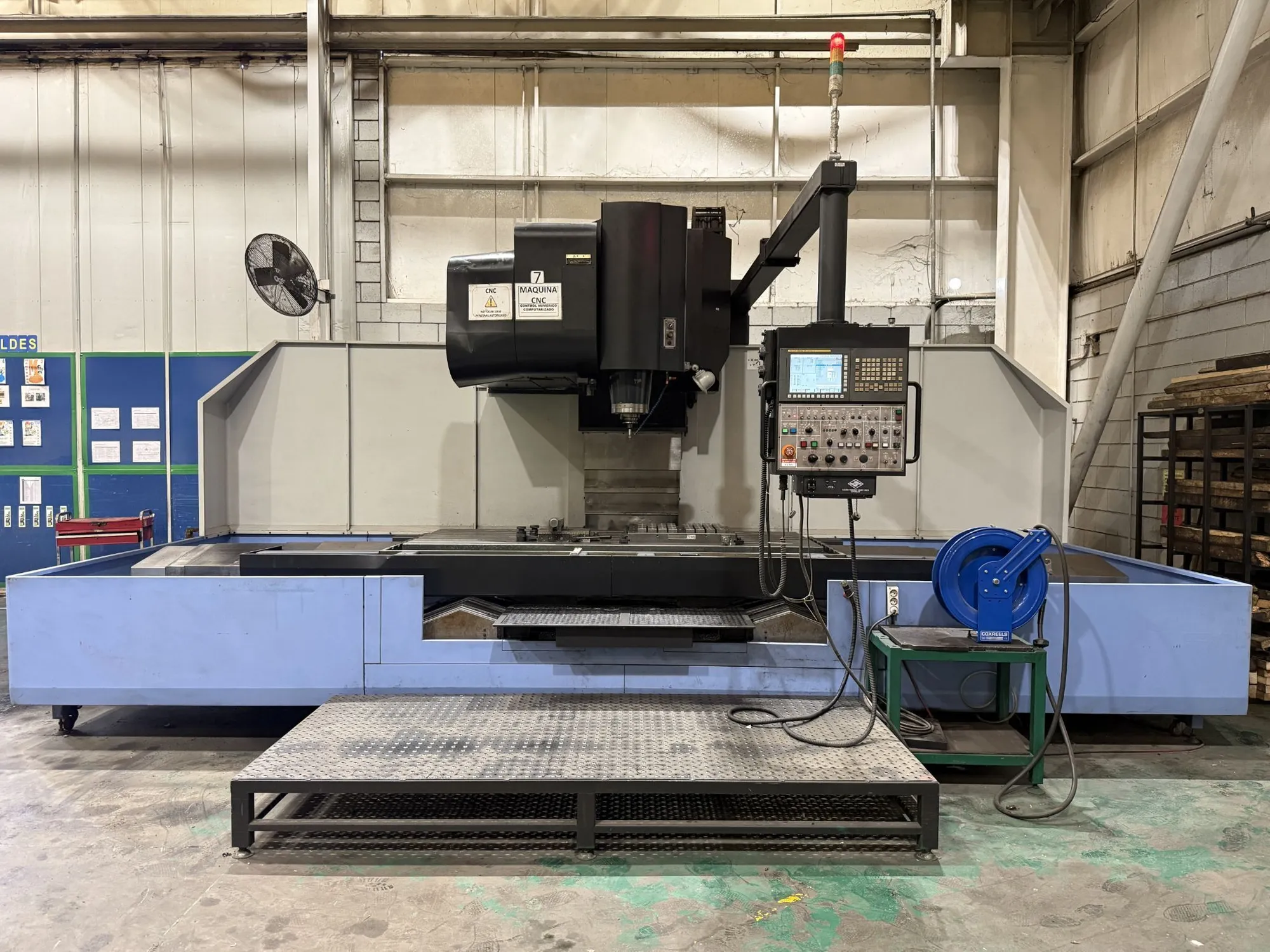

79" x 38" x 31" trvls, Fanuc Series 31i Model A
| X Axis Travel | 78.74" | 2,000 mm |
| Y Axis Travel | 37.8" | 960.12 mm |
| Z Axis Travel | 31.5" | 800.1 mm |
| Spindle Motor | 25 hp | 18.6 kW |
| Spindle Speed | 6,000 RPM | 6,000 RPM |
| ATC Capacity | 30 | 30 |
| Spindle Taper | BT-50 | BT-50 |
| Table-W | 37.4" | 949.96 mm |
| Table-L | 94.5" | 2,400.3 mm |
| Max. Table Load | 8,818 Lbs | 8,818 Lbs |
| Dimensions | 191" x 141" x 252" | 191" x 141" x 252" |
Fanuc Series 31 Model A CNC Control
Coolant Thru Spindle
220V
