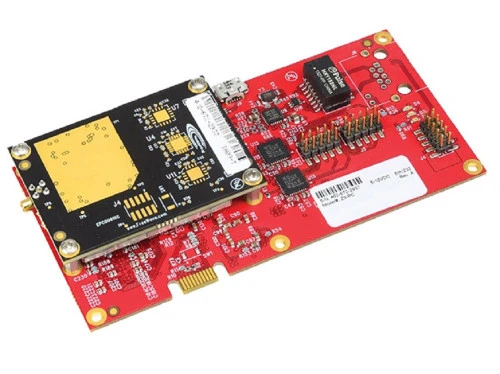

Freewave Z9-PC ZumLink 900 Board Level Unit, FSK Gateway Ethernet, Serial [New]

Freewave Z9-PC ZumLink 900 Board Level Unit, FSK Gateway Ethernet, Serial, 902 to 928 MHz, GFSK, 8-ary FSK

Future-Ready Industrial Ethernet Radio FreeWave's ZumLink?äó 900 Series is made for secure collection, transport, and control of data in rugged industrial environments, providing a longrange, low-power solution for remote wireless communications-with capabilities that can be seamlessly added as IIoT requirements evolve.

The ZumLink Z9-PC and Z9-PC-SR001 for OEMs operate in the unlicensed 900 MHz spectrum and utilize Frequency Hopping Spread Spectrum (FHSS) technology for cybersecure data transfer with RF link rates up to 4 Mbps. Performance is further enhanced by FreeWave's Network Accelerators, which utilize techniques such as packet compression, packet aggregation, forward error correction, and Adaptive Spectrum Learning to maximize network throughput, efficiency, and reliability. ZumLink OEM radios are ideal for integration in networks, systems, and devices used by oil and gas, precision agriculture, water / wastewater, smart cities, and utilities. They provide a Cost, Size, Weight, and Power (CSWaP) advantage with their small, lightweight form factor, industry-leading low power consumption, and low-cost integration. Conformal coating is available for applications with salt spray, moisture, dust, or corrosion concerns.

The ZumLink 900 Series is also software upgradable to include FreeWave's IQ Application Environment, a Linuxbased operating system for developing and deploying third-party applications.

Key Features
Operates in the Unlicensed 900 MHz Spectrum: Cost-effective, easy to deploy

High Speed Data Rates: Five RF link rates supporting from 80 kbps to 4 Mbps

Long Range: Up to 97 km (60 miles) with clear line of sight Safe for Hazardous Locations: Class I, Division 2 certified to board level Leverages

FreeWave's Network Accelerators: to maximize network efficiency

Packet Compression: Minimizes packet transmission

Packet Aggregation: Increases throughput

Forward Error Correction: Improves network reliability

Adaptive Spectrum Learning: Reduces the impact of interferences

Low Current Consumption: 330 mA @ 12 V in transmit; 108 mA @ 12 V in receive

Secure: SSH, SNMP, 128- and 256-bit AES counter mode encryption

Reliable Communication: CRC, ARQ, FEC CSWaP Advantage: Optimal Cost, Size, Weight, and Power combination Upgradable with the IQ Application Environment: Linux-based operating system and storage for applications built in any Linux-compatible language. Freewave. Freewave. Z9-PC.
