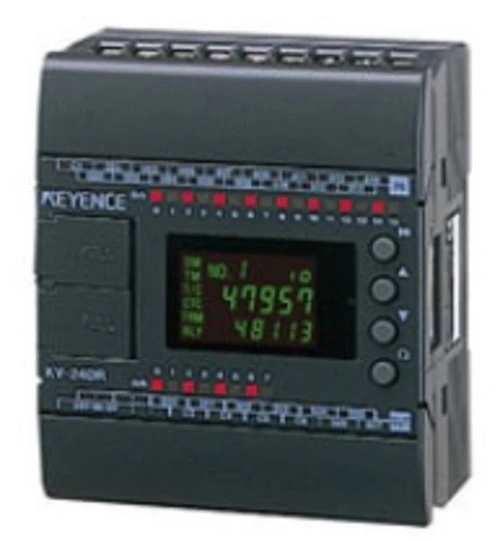

Keyence KV-24T Programmable Logic Controller, 16 In, 8 Out, 4 Common Out, MOSFET [Refurbished]

Number of Inputs: 16. Number of Outputs: 8. Common Output: 4. Type of Output: MOS-FET. Type: Basic Unit. Keyence KV-24T Programmable Logic Controller, 16 In, 8 Out, 4 Common Out, MOS-FET

Variety of Expansion Options
20 kHz Clock Pulse Output
Built-In 1 ms Timer
Serial Communication Function
Programs are Stored in EEPROM, Eliminating the Need for Backup Battery
The KV Series of Super-Small Programmable Logic Controllers (PLCs) offer many features from size, expansion options, output, timer, and communication functions.

The KV-10 (with 10 I/Os) is about the same size as three general-purpose relays. KV Series PLCs require little space on a control panel.

With the KV Series, it's easy to expand the number of I/Os.

The interrupt input instruction receives pulse signals as short as 25 ??s regardless of the program cycle time, thus allowing real time processing. The KV Series also provides two 10 kHz counters that are suitable for counting pulses with a high frequency.

Useful during startup, the analog timer trimmer enables the adjustment of the values for timers and counters, in real time, based on actual operating conditions, with a range from 0 to 249.

The 20 kHz clock pulse output enables positioning at varying speeds. The KV Series is useful as a pulse generator for stepping motors.. Keyence. Keyence Corporation. KV-24T.
