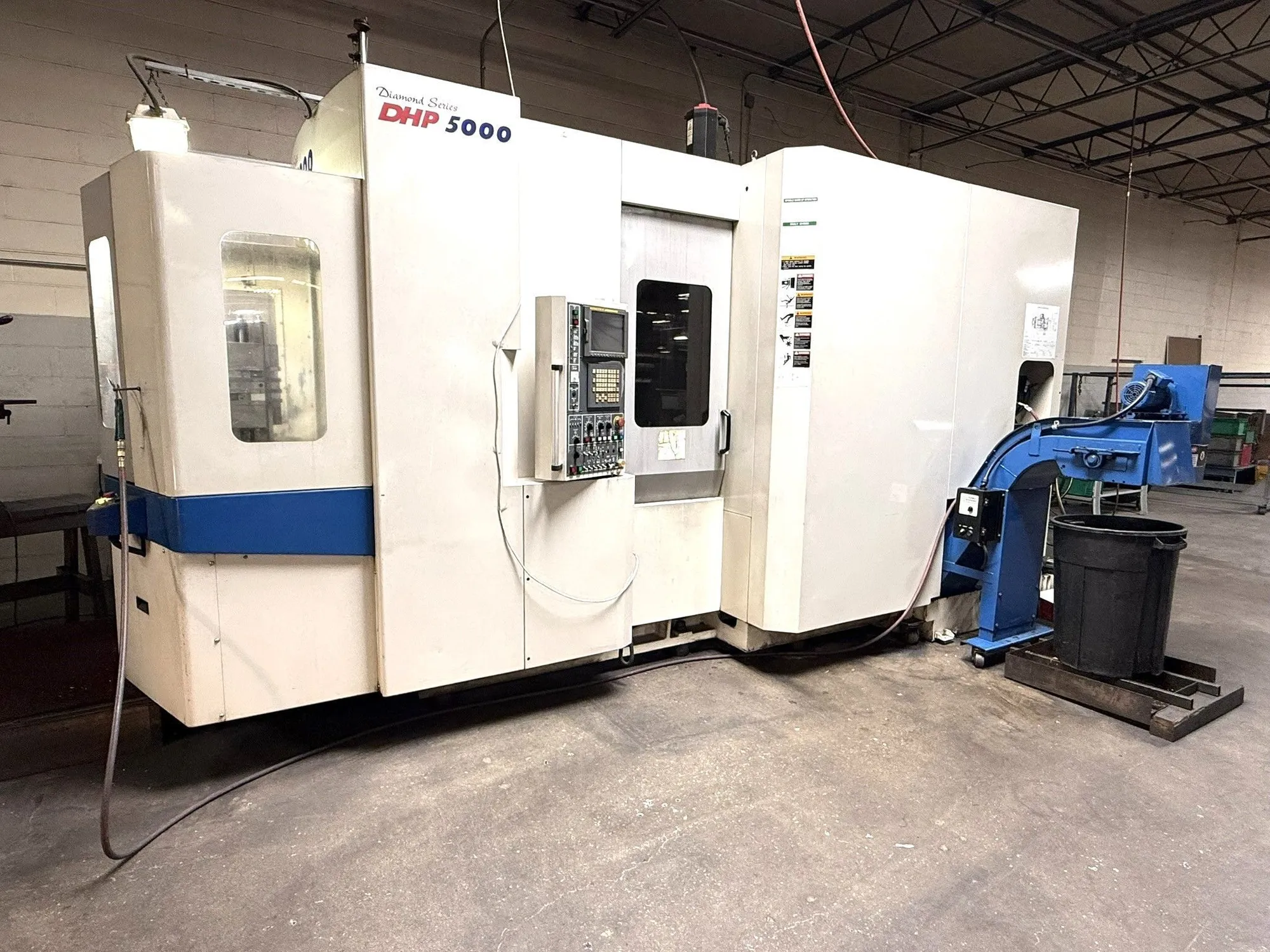

(2) 19.7" Pallets, Coolant Thru Spindle, 14,000 RPM spindle, 60 ATC, CAT 40, Fanuc Control. This well maintained 2006 Doosan Daewoo DHP-5000 horizontal machining center also includes CoolJet coolant system and is in plant, under power and ready for inspection. Priced to move quickly.
| PALLET WIDTH | 19.7" | 500.38 mm |
| PALLET LENGTH | 19.7" | 500.38 mm |
| PALLET INDEXING | 1 DEGREE | 1 DEGREE |
| NUMBER OF PALLETS | 2 | 2 |
| MAX WORKPIECE WEIGHT | 1,102 lb | 499.9 kg |
| X-AXIS TRAVEL | 33.4" | 848.36 mm |
| Y-AXIS TRAVEL | 27.5" | 698.5 mm |
| Z-AXIS TRAVEL | 29.5" | 749.3 mm |
| SPINDLE SPEED | 14,000 RPM | 14,000 RPM |
| SPINDLE MOTOR | 30 hp | 22.4 kW |
| SPINDLE TAPER | CAT 40 | CAT 40 |
| TOOL POSITIONS (ATC) | 60 | 60 |
| RAPID TRAVERSE RATE | 1,889 in/min. | 4,798.1 cm/min. |
| Dimensions | 137" X 208" X 118" | 137" X 208" X 118" |
| Weight | 28,000 LBS | 28,000 LBS |
FANUC 18i-MB CNC CONTROL
THROUGH SPINDLE COOLANT
(2) PALLET SYSTEM
COOL BLASTER HP COOLANT SYSTEM (290 PSI)
COOLJET FILTER SYSTEM
RIGID TAPPING
CHIP CONVEYOR
** ALL AIRLINES REPLACED 2024
** AS OF APRIL, 2025 - CUTTING TIME HOURS: 14,243
** (2) TOMBSTONES AS PICTURED INCLUDED
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
