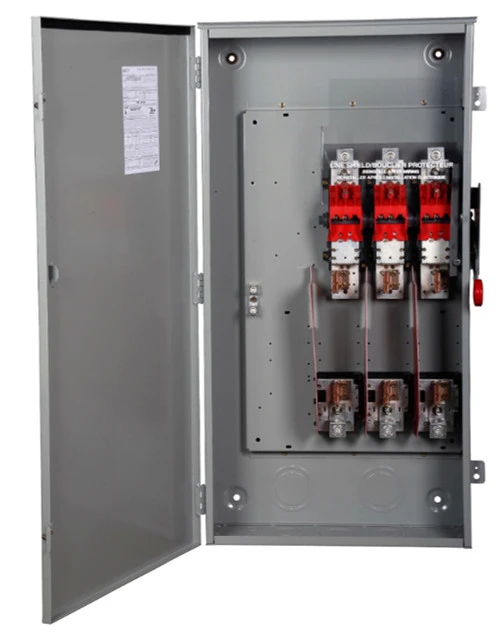

Eaton DH365FRK Enhanced Visible Blade Single-Throw Safety Switch, 400 A, NEMA 3R [New]

Eaton DH365FRK Enhanced Visible Blade Single-Throw Safety Switch, 400 A, NEMA 3R, Painted galvanized steel, Class H, Three-pole, Three-wire, 600 V, Max Hp: 250, 350 hp (3PH @480/600 V), (2)#1/0-(2)300 kcmil; or (1)#1/0-(1)750 kcmil Al

PRODUCT NAME: Eaton heavy duty fusible safety switch
CATALOG NUMBER: DH365FRK
UPC: 782113207216
PRODUCT LENGTH/DEPTH: 45.5 in
PRODUCT HEIGHT: 10.25 in
PRODUCT WIDTH: 24.38 in
PRODUCT WEIGHT: 105.8 lb

CERTIFICATIONS: UL Listed
CATALOG NOTES: Suitable for service entrance use with a Neutral Kit installed

PHYSICAL ATTRIBUTES
ENCLOSURE: NEMA 3R
ENCLOSURE MATERIAL: Painted galvanized steel
FUSE CLASS PROVISION: Class H
FUSE CONFIGURATION: Fusible without neutral
NUMBER OF POLES: Three-pole
NUMBER OF WIRES: 3
TYPE: Heavy duty fusible safety switch

PERFORMANCE RATINGS
AMPERAGE RATING: 400A
HP RATING - MAX: 250, 350 hp (3PH @480/600 V)
NEMA RATING: NEMA 3R
VOLTAGE RATING: 600 V

MISCELLANEOUS
PRODUCT CATEGORY: Heavy Duty, Fusible without neutral. Eaton. Eaton Corporation. DH365FRK.
