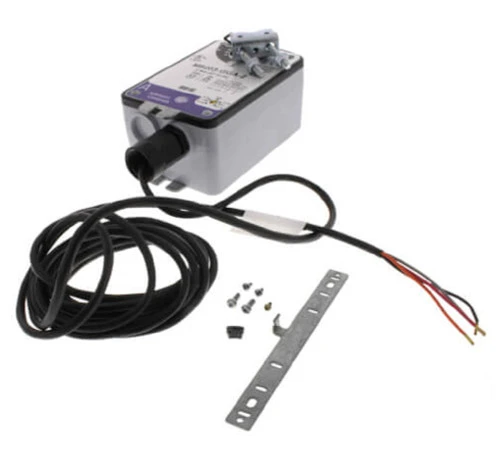

Johnson Controls M9203-GGA-2Z Electric Spring Return Proportional Actuator [New]

Johnson Controls M9203-GGA-2Z Electric Spring Return Proportional Actuator with 120" 19 AWG Plenum Cable - The M9203-xxx-2(Z) Series Electric Spring Return Actuators provide control of dampers in Heating, Ventilating, and Air Conditioning (HVAC) systems. All actuators in this series provide 27 lb??in (3 N??m) rated torque. A mechanical spring return system provides rated torque with or without power applied to the actuator. These actuators are configured for direct mounting and do not require a damper linkage. Actuators can be mounted directly to a damper shaft from 1/4 to 1/2 in. (6 to 12 mm) diameter with a universal clamp. An accessory crank arm and remote mounting kit are available for applications where the actuator cannot be direct-coupled to the damper shaft. An optional line voltage auxiliary switch indicates an end-stop position or performs switching functions within the selected rotation range.. Johnson Controls. Johnson Controls. M9203-GGA-2Z.
