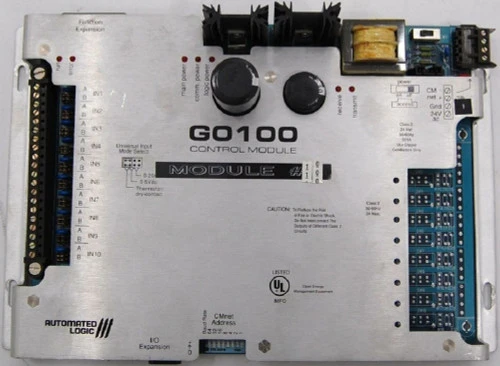

ALC Automated Logic Corp G0100 GX-Line Control Module, HVAC Control System [New]

The G0100 is part of the GX-Line, a unique hardware concept which allows a complete HVAC control system to be built a piece at a time. General purpose Direct Digital Control is achieved by joining various expandable controllers within a standard control panel as the size of the job increases. This original design solves many problems which plague traditional DDC systems. The GX-Line consists of several general purpose controllers which provide different I/O point combinations. Each G board provides the communications circuitry, non-volatile memory, and removable screw terminals for I/O connections. Additionally, each G board (except the G220 and G8102) is designed with a connector which acts as an expansion bus for adding up to five I/O expander boards. These "X boards" expand the total point capacity of each panel up to 120 points. The G0100 can be programmed with up to 56 Graphic Function Blocks. Software: Requires G0T module driver. If pneumatic expansion boards are used, requires P0T module driver. Operating Temperature Range: 0-130 ??F (-17.8-54.4 ??C), non-condensing. A/D Input Resolution: 10 bit. Automated Logic. Automated Logic Corporation. G0100.
