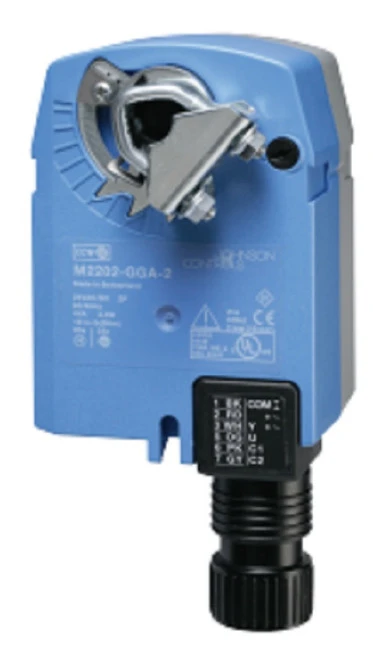

Johnson Controls M2202-BGA-2 Damper Actuator, 18 lb-in (2 nm), On-Off Control [New]

Johnson Controls M2202-BGA-2 Damper Actuator, 18 lb-in (2 nm), On-Off Control Type, No Aux Switch, 36" Cable

Simple direct coupling reduces installation and commissioning time while improving reliability by eliminating damper linkages

Reversible mounting design - enables the actuator to spring return in either direction

Robust 18 lb-in (2 Nm) torque rating

35 to 95?? CW or CCW adjustable stroke mechanically limited to 95??

Fits 1/4 to 1/2" (6 to 12.7 mm) round or 1/4 to 5/16" (6 to 10 mm) square shafts

On-off, floating and DC 2...10 V proportional control

DC 2...10 V feedback (GGx models only)

Removable coupler - adapts to a shorter damper shaft

Floating and proportional models have DA /RA switch

Electronic stall detection throughout entire rotation range extends the life of the actuator by deactivating the actuator motor when an overload condition is detected

Rated for 60,000 full stoke cycles, 1,500,000 repositions (AGx, GGx models)

Integral 39 in. (1 m) cables with colored conductors - simplify field wiring

Integral auxiliary switch (xxB Models) - provide one adjustable switch point with line voltage capability

cULus Listed, CE Mark. Johnson Controls. Johnson Controls. M2202-BGA-2.
