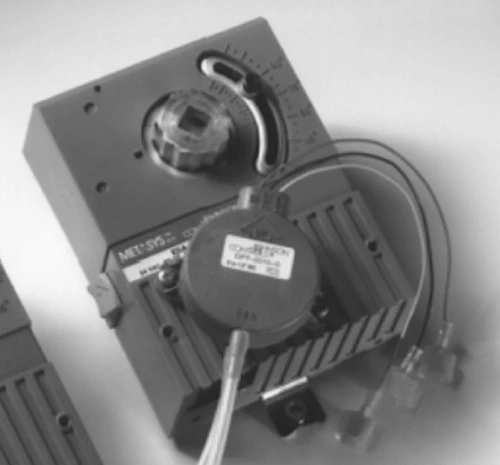

Johnson Controls ATP-2040-212 Metasys Variable Air Volume (VAV) Controller [Refurbished]

EDA-2040-1 and DPT-2015-1 with Cable, 24 VAC Incremental, 1 to 5 VDC Transmitter

The Variable Air Volume (VAV) Controller is an electronic device for digital control of single duct, dual duct, fan powered, and supply/exhaust VAV box configurations. See 50HFigure 1. You may use the VAV as a standalone controller or connected to the Metasys?« network through a Network Control Module (NCM) or Companion?äó system.

When connected to the Metasys Network, the VAV provides all point and control information to the rest of the network. The devices communicate through an N2 Bus.

The EDA-2040 synchronous motor driven actuator provides incremental (3-wire) control of a Variable Air Volume (VAV) box damper or small and medium-sized dampers in Heating, Ventilating, and Air Conditioning (HVAC) applications. This compact, non-spring return actuator has a 35 lb??in (4 N??m) running torque and 40 lb??in (4.5 N??m) stall torque in a compact easy-toinstall package. Available in 1, 2, 5-1/2, or 11-minute 90?? travel time models.

The ATP-2040 Actuator/Transmitter combines an EDA-2040 with the DPT-2015 Differential Pressure Transmitter with a 0 to 1.5 in. W.C. (0 to 374 Pa) differential pressure range.

The optional EDA-2040-102 Switch Kit has two auxiliary contacts that can be adjusted for any make/break position between 0 and 90?? and visual indication of the damper blade position.. Johnson Controls. Johnson Controls. ATP-2040-212.
