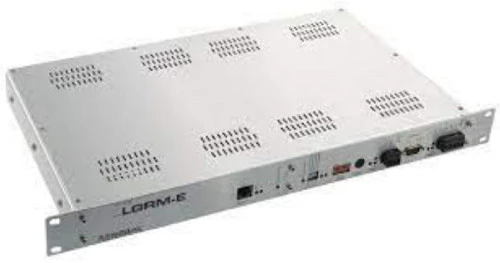

Automated Logic LGRM-E LGR Gateway Router, Rackmount [Refurbished]

The LGRM-E is part of the Gateway family and provides communication between a workstation and a control module network (CMnet) consisting of fewer than 100 modules. Up to 199 gateways can be networked together on an LGnet, allowing the LGRM-Es to route global information between CMnets. While the LGRM-E supports 199 gateways, versions of SuperVision earlier than 3.01 do not support more than 60 gateways.

The LGRM-E provides an Ethernet 10base-T port for 10Mbps communication with the LGnet. Two console ports that can be connected to a workstation, portable computer, or modem, an Auxiliary Device Port (Keypad/Display Port), and an Access Port are also provided.

Console Port 1 is a 9-pin EIA-232 connector. Console Port 2 is a 5-pin terminal jumper.. Automated Logic. Automated Logic Corporation. LGRM-E.
