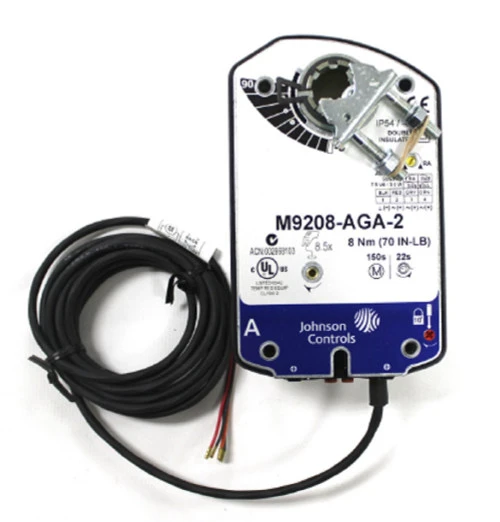

Johnson Controls M9208-AGA-2 Electric Spring-Return Actuator, 70Lb-In, Floating [New]

Johnson Controls M9208-AGA-2 Electric Spring-Return Actuator, 70Lb-In, Floating Point, Ac/Dc 24V, Plenum Cable

The M9208-AGx-x Series On/Off and Floating Point Electric Spring Return Actuators are direct-mount actuators that operate on AC/DC 24 V power. These bidirectional actuators do not require a damper linkage, and are easily installed on round shafts from 5/16to5/8in.(8to16mm) or square shafts from 1/4to1/2in.(6to12mm) using the standard shaft clamp included with the actuator. An optional M9208-600 Large Coupler Kit is available for round shafts from 1/2 to 3/4in.(12to19mm) or square shafts from 3/8to9/16in.(10to14mm). A single M9208-AGx-x Series On/Off and Floating Point Electric Spring Return Actuator provides 70lb??in.(8N??m) running and spring return torque. Integral line voltage auxiliary switches, available only on the M9208-xxC-3 models, indicate end-stop position, or perform switching functions within the selected rotation range. M9208-AGA-2 actuators include plenum-rated cables and are specially configured for installation in spaces used for environmental air-handling purposes other than ducts and plenums as specified in National Fire Protection Association (NFPA) 70: National Electrical Code section 300.22(C), Other Space Used for Environmental Air. The space over a hung ceiling used for environmental air handling purposes is an example of the type of space for which these actuators are configured.. Johnson Controls. Johnson Controls. M9208-AGA-2.
