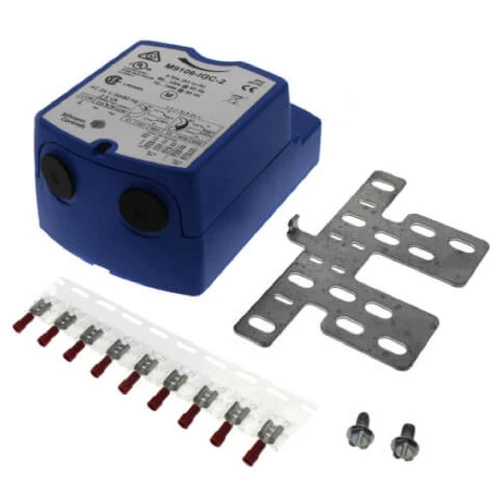

Johnson Controls M9106-IGC-2 24 VAC Non-Spring Return, Rotary Actuator 53 lb-in [New]

Johnson Controls M9106-IGC-2 24 VAC Non-Spring Return, On-Off-Floating Rotary Actuator (53 lb-in)

24 VAC Non-Spring Return, On-Off-Floating Rotary Actuator with 2 auxiliary switches (53 lb-in)

Features:
Simple direct coupling reduces installation and commissioning time and improves reliability by eliminating damper linkages. Single screw coupling provides three-point shaft gripping
Designed for zone damper and ball valve actuator applications
Small, compact design - allows installation in tight-fitting locations
Rotation range adjustable 30 to 90 degrees CW or CCW
Fits 3/8 to 1/2" (10 to 13 mm) round or 3/8" (10 mm) square shaft
On-off, floating and jumper selectable DC 0(2).10 V or DC 0(4).20 mA proportional control
Jumper selectable DA / RA operation
60 second running time at 60 Hz
Long life brushless synchronous drive motor technology - provides constant running time independent of load
Robust 53 lb-in (6 Nm) torque rating
Whisper quiet 35 dBA noise rating
clutch - provides over torque protection over the entire range of rotation
2-SPDT optional auxiliary switches
-4 to 125??F (-20 to 52??C) ambient temperature rating
100,000 full stroke cycle, 2,500,000 reposition rating
Manual gear release simplifies setup and field adjustments
1/2" NPT threaded conduit opening meets electrical code requirements and allows the use of flexible armored cable
Position feedback (GGX models) provides simple, closed-loop control with accurate position sensing
Adjustable rotation stops allow application versatility with 30 to 90?? clockwise or counterclockwise rotation
UL Listed, CSA Certified, CE Mark. Johnson Controls. Johnson Controls. M9106-IGC-2.
