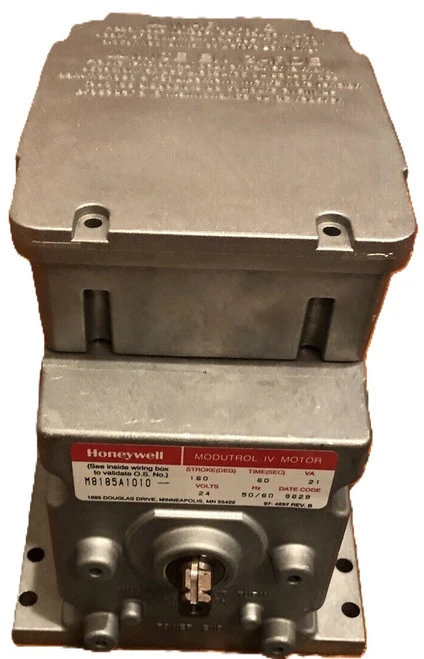

Honeywell M8185A 1010 Tradeline Modutrol IV Motor, Two-Position, Low Voltage [New]

Honeywell M8185A 1010 Tradeline Modutrol IV Motor, Two-Position, Low Voltage, 60 lb-in, NC Dual Ended Shaft

The M4182, M4185, M4186, M8175, M8182 and M8185 are two-position spring return Modutrol Motors. They are used to operate dampers or valves in applications where it is necessary or desirable to have the controlled element return to the starting position in the event of power failure or interruption.

TRADELINE models are selected and packaged to provide ease of stocking, ease of handling, and maximum replacement value. TRADELINE model specifications are the same as those of standard models, unless otherwise specified. M8185D1006 is a TRADELINE model. TRADELINE model has auxiliary switch cams.

Control Type: Series 80, low voltage, two position
Power Design: high torque: 60 lb-in.
Spring Return: normally closed, dual-ended shaft
Option: Fixed stroke (90 or 160 degree), No auxiliary switch. Honeywell. Honeywell. M8185A 1010.
