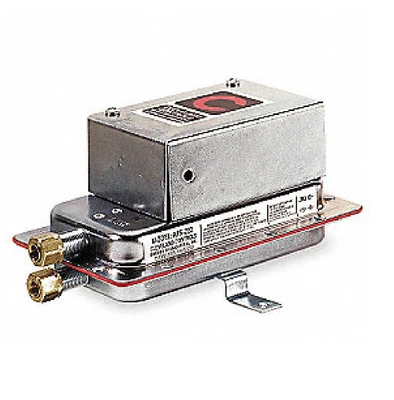

Cleveland Controls AFS-222 Air Sensing Switch, HVAC/General Purpose, SPDT Switch [New]

Type: HVAC/General Purpose. Differential (In. WC): 0.02 to 0.8. Switch Type: SPDT. Electrical Rating: 300 VA Pilot Duty. . Model AFS-222 is a general purpose proving switch designed for HVAC and Energy Management applications. It can be used to sense positive, negative, or differential air pressure. The plated housing contains a diaphragm, a calibration spring and a snap-acting SPDT switch. The sample connections located on each side of the diaphragm accept ?é???ó?é¼?¥ OD metallic tubing via the integral compression ferrule and nut. An enclosure cover guards against accidental contact with the live switch terminal screws and the set point adjusting screw. The enclosure cover accepts a ?é???ó?é¼?¥ conduit connection.. Cleveland Controls. Cleveland Controls. AFS-222.
