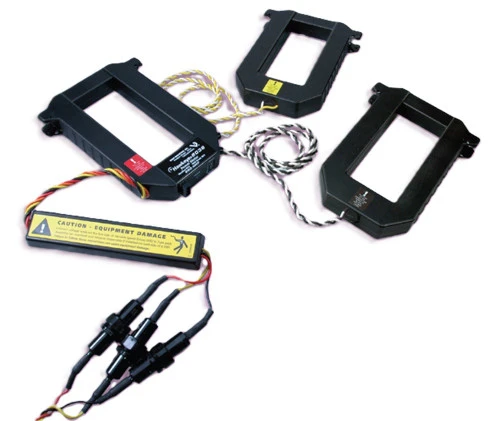

Veris H8026-2400-4 Enercept 3-Phase Power Transducer, 2400A, Large [New]

Three Phase Enercept Power Transducer with N2 Protocol - 2400A, Large.

The Enercept H8025/H8026 are an innovative three-phase networked power transducers that combines electronics and high accuracy industrial grade CTs in a single package. The need for external electrical enclosures is eliminated, greatly reducing installation time and cost. Color-coordination between voltage leads and CTs makes phase matching easy. Additionally, these transducers automatically detect and compensate for phase reversal, eliminating the concern of CT load orientation. Up to 63 Transducers can be daisy-chained on a single RS-485 network.

Applications
Energy managing & performance contracting
Submetering for commercial tenants
Activity-based costing in commercial and industrial facilities
Real-time power monitoring

Cost Effective Meter
Monitor energy parameters (kW, kWh, kVAR, PF, Amps, Volts) at up to 63 locations on a single RS-485 network...greatly reduces wiring time and cost
Fast split-core installation eliminates the need to remove conductors...saves time and labor
Precision electronics and current transformers in a single package-reduces the number of installed components - huge labor savings
Smart electronics eliminate CT orientation concerns-fast trouble-free installation
±1% total system accuracy, (10% to 100% of CT rating). Veris. Veris Industries. H8026-2400-4.
