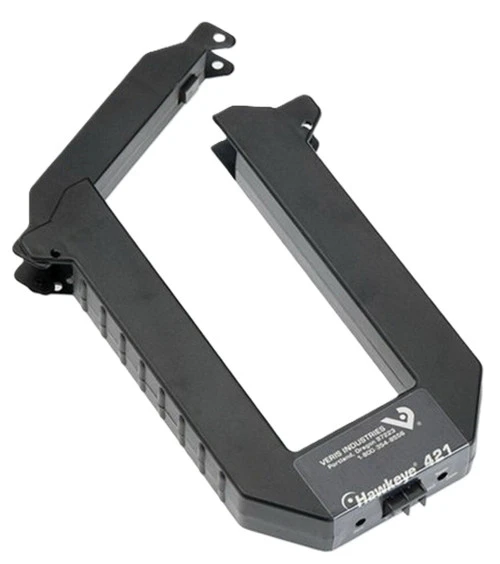

Veris H421 Hawkeye 421 Split Core CT Current Transformer, Span Adj Range [Refurbished]

Veris H421 Hawkeye 421 Split Core CT Current Transformer, Span Adj. Range: 0-1200AAC Output: 4-20mA Loop

H421 analog current transducers provide reliable load trending information for large motor loads (1000 to 2400A), with a proportional 4 to 20mA signal. This model includes a span potentiometer that allows each sensor to be calibrated for maximum resolution.

Features
Monitor larger motors and other loads up to 2400 A
Split-core design for easy installation and fast retrofits
Eliminates need for external CT on large conductors
Large openings for heavy conductors
Monitor critical motors (compressor, fuel, etc.)
Loop powered 4 to 20 mA output
Two-wire design reduces wiring cost
Zero and span adjustments for field flexibility
100% solid state, no moving parts to fail

Applications
Load trending of large motors
Building automation systems. Veris. Veris Industries. H421.
