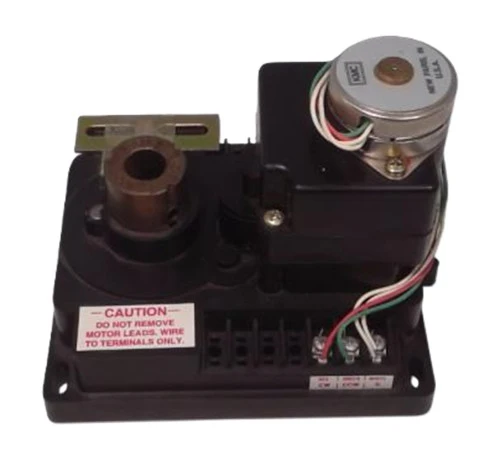

KMC Controls MEP-1505 Tri-State Direct-Coupled Actuator, 100 deg [New]

KMC Controls MEP-1505 Tri-State Direct-Coupled Actuator, 100 deg, Shipped CCW

The economical KMC MEP-1500 series rotary electric actuators are designed to operate variable air volume or other small dampers in HVAC systems. Models offer four stroke ranges (CW or CCW) of up to a full 360° at 35 to 55 in-lbs. of torque.

To accommodate easy installation on typical damper arrangements, models are available that are shipped fully stroked to the clockwise or counterclockwise position. (Unlike most other KMC actuators, these do not have a gear disengagement button.) The internal magnetic clutch allows the units to be stalled at either end of stroke with no heat rise from the actuator.

They mount directly on 1/2" shaft, or an optional reducer bushing allows them to be used directly with 3/8" damper shafts. Optional auxiliary switches or feedback pots may be field-installed. (For more information, see the data sheets for the CME-1000 and CME-2000 series.). KMC Controls. KMC Controls. MEP-1505.
