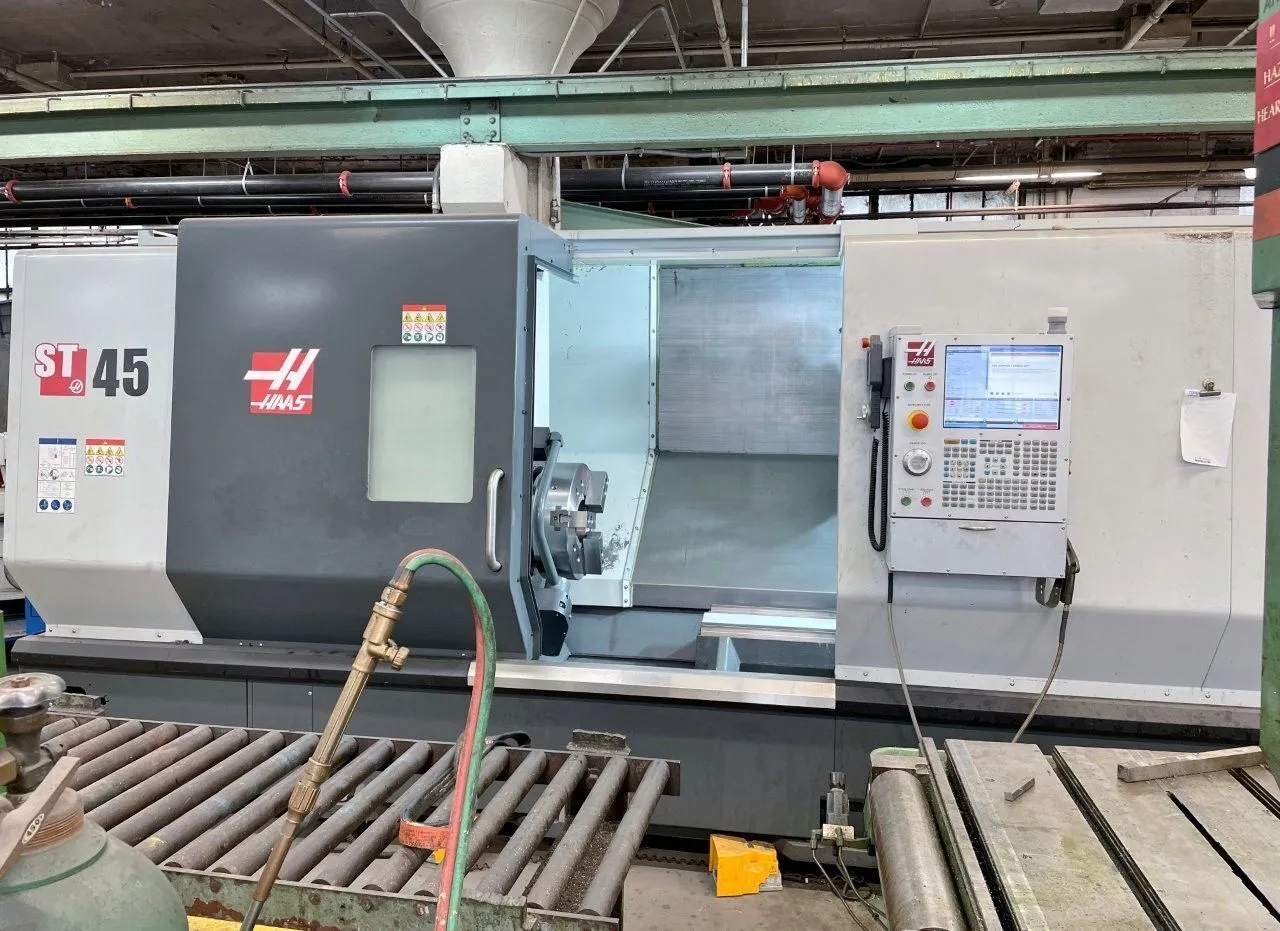

USED 2023 HAAS ST-45

MAX SWING 34.5"
MAX CUTTING DIAMETER 25.5"
MAX CUTTING LENGTH 44"
X-AXIS TRAVEL 17"
Z-AXIS TRAVEL 44"
CHUCK SIZE 18"
BAR CAPACITY 65"
SPINDLE BORE 7"
SPINDLE NOSE A2-11
SPINDLE MOTOR 40 hp
SPINDLE SPEED 1,400 RPM
RAPID TRAVERSE RATE X-AXIS 710 in/min.
RAPID TRAVERSE RATE Z-AXIS 710 in/min.
TURRET POSITIONS 12
TURRET TYPE BOLT-ON
DIMENSIONS 230" x 100" x 90"
WEIGHT 28,000 LBS

HAAS NEXTGEN CONTROL
2-SPEED GEARBOX
18”, 3-JAW SAMCHULLY HYDRAULIC CHUCK (MH-218)
6.5” BAR CAPACITY
EXTENDED TOOL POCKET (UP TO 33”)
PROGRAMMABLE TAILSTOCK
TOOL PRESETTER
CHIP CONVEYOR
HIGH-PRESSURE COOLANT (1,000 PSI)
AUXILIARY COOLANT FILTRATION SYSTEM
CHIP TRAY FILTER KIT
REMOTE JOG HANDLE
VISUAL PART PROGRAMMING SYSTEM (VPS EDITING)
MEDIA DISPLAY M-CODE (M130)
SPINDLE ORIENTATION
RIGID TAPPING
MACROS
ETHERNET
USB PORT
1GB MEMORY
WIFI CONNECTIVITY
** AS OF MARCH 2026, FEED CUTTING TIME – 465 HOURS
** MACHINE HAS BEEN UNDER-UTILIZED
** MACHINE CUT PRIMARILY CARBON STEEL
** FULL REPLACEMENT COST, AS EQUIPPED - $285,000
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
