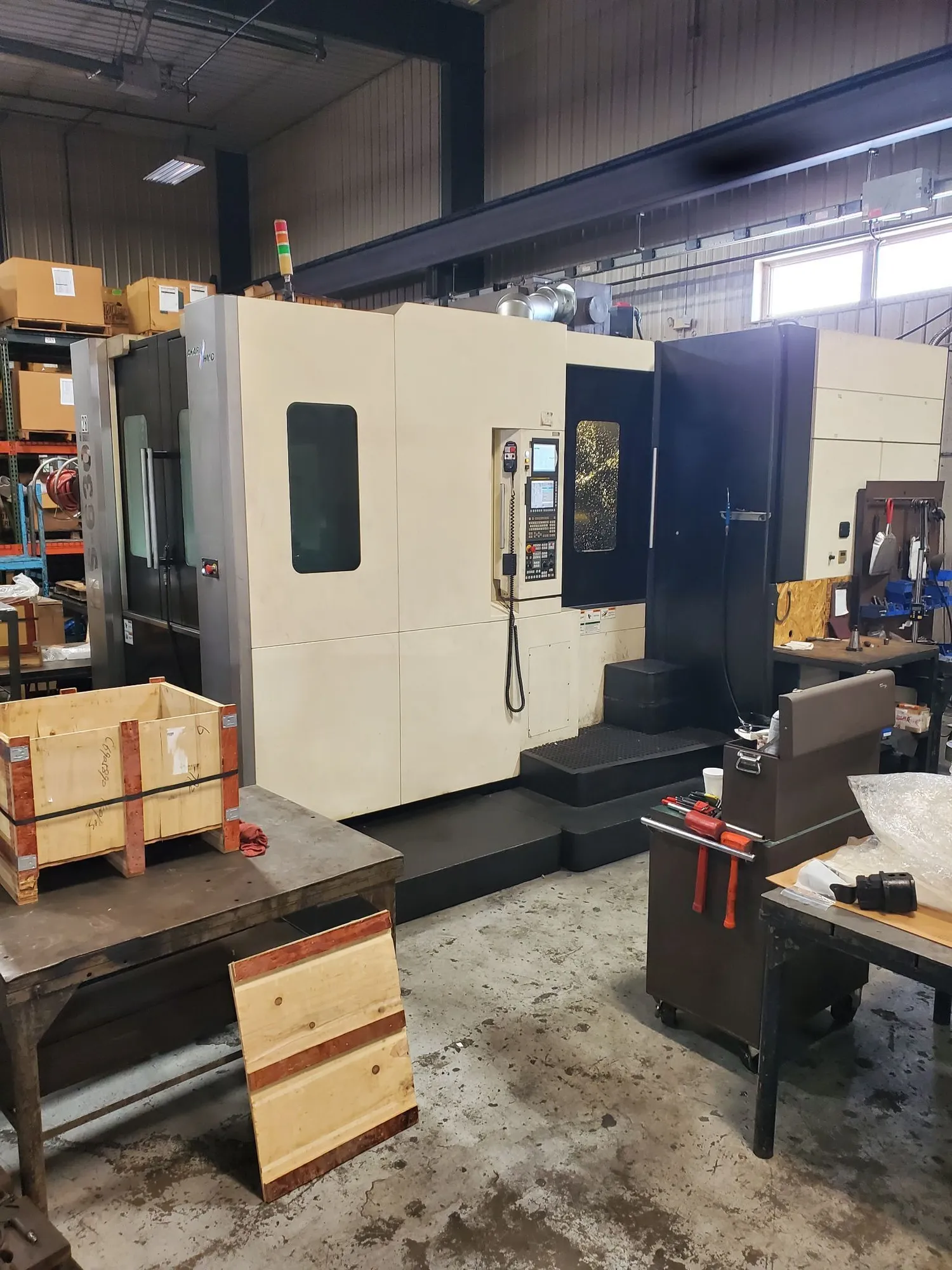

The Averex HS-630i is a high-speed, heavy-duty horizontal machining center designed for precision, efficiency, and expandability, featuring a 630mm pallet, a 60-tool automatic tool changer, a FANUC CNC control, and a heavy-duty one-piece casting for rigidity. It offers large X, Y, and Z travels (approximately 1,050mm x 900mm x 1,020mm), a powerful 50-taper spindle, options for high torque or high speed, and advanced components like THK roller ways for optimal performance in demanding machining applications.
| X-Axis | 41.3" | 1,049 mm |
| Y-Axis | 34.6" | 878.84 mm |
| Z-Axis | 40.2" | 1,021.1 mm |
| # Axis | 4 | 4 |
| Power | 73 hp | 54.4 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| Taper | Big Plus CT-50 | Big Plus CT-50 |
| # ATC | 60 | 60 |
| Pallet-W | 25" | 635 mm |
| Pallet-L | 25" | 635 mm |
| # of Pallets? | 2 | 2 |
| FMS System? | No | No |
| Control | CNC (FANUC Oi-MF) | CNC (FANUC Oi-MF) |
Fanuc 0iMF
8000RPM High Torque Spindle
73HP Main Spindle Motor
Big Plus CT-50
(2) 630mm Pallet APC with Full 4th Rotary Table (Tsudakoma) 22.2RPM
X 41.3″
Y 34.6″
Z 40.2″
With 39.4″ Diameter x 51.2″ Height Part Capacities
60 ATC
435 psi Coolant Through Spindle
Chip Conveyor-Scraper Type (W/ 810L Coolant Tank)
435 psi Coolant Through Spindle
Chip Conveyor-Scraper Type
