225 Ton Italpresse, Model GL-90, 200 Metric Tons (224 Tons Approx.), Upstroke, 35.5" x 19.75" Electrically Heated Platens (rated to approx. 570 F. / 300 C.), 12" stroke, 13" Daylight
| Tonnage | 225 T | 204.117 t |
| Heating Element | Electric | Electric |
| Design | Straight Side | Straight Side |
| Up or Downstroke? | Upstroke | Upstroke |
| Heated Platen (L-R) | 35.5" | 901.7 mm |
| Heated Platen (F-B) | 19.5" | 495.3 mm |
| Stroke | 12" | 304.8 mm |
| Daylight | 13" | 330.2 mm |
| Dimensions | 80” X 36” X 84” TALL | 80” X 36” X 84” TALL |
| Weight | 6,700 lbs. | 6,700 lbs. |

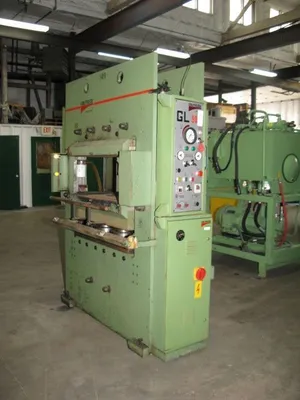

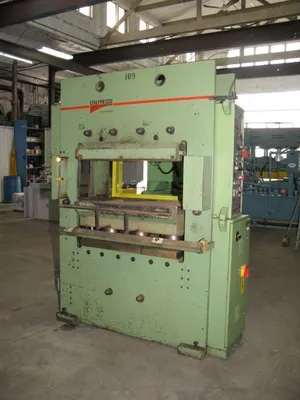

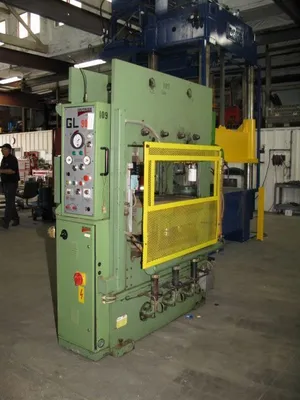

ITALPRESSE MODEL GL-90 Hot Platen Laminating Press
NEW IN 1990
Hot Plates: 35.5" x 19.75"
ELECTRIC PLATENS RATED TO APPROX 570 F (300C).
THREE 6” BORE CLAMP CYLINDERS WITH APPROX 12” MAX STROKE.
TWO 1.5” BORE SIDE CYLINDERS FOR FAST CLOSE (6” CYLINDERS PREFILLED).
MAX DAYLIGHT APPROX 13”.
APPROX 43.5” OPERATOR HEIGHT.

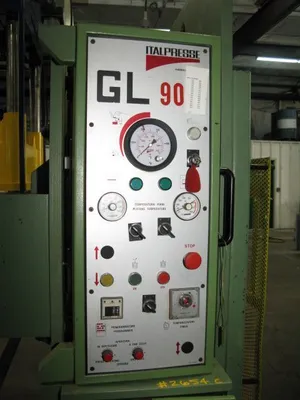

CONTROLS INCLUDE:
TONNAGE GAGE
TWO TEMP CONTROLLERS
CLOSE BUTTONS
ADJUSTABLE LIMIT SWITCH: ADJUSTABLE BEAM SENSOR SAFETIES ON FRONT

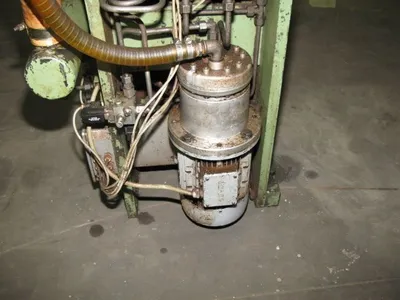

HYDRAULIC SYSTEM: 7.5 HP; 10 GALLON TANK; 480 VOLTS
OVERALL APPROX DIMENSIONS: 80” X 36” X 84” TALL.
APPROX 6,700 POUNDS. ITEM #2654C.
