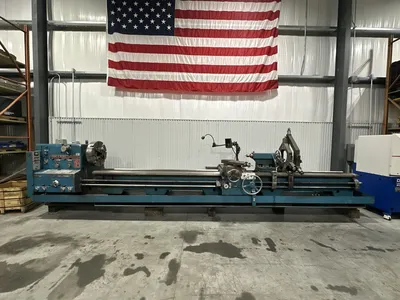

Large-capacity industrial engine lathe manufactured by Binns & Berry Lathes Ltd (Brighouse, Yorkshire, England). This is a heavy-duty long-bed machine from the Trident series class, built for machining large shafts and components in production and repair environments.
310” L x 64” W x 85” H
EQUIPT WITH:
x2 Removable Bed Section (8.25" each)16.5" Total Gap Length w/ 50" Gap Swing
24” Heavy-Duty 4-Jaw Chuck
X2 Steady Rest for Long Workpieces (x1 12"/ x1 23")
Taper Attachment
C80 DRO (Still Needs Testing)
Power Feed & Threading Capabilities
Integrated Work Light
Spindle speed: 1124
| Swing | 30" | 762 mm |
| Centers | 216" | 5,486.4 mm |
| Spindle Bore | 4.125" | 104.77 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 1,124 RPM | 1,124 RPM |
| Swing Over Cross Slide | 25" | 635 mm |
| Dimensions | 310” L x 64” W x 85” H | 310” L x 64” W x 85” H |
| Weight | 26,000 | 26,000 |
310” L x 64” W x 85” H
x2 Removable Bed Section (8.25" each)16.5" Total Gap Length w/ 50" Gap Swing
24” Heavy-Duty 4-Jaw Chuck
X2 Steady Rest for Long Workpieces (x1 12"/ x1 23")
Taper Attachment
C80 DRO (Still Needs Testing)
Power Feed & Threading Capabilities
Integrated Work Light
Spindle speed: 1124
