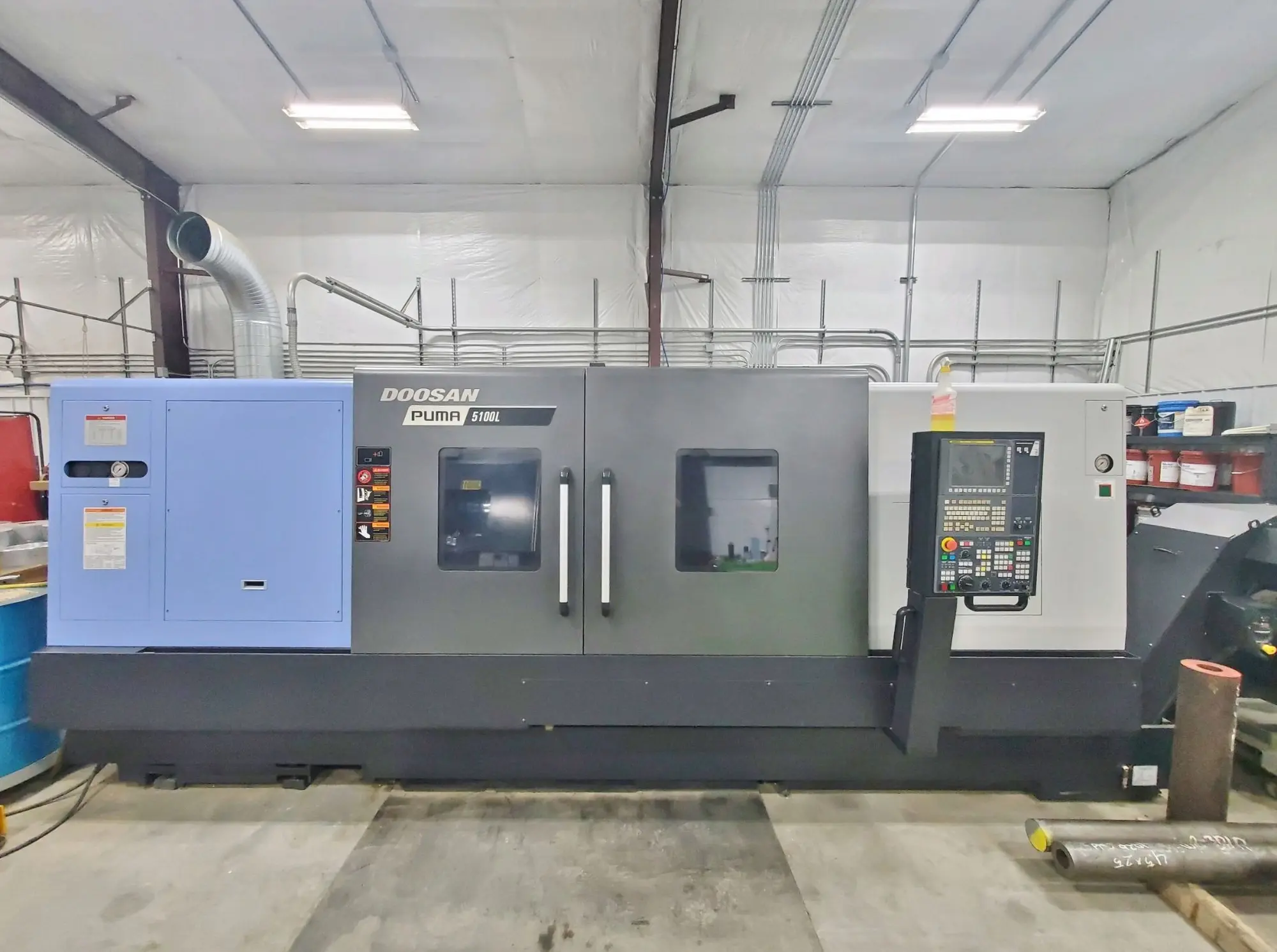

Doosan PUMA 5100LC CNC Lathe, 2018, used. Features a 35" swing and 84" machining length. Ideal for precision tasks requiring robust performance.
| Swing | 35.4" | 899.16 mm |
| Machining Length | 80.4" | 2,042.2 mm |
| # Axis | 2 | 2 |
| Chuck Size | 24" | 609.6 mm |
| Bar Capacity | 10.8" | 274.32 mm |
| Power | 60 hp | 44.7 kW |
| Max RPM | 1,000 RPM | 1,000 RPM |
| Turning Dia | 25.6" | 650.24 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC | CNC |
| Dimensions | 270 x 90 x 90 | 270 x 90 x 90 |
| Weight | 27000 | 27000 |
Max Swing: 35.4"
Max Cutting Diameter: 25.6"
Max Cutting Length: 80.4"
X-Axis Travel: 14.3"
Z-Axis Travel: 84.8"
Chuck Size: 24"
Spindle Bore: 10.8"
Spindle Nose: ISO 702-4 No. 20
Spindle Motor: 60 HP
Spindle Speed: 1,000 RPM
Rapid Traverse Rate X-Axis: 629 IPM
Rapid Traverse Rate Z-Axis: 787 IPM
Turret Positions: 12
Turret Type: BMT
Dimensions: 270" x 90" x 90"
Weight: 27,000 LBS
Fanuc 0i-TF Control (EZ-Guide i)
2-Speed Gearbox (60 HP Peak)
Box Ways
24" 3-Jaw Samchully FTC-610B Manual Chuck
Big Bore 10.8" Spindle Bore
Long Bed (80.4" Turning Length)
Rear Chuck Adapter
Programmable Tailstock
Chip Conveyor
High-Pressure Coolant Interface
Arbitrary Speed Threading
Ethernet & USB
