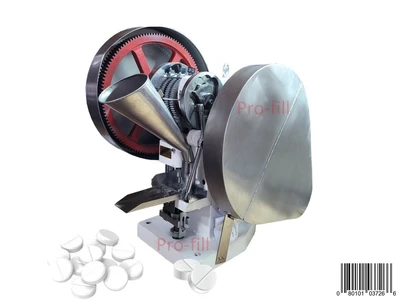

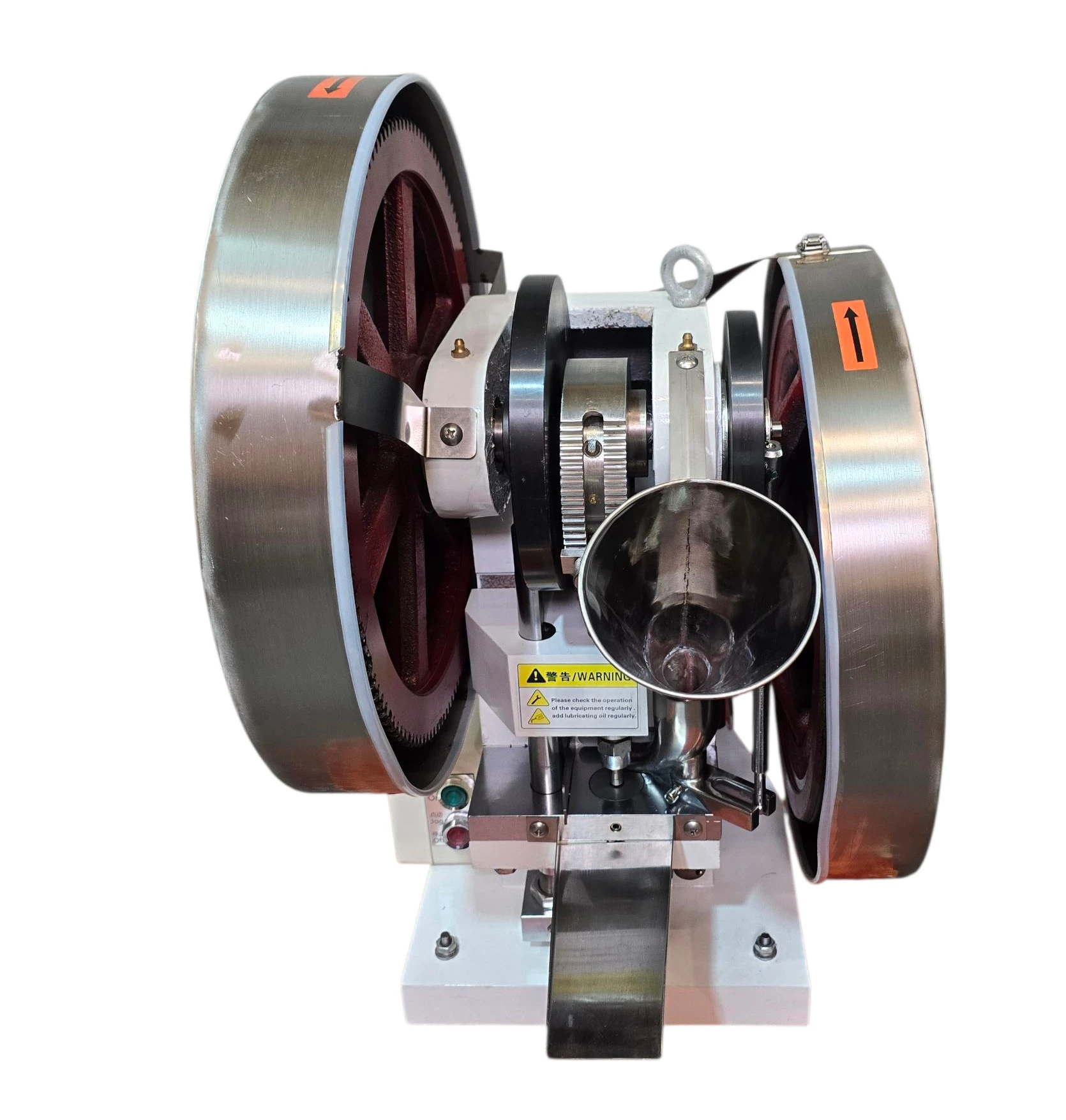

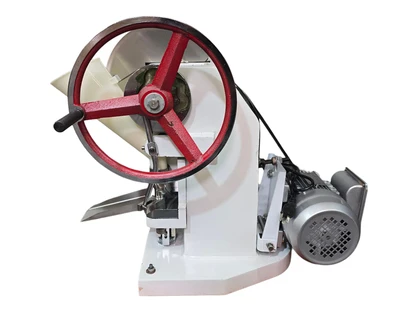

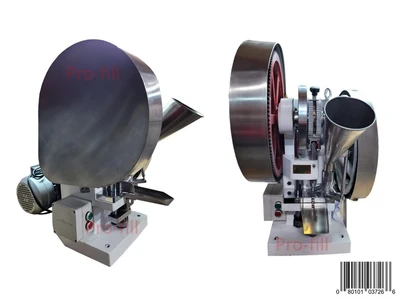

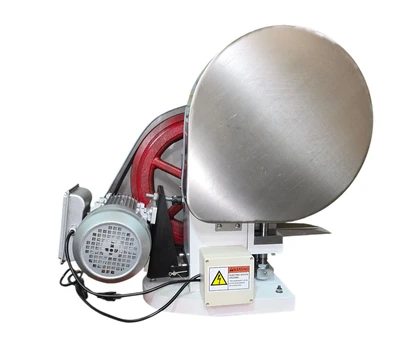

Tablet Press Machine TDP-6 This machine makes tablet pills. Specs:
Max Pressure of tablet: 60KN
Max Diameter of tablet: 25mm (Comes with a 10mm Die)
Max filling depth (mm): 18mm
Max Thickness of tablet: 10mm
Production capacity: 3600p/h
Power: 1.1kw1400r/min
Overall dimension(mm): 650x600x700
Weight:165kg
Voltage: 110v
Phase 1
Amp 30
Specs Motor:
Type: YL90L-4
No. 1906030
Hz 60
RPM 1690
Duty: S1
Ins. Class F
Cat 200uF/250v
Crun 30uF/450v
HP/Kw: 2/1.5
Voltage 110v
Rated ourrent: 9.44A
Weight: 20kg
Date: 2019.6
IP.44
Please note:
Beginning, April 1st, 2024, Per DEA Diversion Control Division regulations, we will be required to document all sales of TDPs (Pill Press Machines) Documentation will be as follows:
DEA has found that pill presses, punches, and dies that can be used to make fake pills containing fentanyl are being offered for sale on various e-commerce platforms. E-commerce entities selling pill press machines are generally “regulated persons” under the Controlled Substances Act, 21 U.S.C. § 802(38), and therefore, subject to the recordkeeping, identification, and reporting requirements of 21 U.S.C. § 830. As regulated entities, e-commerce platforms are required to comply with CSA recordkeeping and reporting requirements on the distribution, importation, and exportation of pill press machines. Please see more detailed guidance on reporting requirements at https://www.deadiversion.usdoj.gov/.
Max Pressure of tablet: 60KN
Max Diameter of tablet: 25mm (Comes with a 10mm Die)
Max filling depth (mm): 18mm
Max Thickness of tablet: 10mm
Production capacity: 3600p/h
Power: 1.1kw1400r/min
Overall dimension(mm): 650x600x700
Weight:165kg
Voltage: 110v
Phase 1
Amp 30
Type: YL90L-4
No. 1906030
Hz 60
RPM 1690
Duty: S1
Ins. Class F
Cat 200uF/250v
Crun 30uF/450v
HP/Kw: 2/1.5
Voltage 110v
Rated ourrent: 9.44A
Weight: 20kg
Date: 2019.6
IP.44
