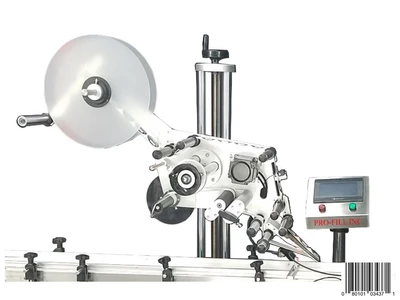

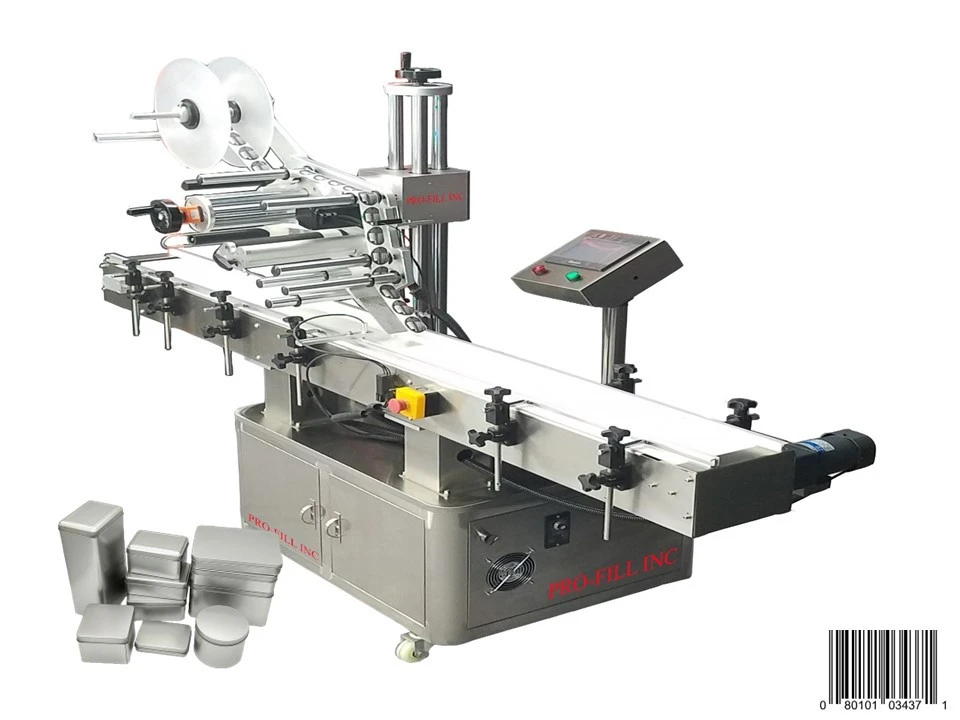

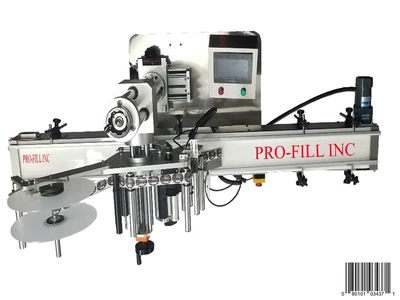

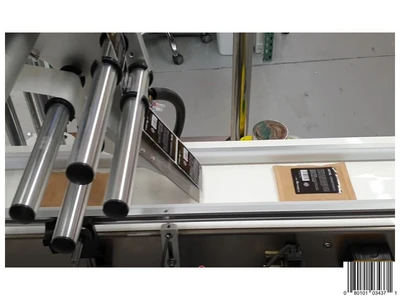

Automatic Flat Labeling Machine PRO 1-Side What is it for?This fully automatic label machine puts the label on a flat surface. It can be on the top, bottom, or side as long as the surface is flat. Comes with:
Adjustable Legs
Brush
Conveyor
Conveyor Motor
Electric Box
Hand Wheel (Up & Down)
Hand Wheel (Left & Right)
Label Pulling System
Label Roll
Lable Sensor
Label Guide Rail
Label Recycle System
Motor
Power On/Off
Touch Screen
Up & Down System
User manual via email
Specs:
Applicable label range: high10-100mm / Length: 10-300mm
Labeling accuracy: ±1mm
Label roll inner diameter: 76mm
Labeling Speed: MAX 200 pcs/ min (depending on the length of the label and the size of the object to be attached)
Maximum label supply: out diameter 350mm
Power Consumption :<1KW
Voltage Specification: Single Phase (AC110v or 220v 50/60hz)
Adjustable Legs
Brush
Conveyor
Conveyor Motor
Electric Box
Hand Wheel (Up & Down)
Hand Wheel (Left & Right)
Label Pulling System
Label Roll
Lable Sensor
Label Guide Rail
Label Recycle System
Motor
Power On/Off
Touch Screen
Up & Down System
User manual via email
Applicable label range: high10-100mm / Length: 10-300mm
Labeling accuracy: ±1mm
Label roll inner diameter: 76mm
Labeling Speed: MAX 200 pcs/ min (depending on the length of the label and the size of the object to be attached)
Maximum label supply: out diameter 350mm
Power Consumption :<1KW
Voltage Specification: Single Phase (AC110v or 220v 50/60hz)
