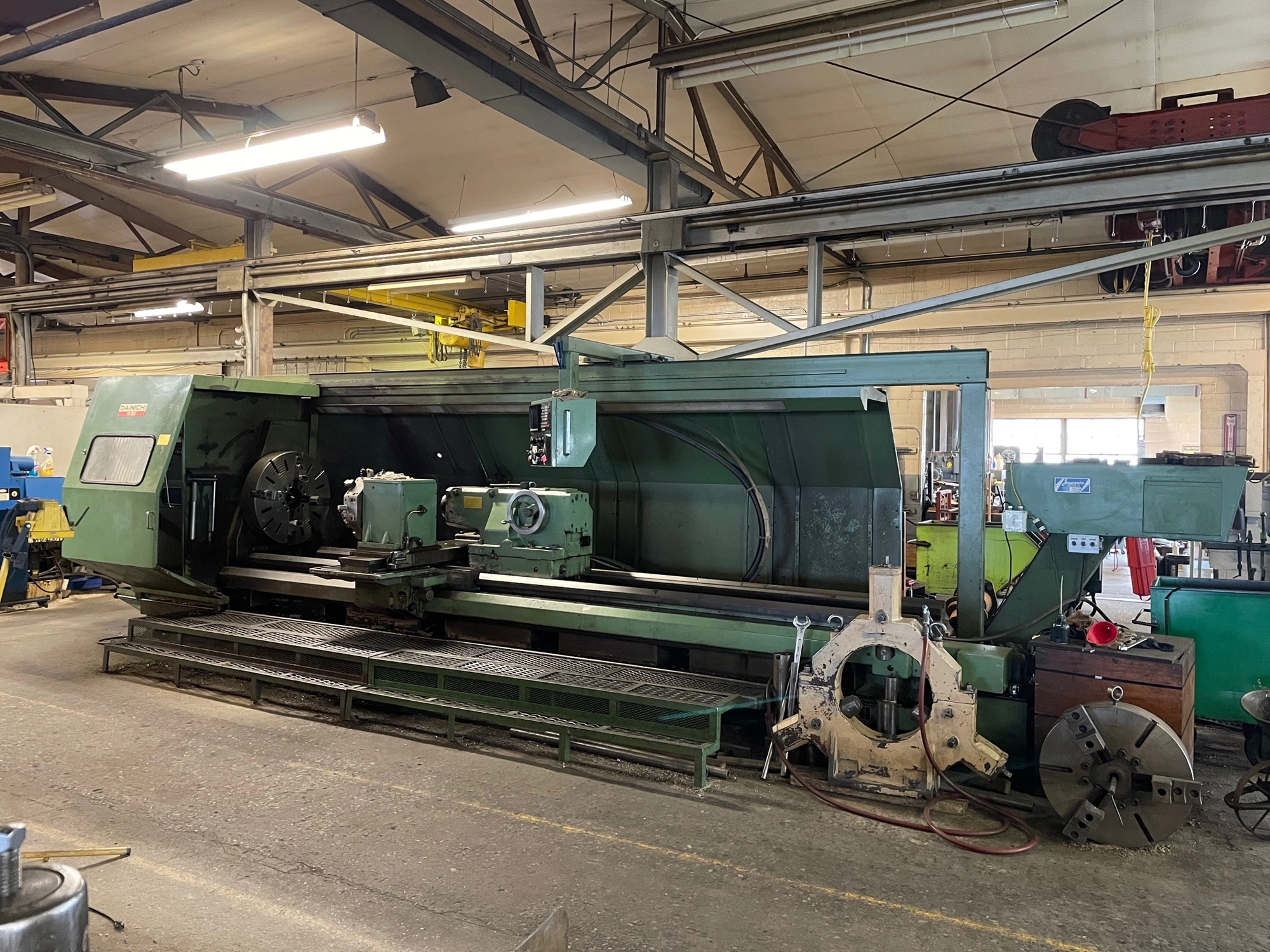

31" Chuck, 157" Between Centers with 8-Position Turret. Heavy duty CNC Lathe, Japanese built, ideal for large capacity turning and interrupted cutting.
| MAX SWING | 37.375" | 949.32 mm |
| MAX CUTTING DIAMETER | 20.44" | 519.18 mm |
| DISTANCE BETWEEN CENTERS | 157" | 3,987.8 mm |
| CHUCK SIZE | 31.25" | 793.75 mm |
| BAR CAPACITY | 9.375" | 238.12 mm |
| SPINDLE MOTOR | 60 hp | 44.7 kW |
| SPINDLE SPEED | 750 RPM | 750 RPM |
| TURRET POSITIONS | 8 | 8 |
FANUC 6T CNC CONTROL
31.25" 4-JAW MANUAL CHUCK
24" 3-JAW HYDRAULIC CHUCK
HYDRAULIC ACTUATOR PRESENT IN HEADSTOCK
JORGENSON CHIP CONVEYOR
8-POSITION TURRET
(3) STEADY RESTS INCLUDED IN SALE OF MACHINE
** MACHINE IS IN PLANT, UNDER POWER
