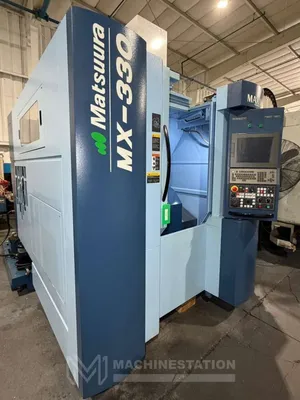

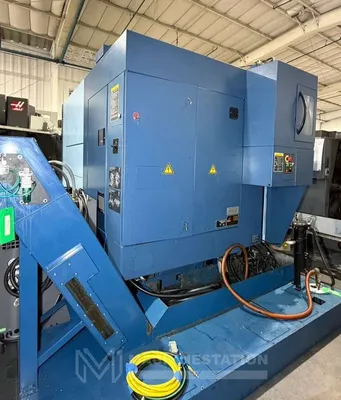

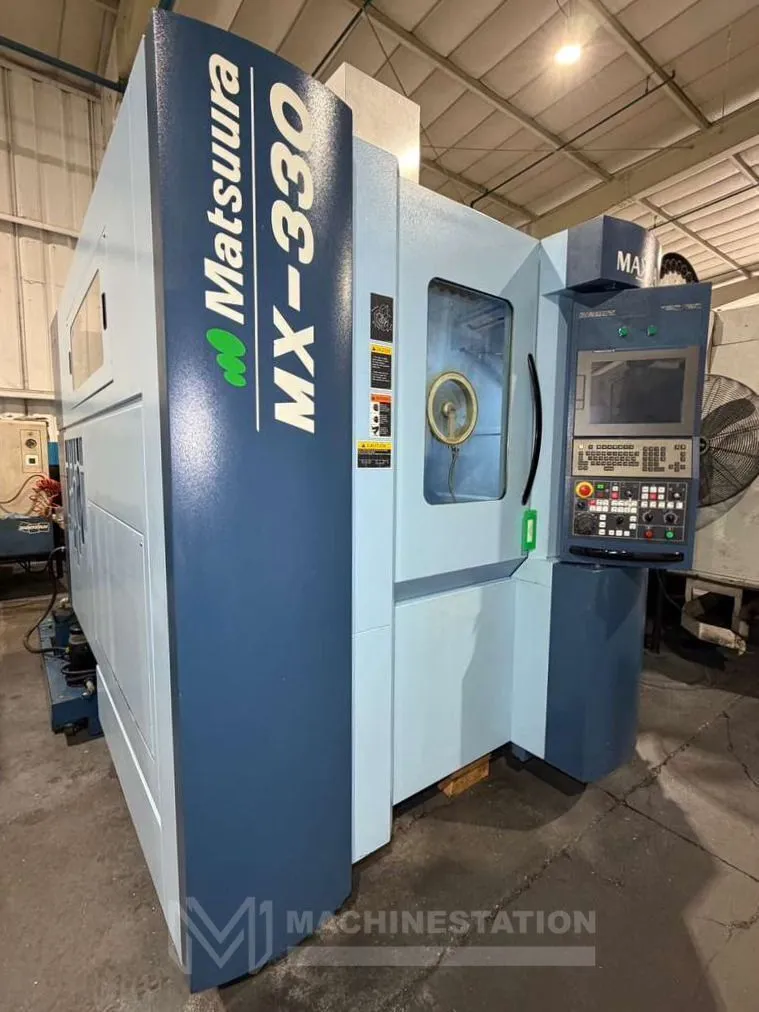

USED 2016 MATSUURA MX-330

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

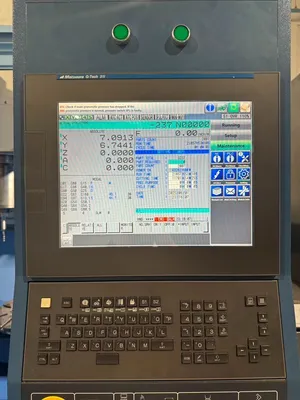

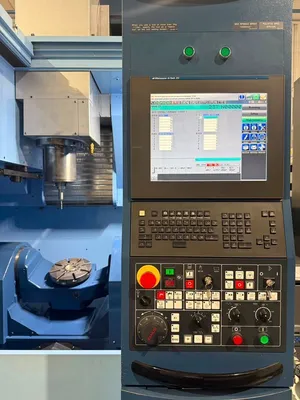

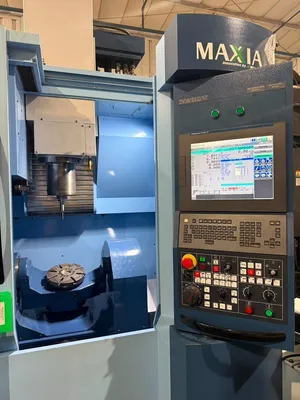

Matsuura G-Tech 31i (Fanuc) Touch Screen CNC Control

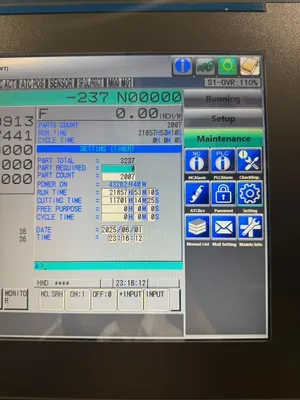

11,701 Hours Cutting Time
5-Axis Simultaneous Machining
Rigid Tapping
Spindle Orientation
Coolant System

Travels:
X Axis: 17.13″
Y Axis: 18.31″
Z Axis: 22.05″
A Axis: -125° to +10°
C Axis: 360° Continuous

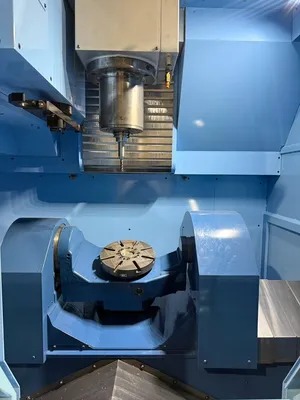

Trunnion Table:
Table Diameter: 9.84″
Max Workpiece Diameter: 12.99″
Max Workpiece Height: 12.59″
Max Weight on Table: 176 lbs

Spindle:
Taper Size: CAT-40
Spindle Speed: 15,000 RPM
Spindle Power: 25 HP

Feed Rates:
Rapid Traverse Rate X, Y & Z Axis: 1,574 IPM
Cutting Feed Rate X, Y & Z Axis: 1,574 IPM
Rapid Traverse Rate A / C: 17 / 33 RPM

Tool Changer:
Capacity: 60 Tools
Taper: CAT-40
Max Tool Diameter: 3.14″
Max Tool Diameter (Without Adjacent Tools): 5.90″
Max Tool Length: 11.81″
Max Tool Weight: 22 lbs

General:

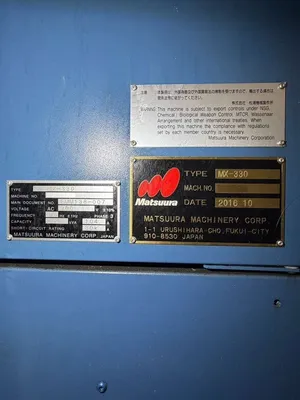

Power Requirement: AC 220V / 3-Phase / 50 / 60 Hz / 30 KVA
Dimensions: 205″ x 183″ x 126″ High Approx.
Weight: 13,860 lbs Approx.
Made In Japan

9.84″ Diameter Rotary Table
15,000 RPM High Speed Spindle

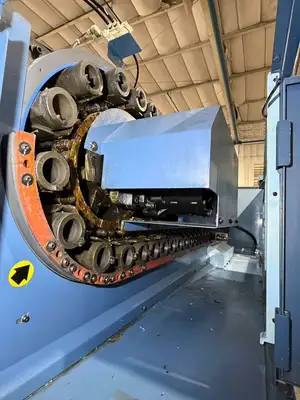

60 Station Automatic Tool Changer
Renishaw Receiver Installed
Renishaw Tool Probe
Through Spindle Coolant

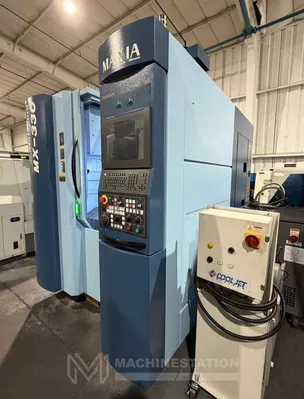

Cool Jet Coolant Unit

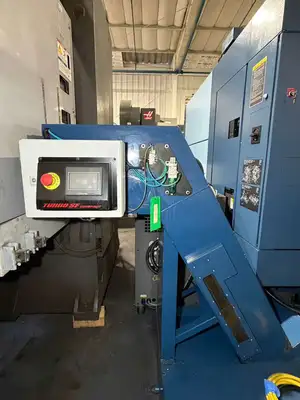

LNS Chip Conveyor
