| Swing | 600 mm | 23.622" |
| Machining Length | 2,000 mm | 78.74" |
| # Axis | 2 | 2 |
| Bar Capacity | 89 mm | 3.5039" |
| Power | 26 kW | 34.9 hp |
| Max RPM | 2,500 RPM | 2,500 RPM |
| Turning Dia | 450 mm | 17.717" |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Fanuc 18-T Series CNC Control) | CNC (Fanuc 18-T Series CNC Control) |
| Dimensions | 4,940 mm x 2331 mm x 2,190 mm High | 4,940 mm x 2331 mm x 2,190 mm High |
| Weight | 9,000 kg | 9,000 kg |
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
Features:

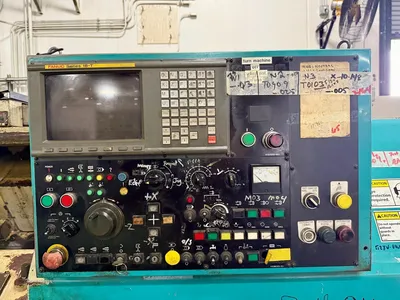

Fanuc 18-T Series CNC Control
Heavy Duty Box Guideways Construction
Rigid Tapping
Automatic Lubrication System
Coolant System
Capacity:
Max Turning Diameter : 450 mm
Max Swing Over Bed : 600 mm
Max Turning Length: 2000 mm
Max Bar Capacity : 89 mm
Distance Between Centers : 2000 mm
Travels:
X Axis Travel : 250 mm
Z Axis Travel : 2020 mm
X Axis Rapid Traverse Rate : 12000 mm/min
Z Axis Rapid Traverse Rate : 16000 mm/min
Spindle:
Spindle Nose: A2-11
Spindle Bore: 104 mm
Spindle Speed: 20 – 2500 RPM
Spindle Motor: 26 kW
Turret:
Capacity: 10 Station
Tool Holders Type: Bolt Mounted
Tailstock:
Tailstock Taper: MT-5
General:
Power: 220v / 3-phase / 60 Hz
Machine Diemensions: 4,940 mm x 2331 mm x 2,190 mm High
Machine Weight: 9,000 kg

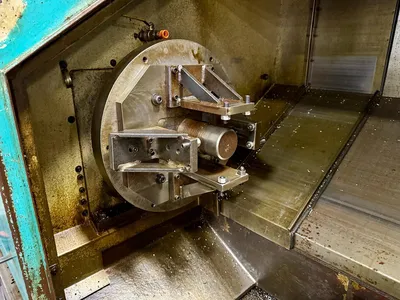

400 mm Fixture Plate Mounted on Spindle (300 mm – 375 mm Chuck Capable)

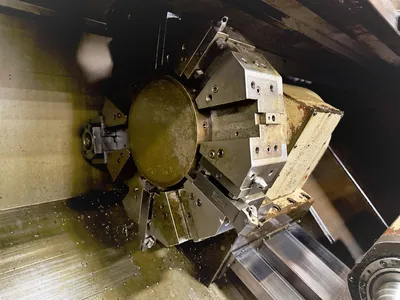

10 Station Automatic Turret
A2-11 Gear Head Spindle
2500 RPM Spindle
104 mm Spindle Bore

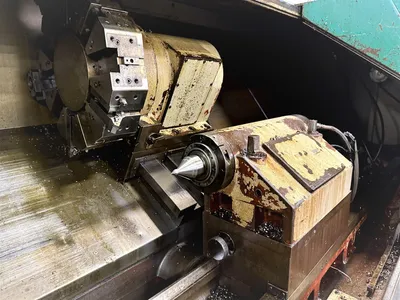

Tailstock

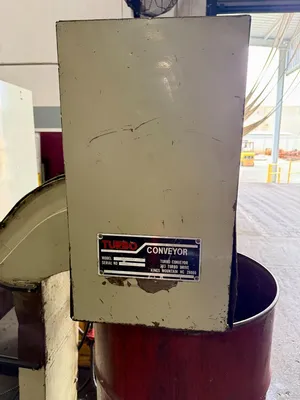

Chip Conveyor
