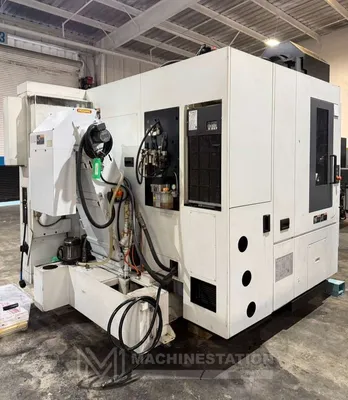

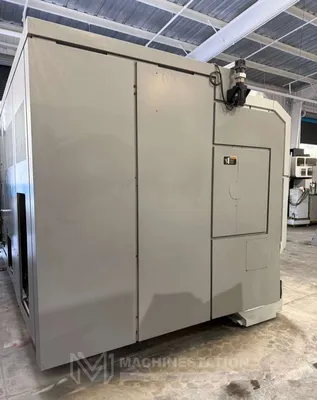

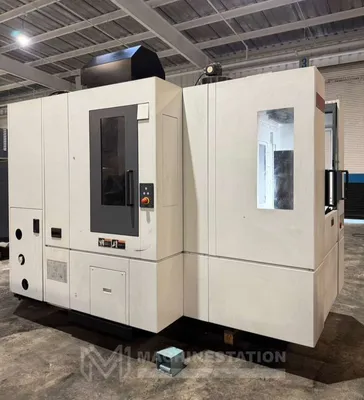

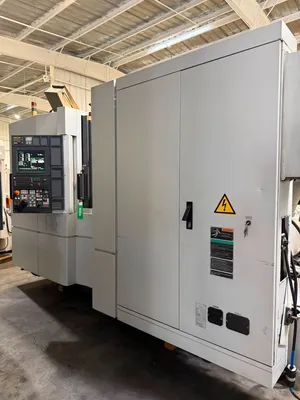

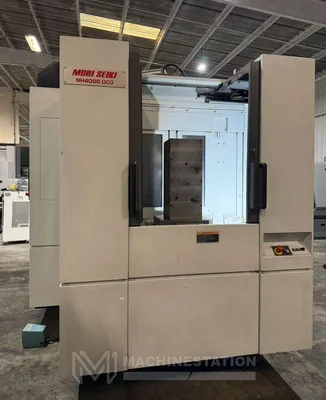

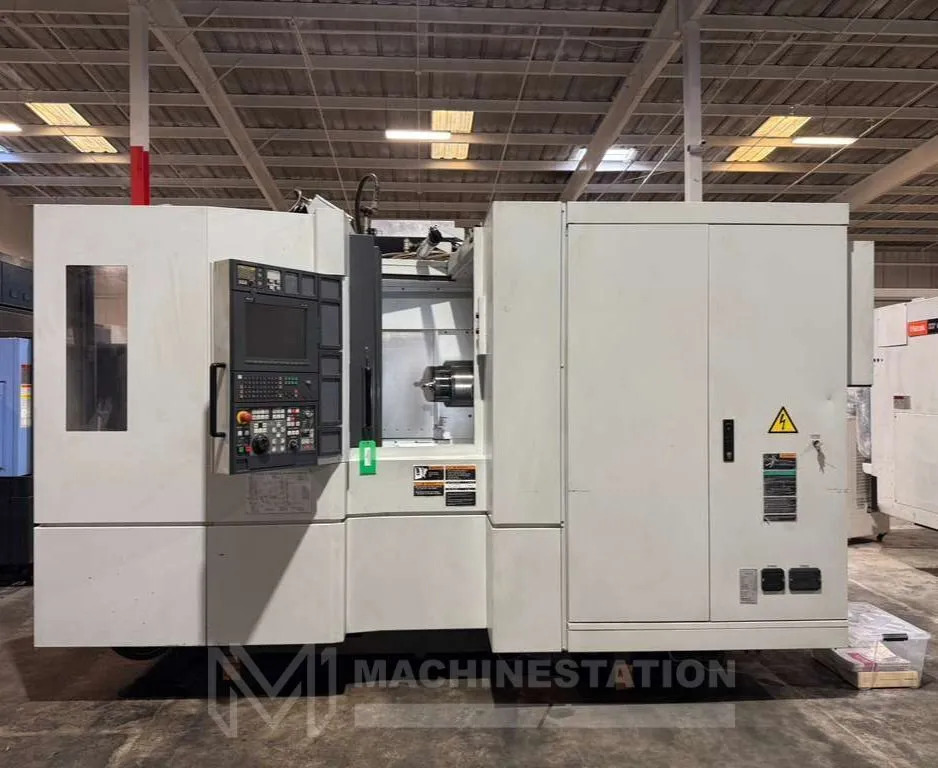

USED 2008 MORI SEIKI NH4000 DCG

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

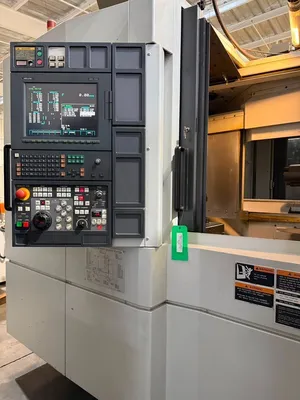

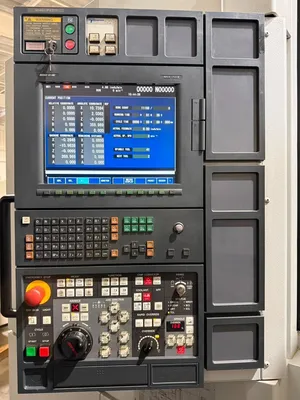

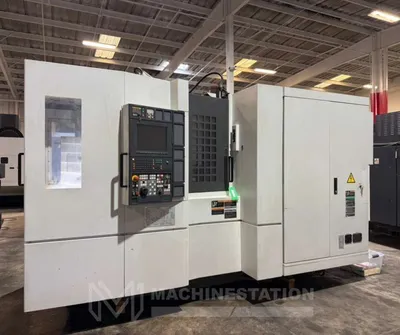

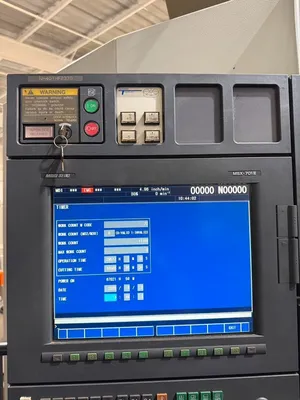

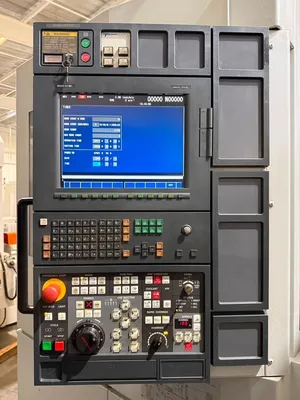

Mori Seiki MSX-701III (Fanuc) CNC Control

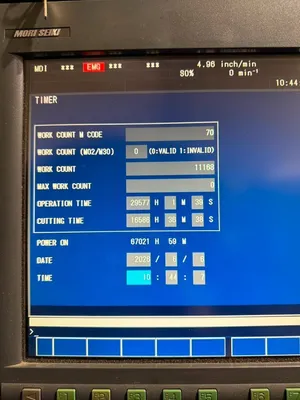

16,586 Hours Cutting Time
Pallet Seat Detection
Spindle Orientation
Rigid Tapping
Fast Rapid Traverse Rate

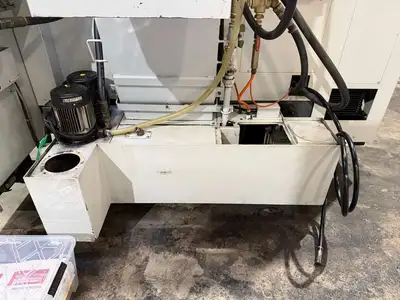

Coolant System

Travels:
X Axis: 22.0″
Y Axis: 22.0″
Z Axis: 24.8″
Distance From Pallet Surface to Spindle Center: 3.1″ – 25.2″

Table:
Length: 15.7″
Width: 15.7″
Max Weight on Table: 880 lbs
Max Workpiece Swing Diameter: 24.8″
Max Workpiece Height: 35.4″
Index Time: 8 seconds 90°

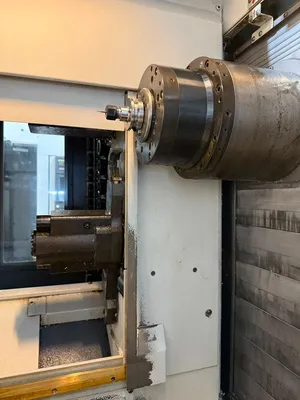

Spindle:
Taper Size: BT-40
Max. Speed: 14,000 RPM
Spidle Motor Power: 30 HP
Feed rates:
Rapid Traverse Rate X,Y,Z Axis : 1968 Inch Per Minute
Cutting Feedrate X,Y,Z Axis : 1968 Inch Per Minute

Tool changer:
Capacity: 60 Tools
Max Tool Diameter (without adjacent tools): 5.11″
Max Tool Diameter (with adjacent tools): 2.70″
Max Tool Length: 15.7″
Max Tool Weight: 17.6 lbs.
Tool to Tool Change Time: 0.9 Second

General:
Air Required: 90 psi, 4 scfm

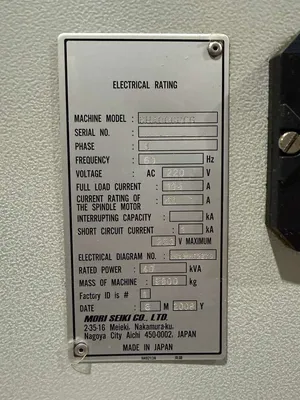

Power: 40 kva / 220v / 3-Phase
Overall Dimensions: 157.6″ X 94.4″ x 106.7″ High
Weight: 21,605 lbs. Approx.

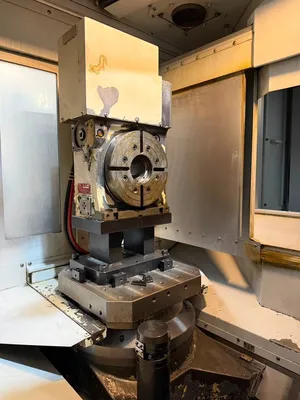

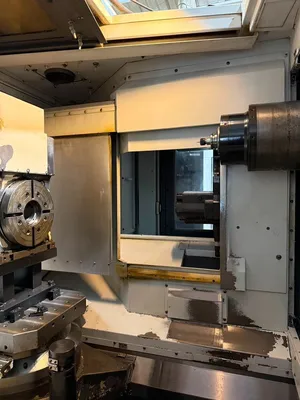

Tsudakoma RBA 250K 5th Axis Rotary Table Installed on Table
14,000 RPM High Precision Spindle
Twin Pallet Changer

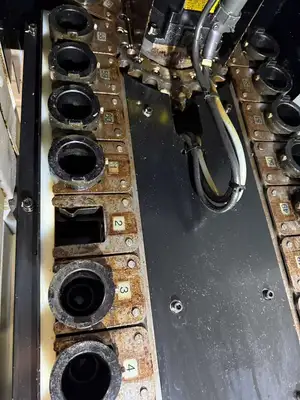

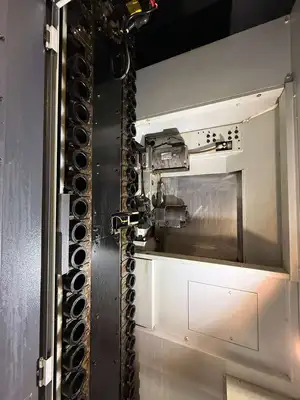

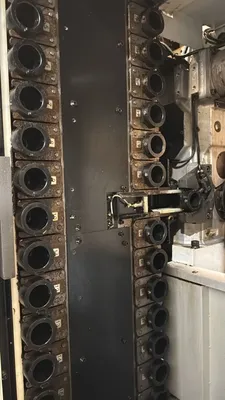

60 Station Automatic Tool Changer
Through Spindle Coolant
Chip Conveyor
Books & Manuals
