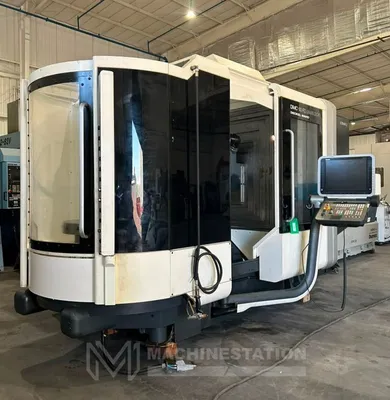

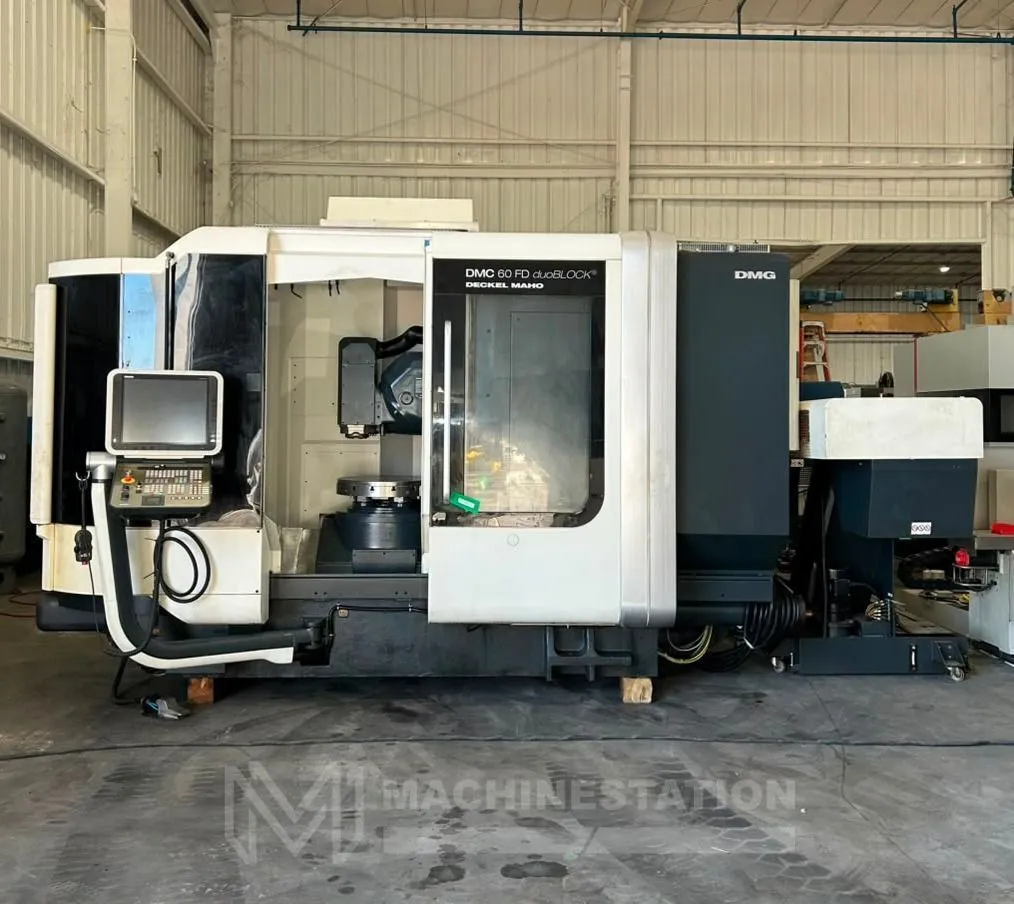

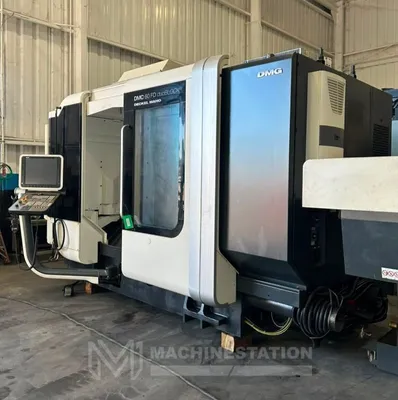

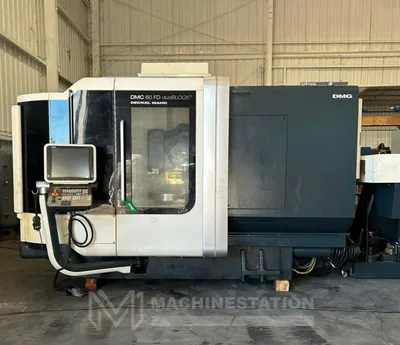

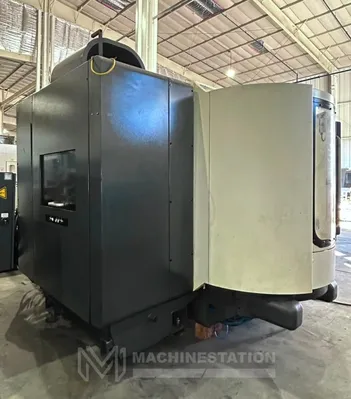

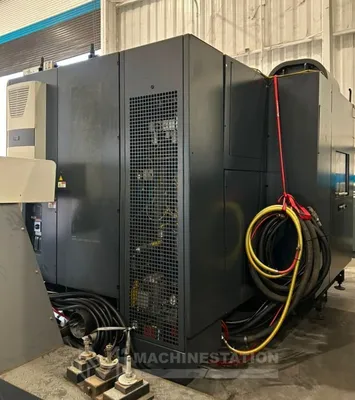

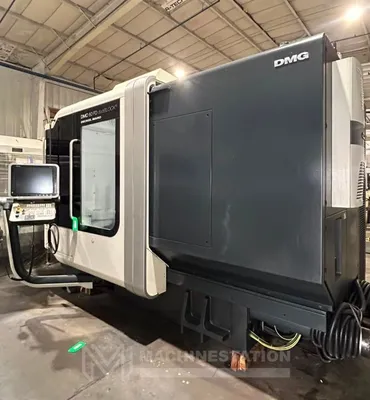

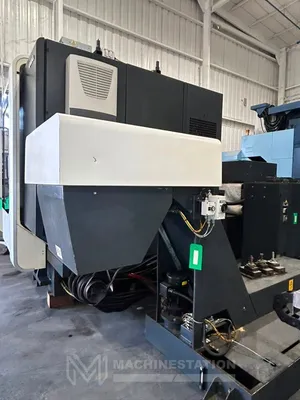

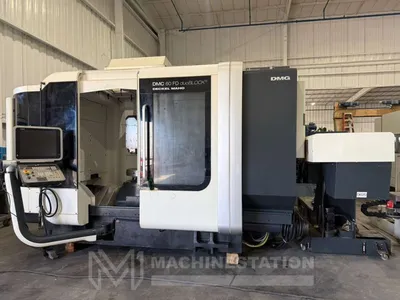

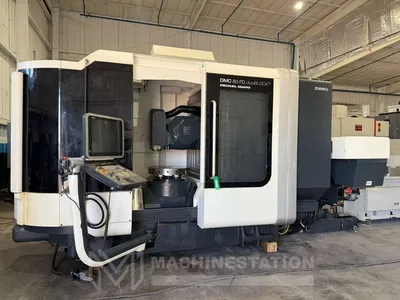

USED 2011 DMG DMC 60 FD DUOBLOCK

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

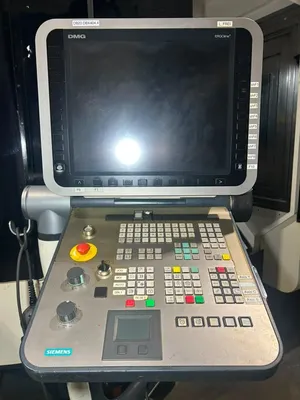

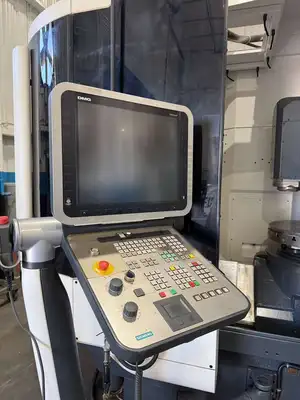

Siemens 840D DMG ERGOline CNC Control
Full 5-Axis Simultaneous Machining
Rigid Tapping
Spindle Orientation
Coolant Tank

Travels:
X Axis: 23.62″
Y Axis: 27.56″
Z Axis: 23.62″
B Axis: -30° To +180°
C Axis: 360° Continuous

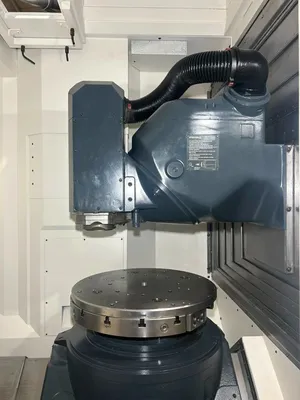

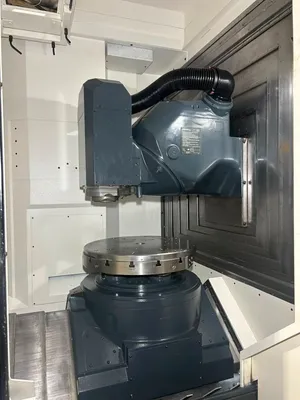

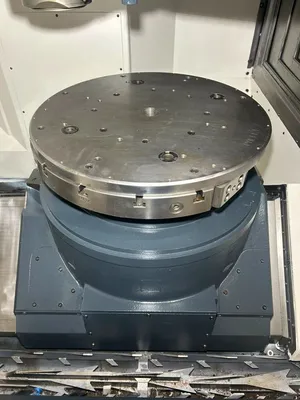

Table:
Number of Pallets: 2
Table Diameter: 24.80″
Maximum Table Load: 1,102 lbs
Table Speed (Turning Mode): 1,200 RPM
Maximum Workpiece Diameter: 27.56″
Maximum Workpiece Height: 33.46″

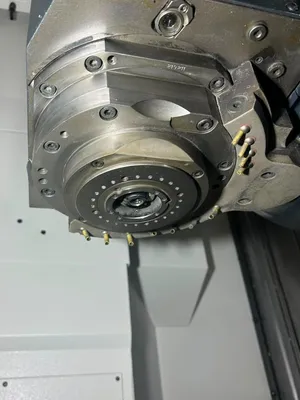

Spindle:
Taper Size: HSK-A63
Maximum Speed: 12,000 RPM
Power: 46 HP

Feed Rates:
Rapid Traverse X, Y & Z: 2,362 IPM
Cutting Feed Rate: 2,362 IPM
B-Axis Rapid Traverse: 30 RPM
C-Axis Rapid Traverse: 30 RPM

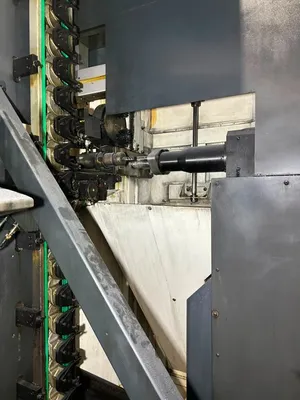

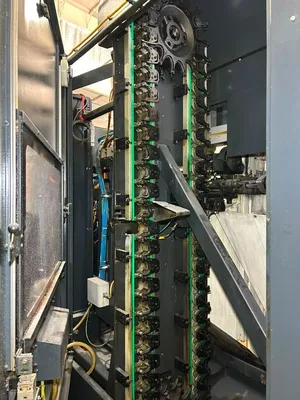

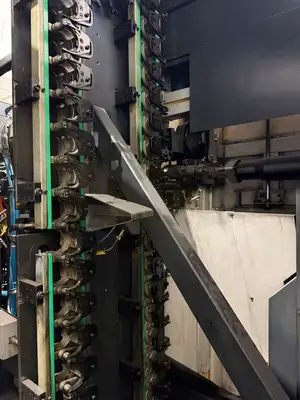

Tool Changer:
Capacity: 60 Station
Taper: HSK-A63
Maximum Tool Diameter: 4.72″
Maximum Tool Length: 17.71″
Maximum Tool Weight: 33 lbs

General:
Power: 400v / 3-phase / 60 Hz / 83 kva
Machine Overall Dimensions: 198″ x 133″ x 122″ High Approx.
Machine Weight: 22,000 lbs Approx.
