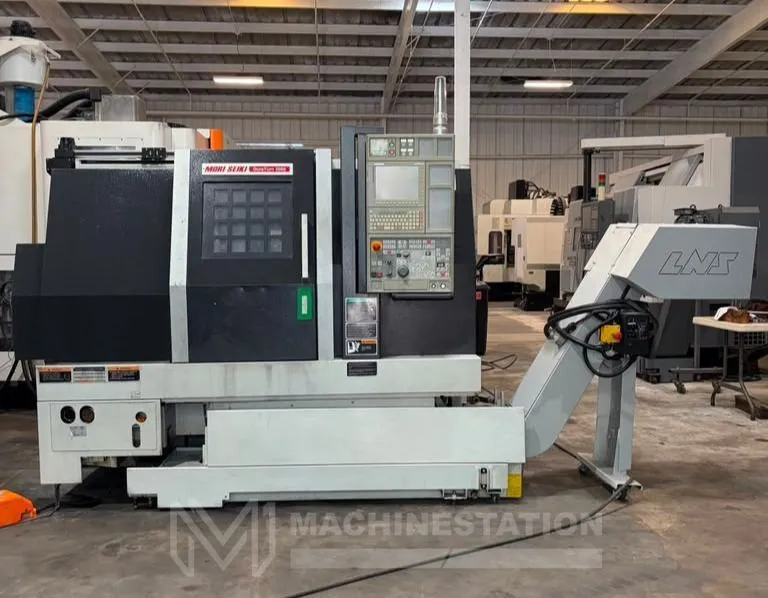

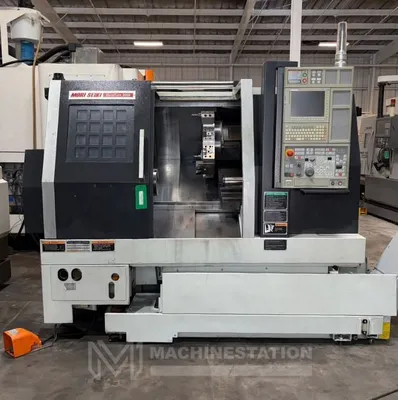

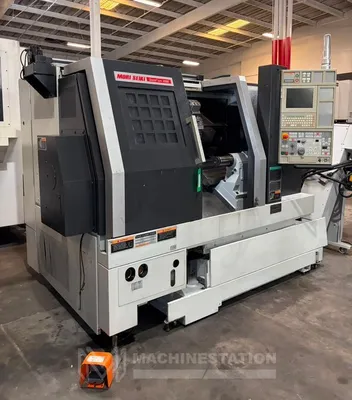

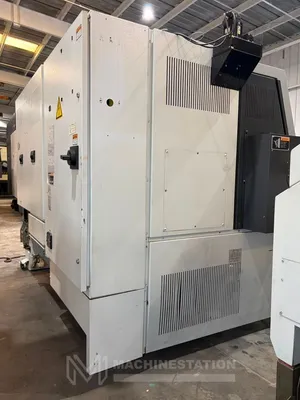

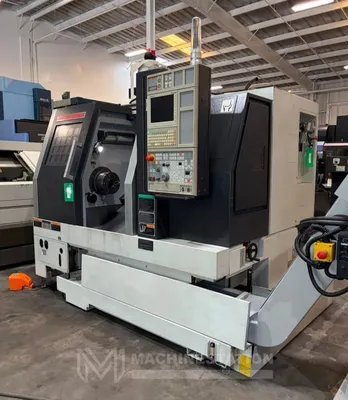

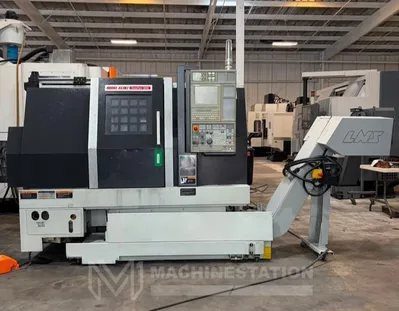

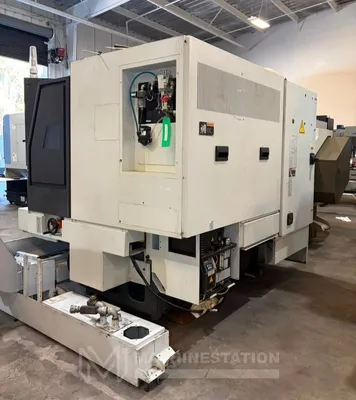

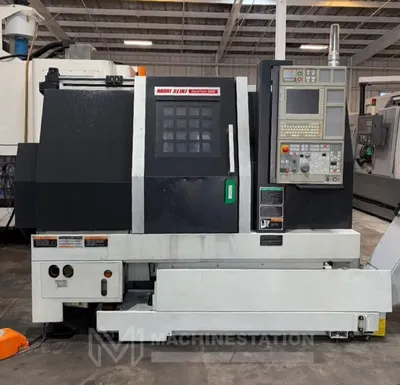

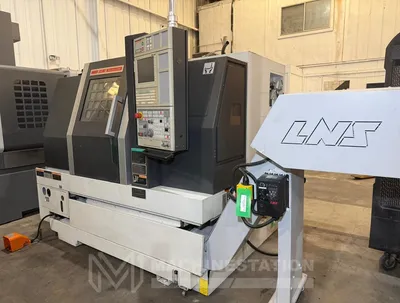

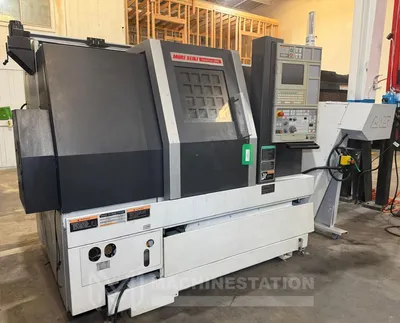

USED 2012 MORI SEIKI DURATURN 2050

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

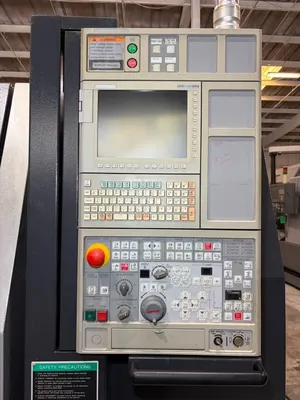

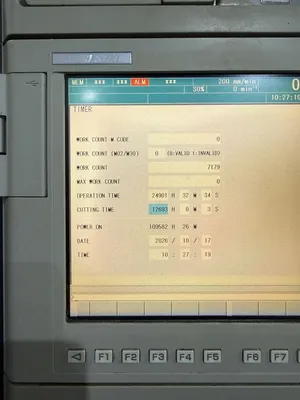

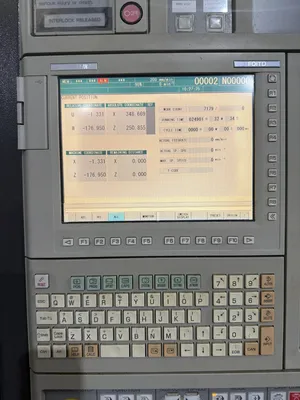

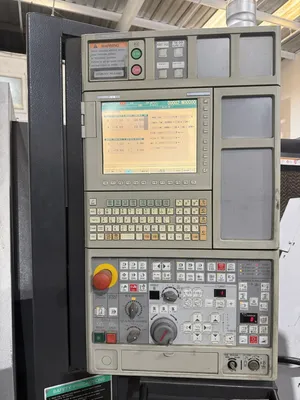

Fanuc Oi-TD Series CNC Control
PCMCIA Card Slot
Rigid Tapping

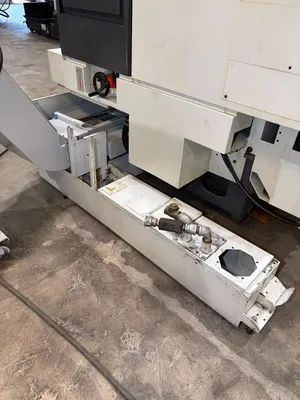

Coolant Tank without Pump

Capacity:
Max Turning Diameter: 14.50″
Max Turning Length: 20.80″
Max Bar Capacity: 2.00″
Swing Over Bed: 24″
Swing Over Cross Slide: 18.90″

Travels:
X Axis Travel: 8.3″
Z Axis Travel: 22.4″
Rapid Traverse X Axis: 945 IPM
Rapid Traverse Z Axis: 945 IPM

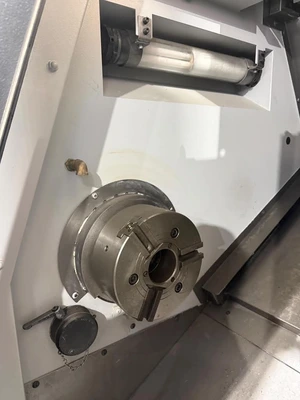

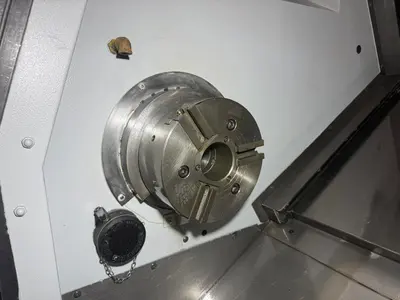

Spindle:

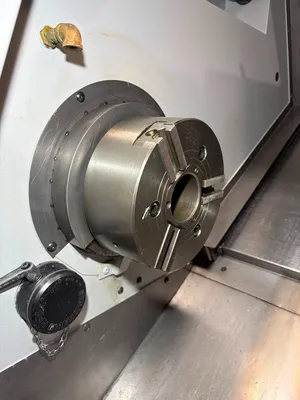

Spindle Nose: A2-6
Spindle Bore: 2.56″
Spindle Speed: 4000 RPM
Spindle Motor: 18 HP

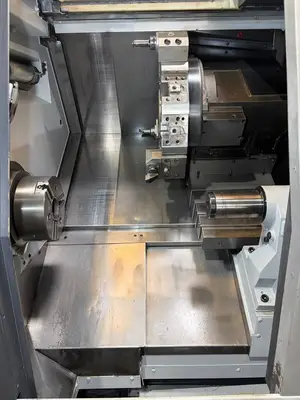

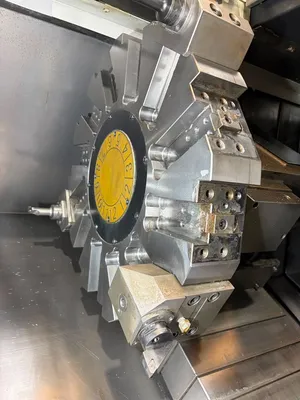

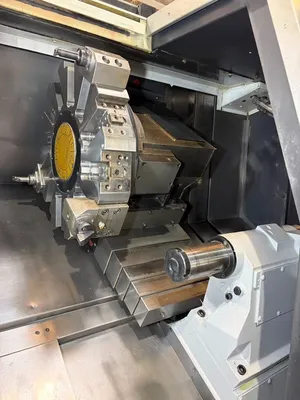

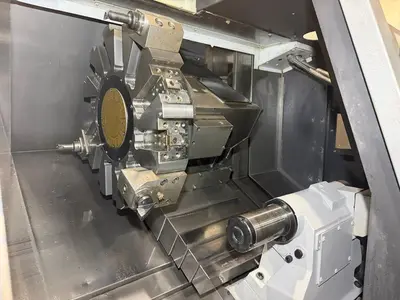

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.25 Second

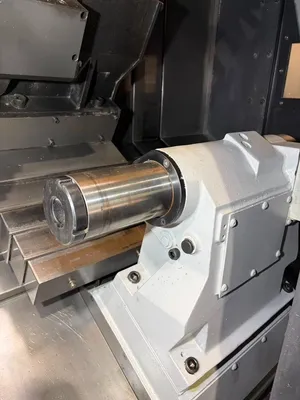

Tailstock:
Tailstock Taper: MT-4
Tailstock Quill Dia.: 3.1″
Tailstock Quill Travel: 3.14″

General:

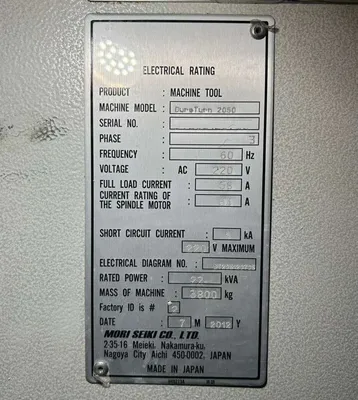

Power Source: AC 220V / 3-Phase / 60 Hz
Power Requirement: 22 kVA
Machine Dimensions: 86″ x 72″ x 69″ High
Machine Weight: 8,378 lbs Approx.
