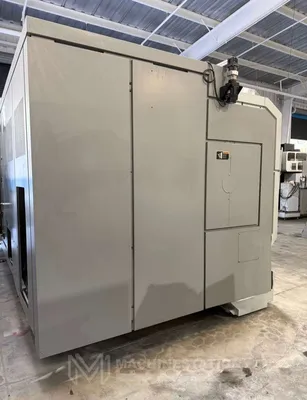

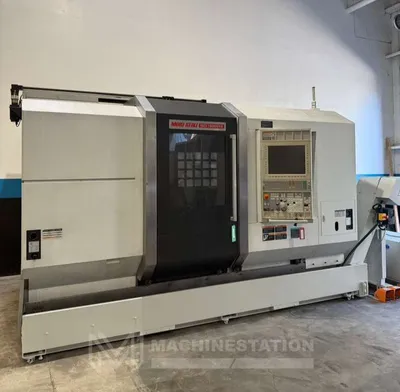

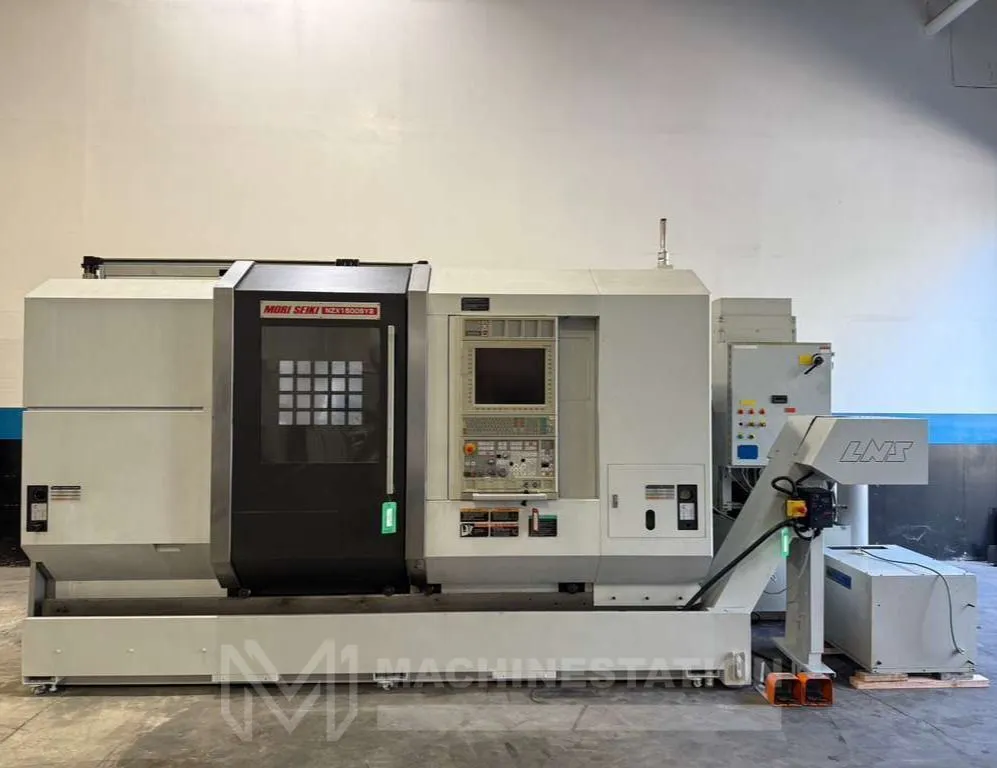

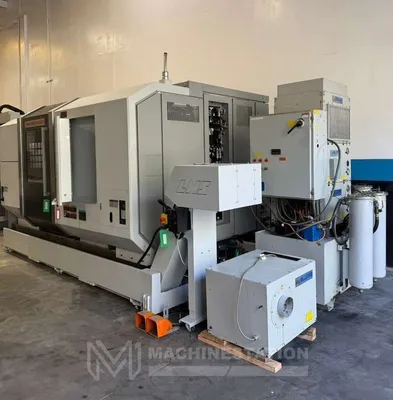

USED 2012 DMG MORI NZX 1500/800SY2

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:
Fanuc 31i-A Series CNC Control
PCMCIA Card Slot & USB Port

Capacity:
Max Turning Diameter: 11.8″
Max Turning Length: 31.5″
Max Bar Capacity: 2.0″
Max Swing Over Bed: 31.5″

Travels:
X1, X2 Axis Travel: 8.3″
Y1, Y2 Axis Travel: 4.3″ (+ 2.6″/- 1.8″)
Z1, Z2 Axis Travel: 31.9″
B Axis Travel (Sub Spindle): 35.4″
C Axis Indexing: 360 Degree (0.001)
Rapid Traverse Rate X1, X2 Axis: 1181 IPM
Rapid Traverse Rate Y1, Y2 Axis: 787 IPM
Rapid Traverse Rate Z1, Z2 Axis: 1968 IPM

Main Spindle:
Main Spindle Nose: A2-5
Main Spindle Bore: 2.4″
Main Spindle Speed: 6000 RPM
Man Spindle Motor: 30 HP
Sub Spindle:
Sub Spindle Nose: A2-5
Sub Spindle Bore: 2.4″
Sub Spindle Speed: 6000 RPM
Sub Spindle Motor: 30 HP

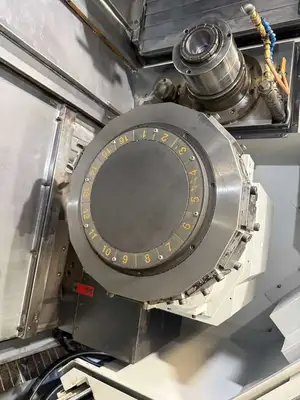

Upper Turret:
Turret Capacity: 16 Stations
Rotary Tool Speed: 6,000 RPM
Rotary Tool Motor: 10 HP

Lower Turret:
Turret Capacity: 16 Stations
Rotary Tool Speed: 6,000 RPM
Rotary Tool Motor: 10 HP

General:

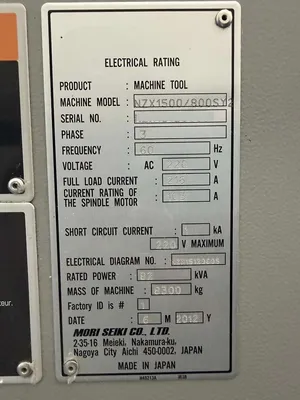

Power Source: AC 220v, 3-Phase, 60 Hz
Power Requirement: 82 kva
Overall Dimensions: 173″ x 111″ x 91″ High Approx.
Weight : 18,300 lbs Approx.

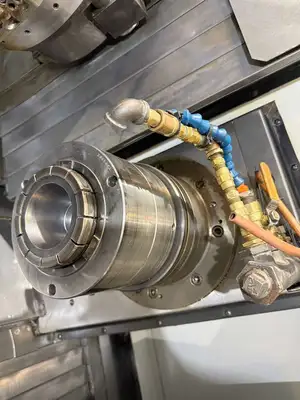

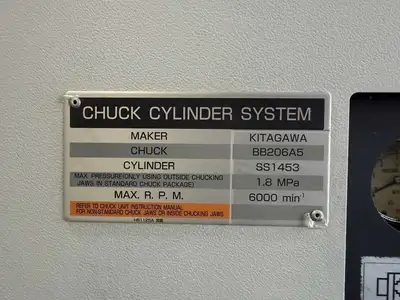

Collet Chuck on Main Spindle
Collet Chuck on Sub Spindle
Servo Controlled C Axis on Both Spindles
16 Station Live Tool Upper Turret
16 Station Live Tool Lower Turret
Y Axis on Both Turrets
Chip Blaster
Mist Blaster
Spindle Chiller Unit
High Pressure Coolant
Chip Conveyor
Foot Switches
