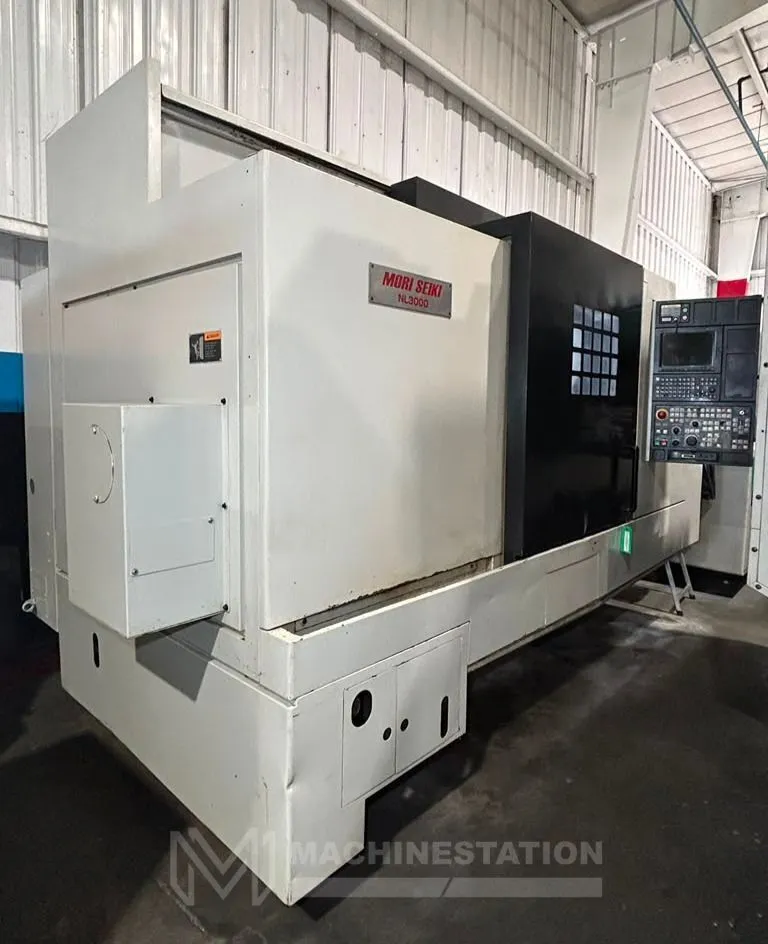

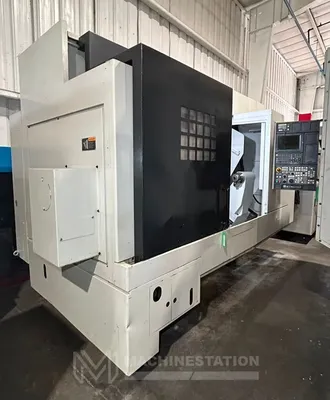

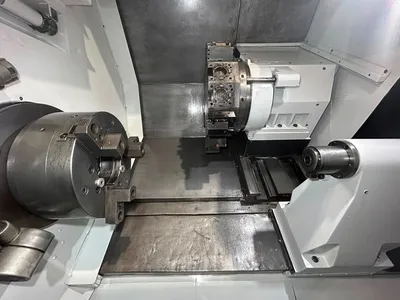

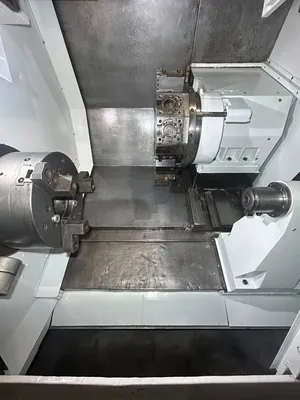

USED 2006 MORI SEIKI NL3000/700

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

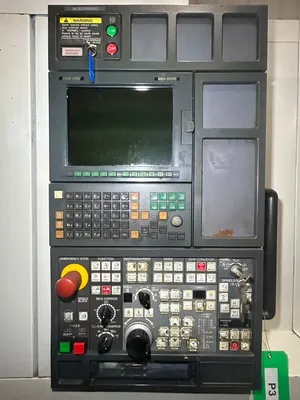

Mori Seiki MSX-850III CNC Control
10 Station Automatic Turret
30 HP Gearbox Spindle
RS-232 Port
Rigid Tapping
Coolant Tank

Capacity:
Max Turning Diameter: 16.5″
Max Turning Length: 28.0″
Swing Over Bed: 26.4″
Max Bar Capacity: 3.50″

Travel:
X Axis Travel: 11.0″
Z Axis Travel: 32.3″
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1181 IPM

Spindle:
Spindle Nose: A2-8
Spindle Bore: 4.1″
Spindle Speed: 3000 RPM
Spindle Motor: 30 HP

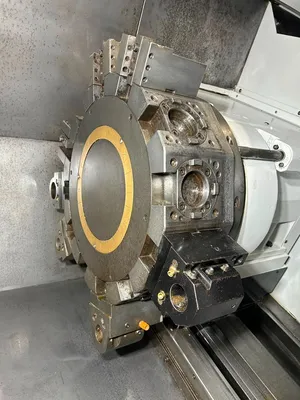

Turret:
Turret Capacity: 10 Stations
Shank Height For Square Tool: 1.0″
Shank Diameter For Boring Bar: 2.0″
Turret Index Time: 0.3 Second

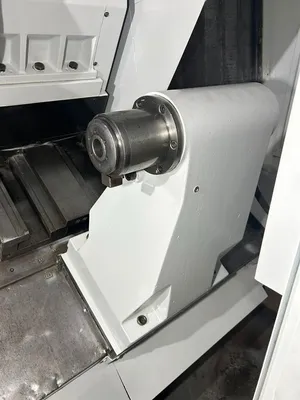

Tailstock:
Tailstock Body Travel: 28.9″
Tailstock Quill Dia.: 4.3″
Tailstock Taper: MT-4

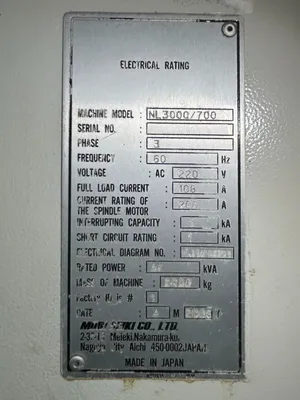

General:
Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 41 kva
Overall Dimensions: 134″ X 82″ X 89″ High
Weight : 13,200 lbs. Approx.
