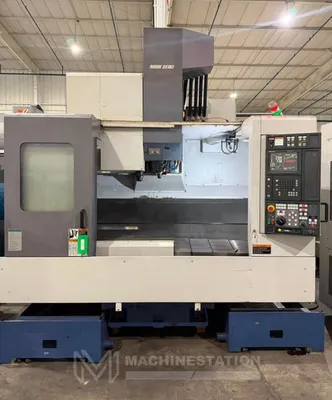

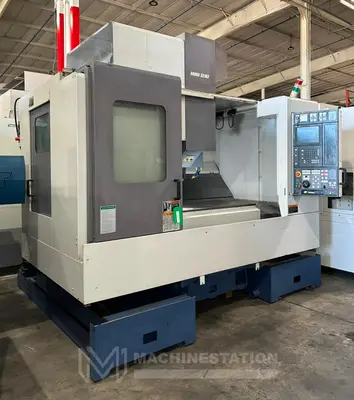

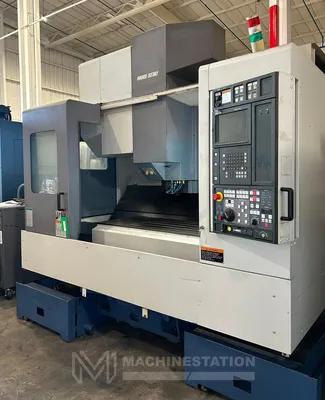

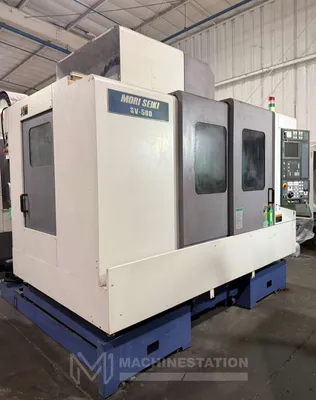

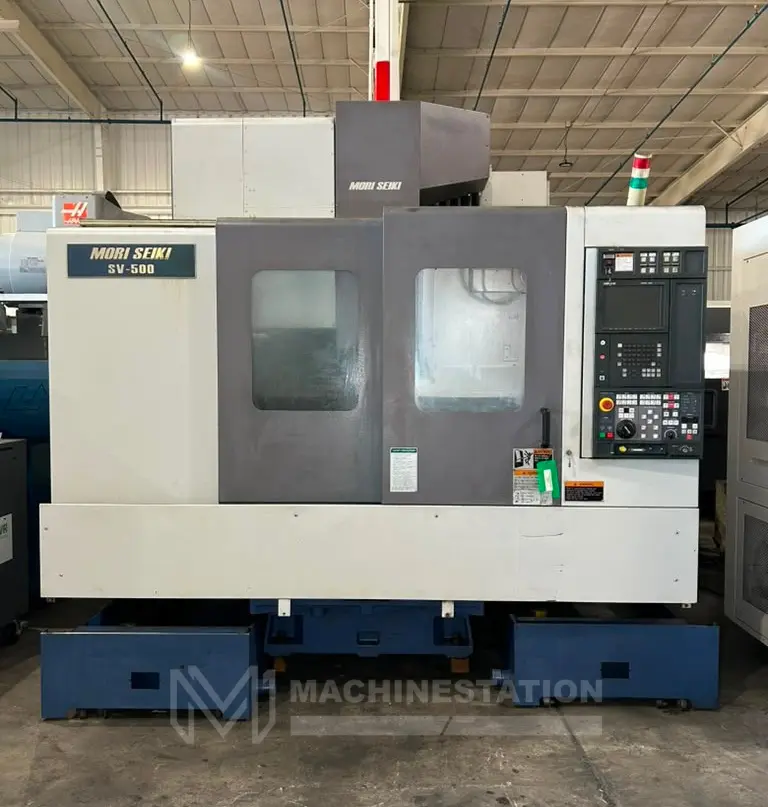

USED 1999 MORI SEIKI SV-500B/40

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

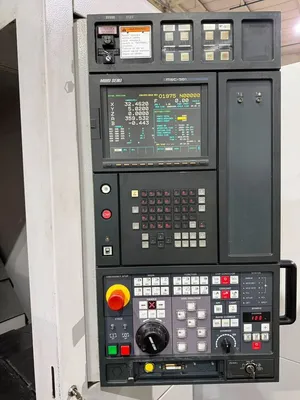

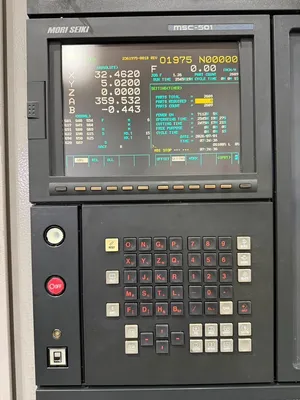

MSC 501 ( Fanuc ) CNC Control

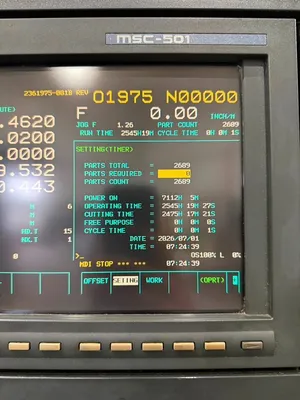

2,475 Hours Cutting Time
Spindle Orientation
Rigid Tapping

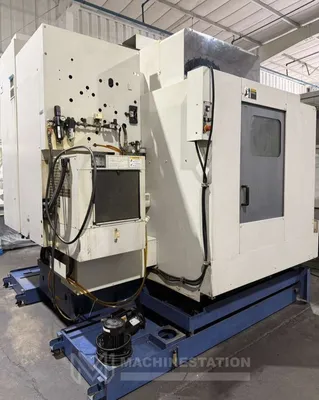

Automatic Lubrication Unit

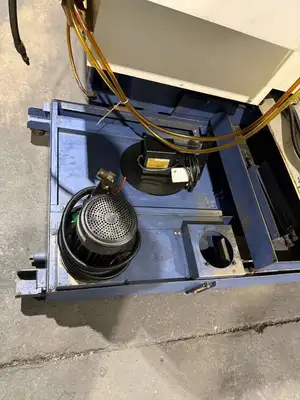

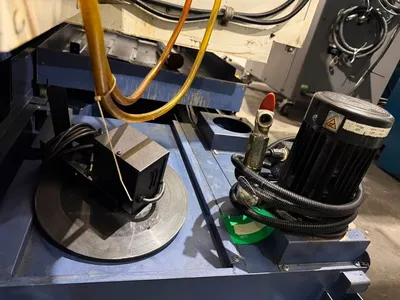

Coolant Tank

Travels:
X-Axis: 40.15″
Y-Axis: 20.07″
Z-Axis: 20.07″
Spindle Nose to Table (Min.- Max.): 5.91″ – 25.98″

Table:
Length: 51.96″
Width: 23.62″
Max Weight on Table: 2645 lbs

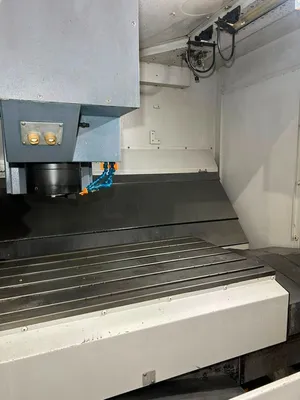

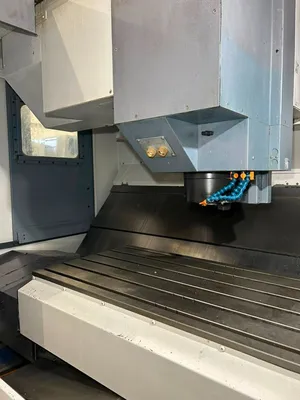

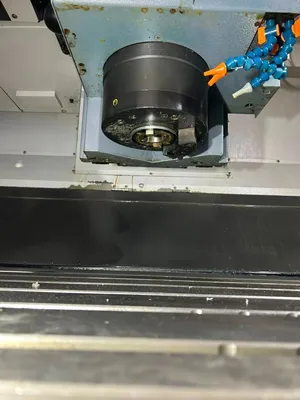

Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 30 HP

Feed Rate:
Rapid X Y & Z: 1260 inch/PM
Cutting Feed rate: 630 inch/PM

Automatic Tool Changer:
Capacity: 30 Tools
Max Tool Weight: 17.63 lbs
Max Tool Length: 11.8″
Max Tool Dia: 4.9″

General:
Air Required: 80 psi 4 scfm

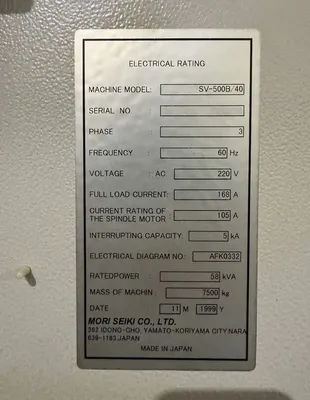

Power: 220v / 66FLA / 3-Phase / 58 kva
Overall Dimensions: 113″ L X 104″ W X 112″ High Approx.
Weight: 16,500 lbs Approx.
