| X Axis | 40.15" | 1,019.8 mm |
| Y Axis | 20.07" | 509.78 mm |
| Z Axis | 20.07" | 509.78 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 23.62" | 599.95 mm |
| Table-L | 51.96" | 1,319.8 mm |
| # Axis | 5 | 5 |
| Control | CNC (MSC 501 ( Fanuc ) CNC Control) | CNC (MSC 501 ( Fanuc ) CNC Control) |
| Dimensions | 113″ L X 104″ W X 112″ High Approx. | 113″ L X 104″ W X 112″ High Approx. |
| Weight | 16,500 lbs Approx. | 16,500 lbs Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

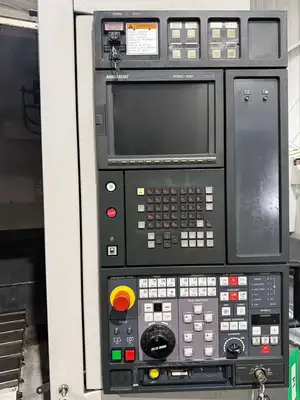

MSC 501 ( Fanuc ) CNC Control
Spindle Orientation
Rigid Tapping
Automatic Lubrication System

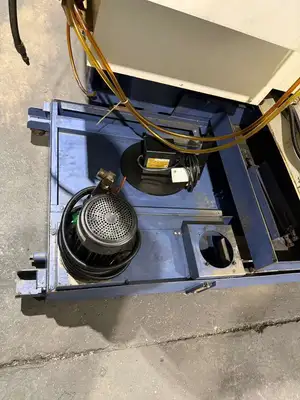

Coolant System
Travels:
X-Axis: 40.15″
Y-Axis: 20.07″
Z-Axis: 20.07″
Spindle Nose to Table (Min.- Max.): 5.91″ – 25.98″
Table:
Length: 51.96″
Width: 23.62″
Max Weight on Table: 2645 lbs
Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 30 HP
Feed Rate:
Rapid X Y & Z: 1260 inch/PM
Cutting Feed rate: 630 inch/PM
Automatic Tool Changer:
Capacity: 30 Tools
Max Tool Weight: 17.63 lbs
Max Tool Length: 11.8″
Max Tool Dia: 4.9″
General:
Air Required: 80 psi 4 scfm

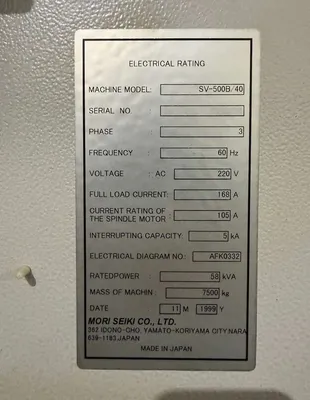

Power: 220v / 66FLA / 3-Phase / 58 kva
Overall Dimensions: 113″ L X 104″ W X 112″ High Approx.
Weight: 16,500 lbs Approx.
4th & 5th Axis Ready
CAT-40 Taper 12,000 RPM Spindle
30 Station Automatic Tool Changer
Powerful 30 HP high torque Spindle Motor

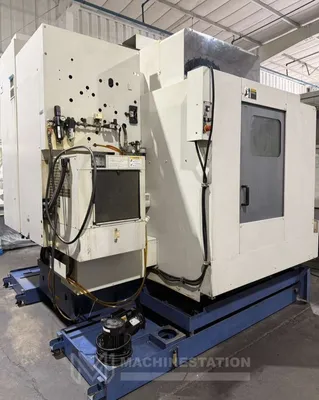

Spindle Chiller Unit
