| X Axis | 24.02" | 610.11 mm |
| Y Axis | 17.7" | 449.58 mm |
| Z Axis | 17.7" | 449.58 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 24 | 24 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 17.71" | 449.83 mm |
| Table-L | 27.5" | 698.5 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc Oi-MD) | CNC (Fanuc Oi-MD) |
| Dimensions | 82″ x 48″ x 86″ High | 82″ x 48″ x 86″ High |
| Weight | 7700 lbs | 7700 lbs |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

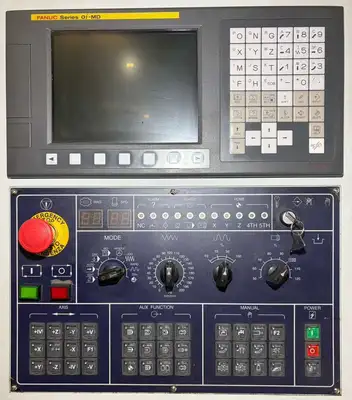

Fanuc Oi-MD CNC Control
Linear Ways Construction
MPG Handwheel Control
USB Port & PCMCIA Card Slot
Telescopic way covers
Coolant System
Travels:
X-Axis: 24.02″
Y-Axis: 17.7″
Z-Axis: 17.7″
Rapid Traverse Rates X & Y Axis: 1245 Inch Per Minute
Rapid Traverse Rates Z Axis: 960 Inch Per Minute
Cutting Feed Rates: 394 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5.91″ – 23.6″
Table:
Length: 27.5″
Width: 17.71″
Number of Std T-Slots: 4
T-Slot Width: 5/8″
Max Weight on Table: 990 lbs
Spindle:
Taper Size: CAT-40
Speed Range: 10,000 RPM
Spindle Power: 15 HP
Automatic Tool Changer:
Capacity: 24 Tools
Max Tool Weight: 15.4 lbs
Max Tool Dia: 3.14″ – 5.91″
Max Tool Length: 11.8″
General:
Air Required: 85 psi 6 scfm
Power: 220v / 50/60 Hz / 3-Phase / 20 kva
Overall Dimensions: 82″ x 48″ x 86″ High
Weight: 7,700 lbs
10,000 RPM High Speed Spindle
24 Station Automatic Tool Changer

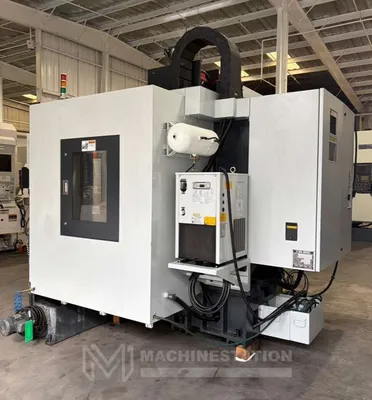

Spindle Chiller Unit
Chip Auger
