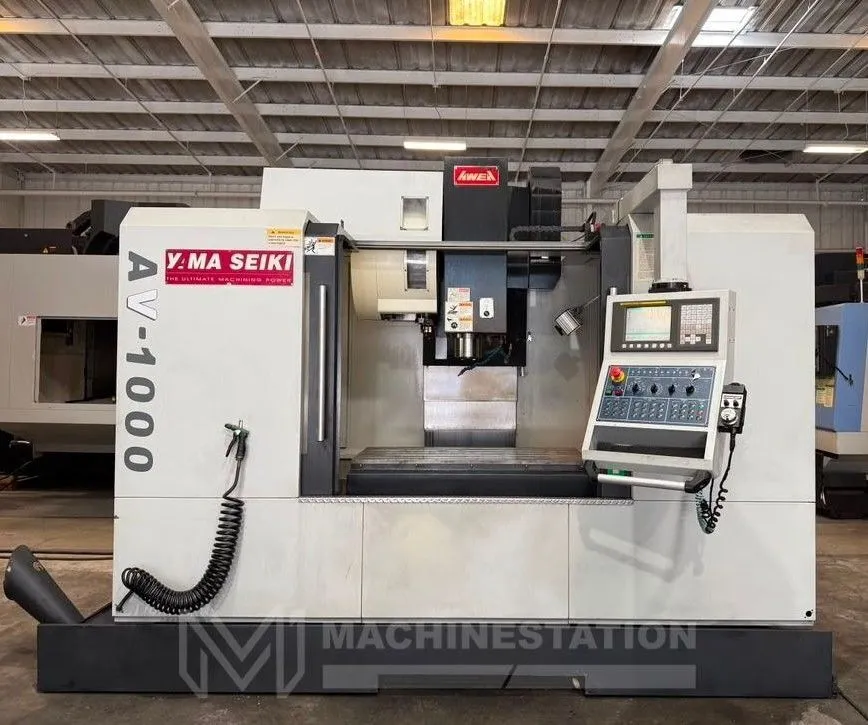

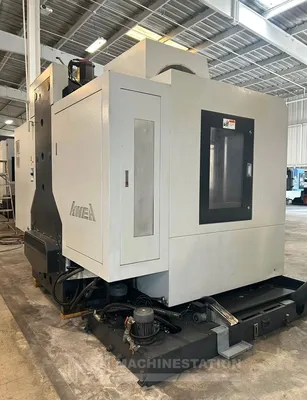

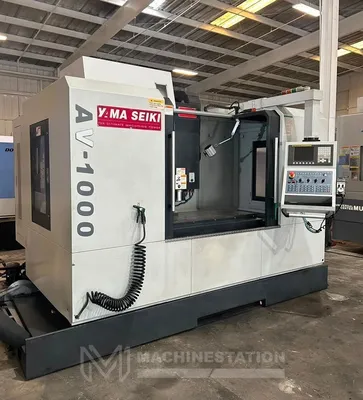

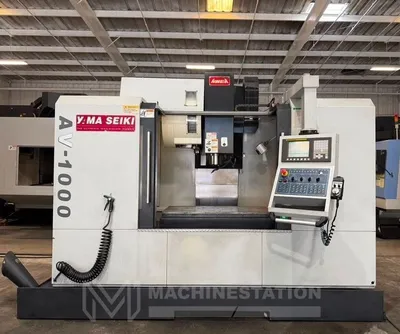

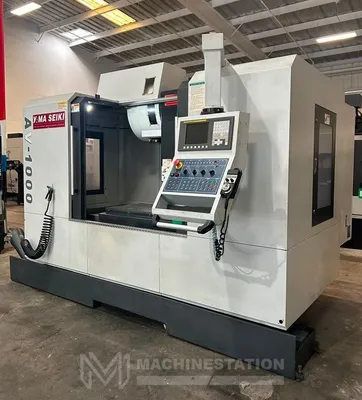

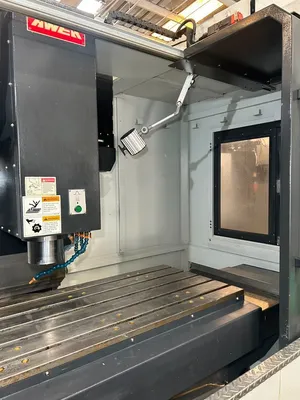

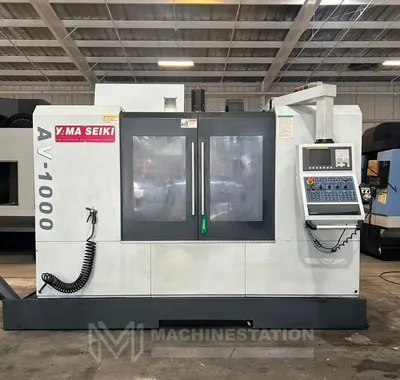

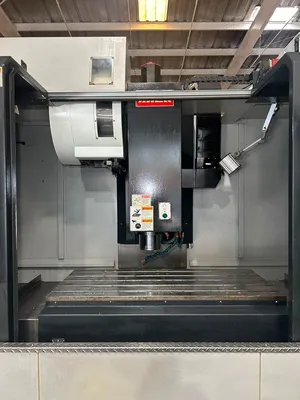

USED 2013 YAMA SEIKI AV 1000

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

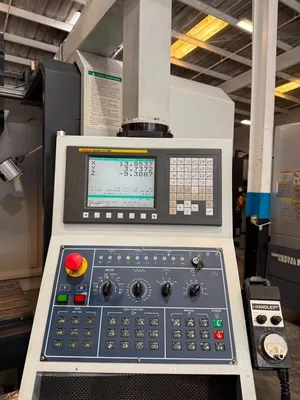

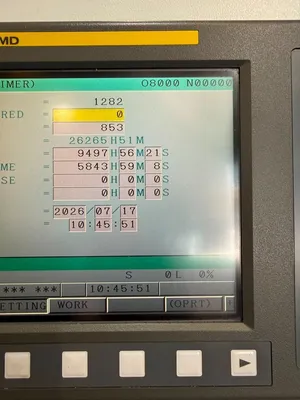

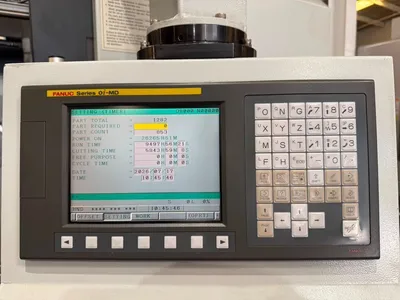

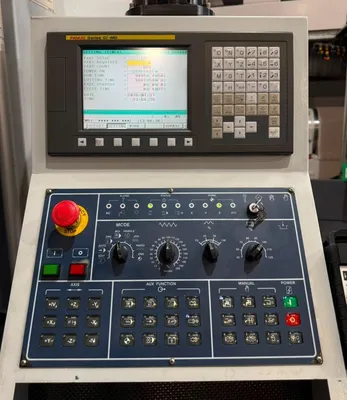

Fanuc Oi-MD CNC Control
Linear Ways Construction
USB Port & PCMCIA Card Slot
Coolant Tank

Travels:
X-Axis: 40.1″
Y-Axis: 21.6″
Z-Axis: 24.9″
Rapid Traverse Rates X & Y Axis: 1418 Inch Per Minute
Rapid Traverse Rates Z Axis: 945 Inch Per Minute
Cutting Feed Rates: 394 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 3.93″ – 28.9″

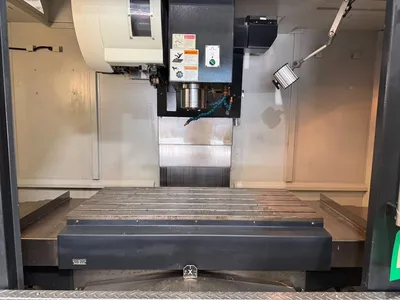

Table:
Length: 47.2″
Width: 21.6″
Number of Std T-Slots: 4
T-Slot Width: 5/8″
Max Weight on Table: 1540 lbs

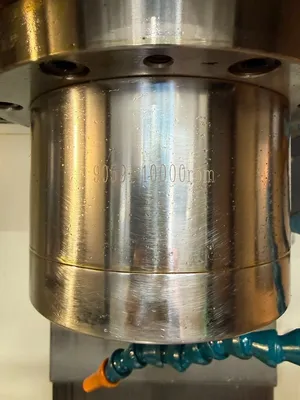

Spindle:
Taper Size: CAT-40
Speed Range: 10,000 RPM
Spindle Power: 20 HP

Automatic Tool Changer:
Capacity: 24 Tools
Max Tool Weight: 15.4 lbs
Max Tool Dia: 3.14″ – 5.91″
Max Tool Length: 11.8″

General:

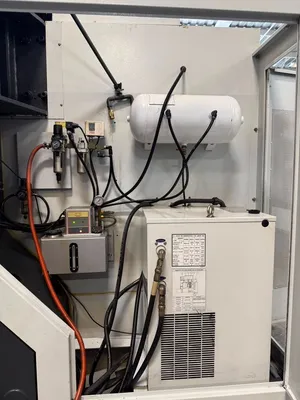

Air Required: 85 psi 6 scfm

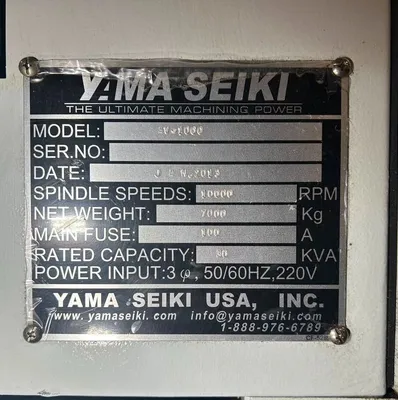

Power: 220v / 50/60 Hz / 3-Phase / 30 kva
Overall Dimensions: 123″ x 90″ x 110″ High
Weight: 15,400 lbs
