| X Axis | 40.2" | 1,021.1 mm |
| Y Axis | 21.3" | 541.02 mm |
| Z Axis | 20.1" | 510.54 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 21.3" | 541.02 mm |
| Table-L | 47.2" | 1,198.9 mm |
| # Axis | 3 | 3 |
| Control | CNC (Doosan Fanuc i-Series CNC Control) | CNC (Doosan Fanuc i-Series CNC Control) |
| Dimensions | 116″ x 96″ x 107″ High | 116″ x 96″ x 107″ High |
| Weight | 14330 lbs | 14330 lbs |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:
Doosan Fanuc i-Series CNC Control
2,302 Hours Cutting Time
CAT-40 Taper Spindle
PCMCIA Card Slot & RS-232 Port
Rigid Tapping
Coolant System
Travels:
X-Axis: 40.2″
Y-Axis: 21.3″
Z-Axis: 20.1″
Rapid Traverse Rates X & Y Axis: 1417 IPM
Rapid Traverse Rates Z Axis: 1181 IPM
Cutting Feed Rates: 590 IPM
Spindle Nose to Table (Min.- Max.): 5.9″ – 26.0
Table:
Length: 47.2″
Width: 21.3″
Number of Std T-Slots: 4
T-Slot Width: 4.9″ x 0.7″
Max Weight on Table: 1764 lbs
Spindle:

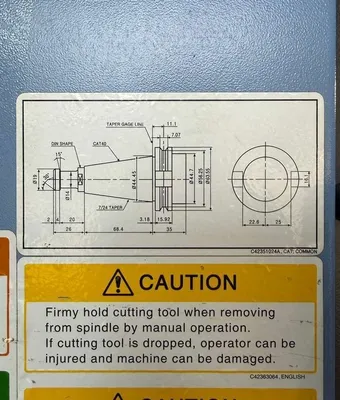

Taper Size: CAT-40
Speed Range: 8,000 RPM
Spindle Power: 25 HP
Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 17.6 lbs
Max Tool Dia: 3.1″ -4.9″
Max Tool Length: 11.81″
Tool Changing Time : 1.3 Seconds
General:
Air Required: 90 psi 4 scfm
Power: 220v / 33.50 kva / 3-Phase / 50/60 Hz
Overall Dimensions: 116″ x 96″ x 107″ High
Weight: 14330 lbs
8,000 RPM Spindle
Through Spindle Coolant
30 Station Automatic Tool changer
MPG Hand Wheel Control

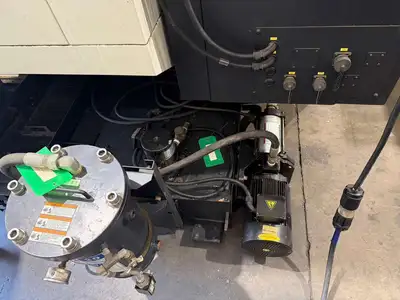

Profluid Coolant Filter System
LNS Chip Conveyor
Books & Manuals
